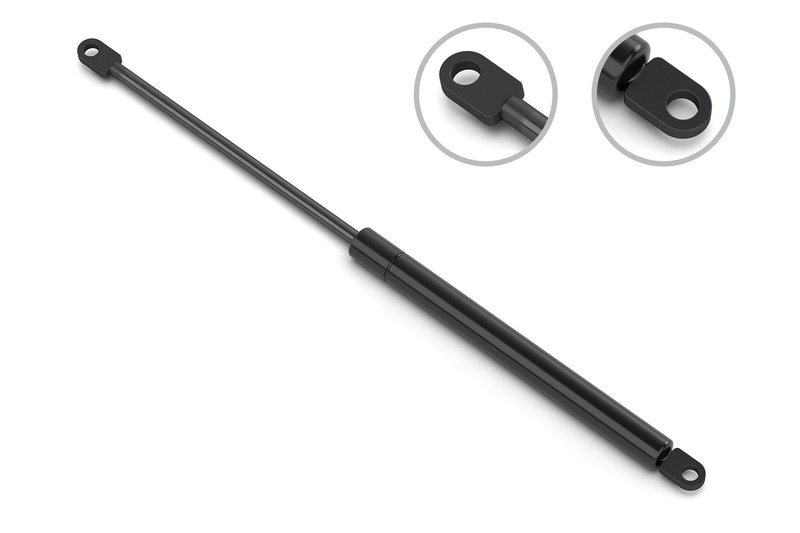

Stabilus 4B-1585BP Hood Lift Support
| Brand | Stabilus 4B-1585BP |
|---|---|
| Y | |
| Y | |
| Body | 0.591 |
| Compressed Length | 9.685 |
| Compressed Length | 246 |
| Extended Length | 16.181 |
| Extended Length | 411 |
| Force (N) | 280 |
| Force Lbs | 63 |
| Hardware Kit | NO |
| Rod Connection | METAL BLADE |
| Rod Dia (IN) | 0.236 |
| Rod Diameter | 6 |
| Rod End Attachment Dia (IN) | 0.327 |
| Rod End Attachment Dia (MM) | 8.3 |
| Shaft | 0.236 |
| Shaft Connection | METAL BLADE |
| Tube Connection | METAL BLADE |
| Tube Dia (IN) | 0.591 |
| Tube Diameter | 15 |
| Tube End Attach Dia (IN) | 0.327 |
| Tube End Attach Dia (mm) | 8.3 |
| Fits | BMW · 34 vehicles |
OE direct replacement. Restores smooth hood support with a 63 lb lift force.
Metal blade connections. Provides secure attachment at both ends for dependable operation.
Stabilus engineering delivers consistent lift and controlled closing.
Cross-references AMS Automotive 6341, Focus Auto Parts 86341 and Lesjofors 8008407 for the same application. See all 18.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Hood Lift Support for BMW Applications
The Stabilus 4B-1585BP hood lift support is a direct-fit hood strut for select BMW 3 Series and M3 models. It provides controlled hood opening and holding force for service access, with OE-style metal blade connections and application-specific dimensions.
Key Features
- Brand: Stabilus
- Part number: 4B-1585BP
- Force rating: 280 N / 63 lb
- Extended length: 411 mm (16.181 in)
- Compressed length: 246 mm (9.685 in)
- Rod diameter: 6 mm (0.236 in)
- Tube diameter: 15 mm (0.591 in)
- Rod and tube connections: metal blade
- Rod end and tube end attachment diameter: 8.3 mm (0.327 in)
Detailed Description
Built for hood support service on BMW vehicles, the Stabilus 4B-1585BP matches the length and force requirements needed to hold the hood in the open position without excessive effort. This hood lift support is listed for 1992-1999 BMW 318is, 1998-1999 BMW 323i, 1998-1999 BMW 323is, 1996-1999 BMW 328i, 1996-1999 BMW 328is, 1994-1999 BMW M3, 1994-1997 BMW 318i, and 1992-1995 BMW 325is. It is a practical replacement for worn gas struts on BMW 318i, BMW 328i, and BMW M3 hood applications, and the Stabilus 4B-1585BP cross-references Monroe Shocks & Struts 172286 for the same application.
What It Helps Fix
- Hood that drops instead of staying open
- Weak or slow hood lift action
- Uneven hood support during engine bay access
- Noise or instability from a worn lift support
- Difficulty opening or holding the hood securely
Installation Notes and Tips
Verify the existing support length, end fittings, and force rating before installation. This unit uses metal blade connections, so confirm the attachment style matches the vehicle mounting points. Replace supports in pairs when both sides show similar wear, and support the hood safely before removing the old strut.
Quality Assurance
Stabilus is a recognized OE supplier of gas springs and lift supports, and this part is built to match the specified application dimensions and force rating for consistent hood support.
| Year | Make | Model | Body Type | Position | Notes |
|---|---|---|---|---|---|
| 1999 | BMW | 318is | Coupe | N/A | — |
| 1999 | BMW | 323i | Convertible | N/A | — |
| 1999 | BMW | 323is | — | N/A | — |
| 1999 | BMW | 328i | Convertible | N/A | — |
| 1999 | BMW | 328is | — | N/A | — |
| 1999 | BMW | M3 | — | N/A | — |
| 1998 | BMW | 318is | Coupe | N/A | — |
| 1998 | BMW | 323i | — | N/A | — |
| 1998 | BMW | 323is | — | N/A | — |
| 1998 | BMW | 328i | Convertible | N/A | — |
| 1998 | BMW | 328is | — | N/A | — |
| 1998 | BMW | M3 | — | N/A | — |
| 1997 | BMW | 318i | Convertible | N/A | — |
| 1997 | BMW | 318is | Coupe | N/A | — |
| 1997 | BMW | 328i | Convertible | N/A | — |
| 1997 | BMW | 328is | — | N/A | — |
| 1997 | BMW | M3 | — | N/A | — |
| 1996 | BMW | 318i | Convertible | N/A | — |
| 1996 | BMW | 318is | Coupe | N/A | — |
| 1996 | BMW | 328i | Convertible | N/A | — |
| 1996 | BMW | 328is | — | N/A | — |
| 1996 | BMW | M3 | — | N/A | — |
| 1995 | BMW | 318i | Convertible | N/A | — |
| 1995 | BMW | 318is | Coupe | N/A | — |
| 1995 | BMW | 325is | — | N/A | — |
| 1995 | BMW | M3 | — | N/A | — |
| 1994 | BMW | 318i | Convertible | N/A | — |
| 1994 | BMW | 318is | Coupe | N/A | — |
| 1994 | BMW | 325is | — | N/A | — |
| 1994 | BMW | M3 | — | N/A | — |
| 1993 | BMW | 318is | Coupe | N/A | — |
| 1993 | BMW | 325is | — | N/A | — |
| 1992 | BMW | 318is | Coupe | N/A | — |
| 1992 | BMW | 325is | — | N/A | — |
