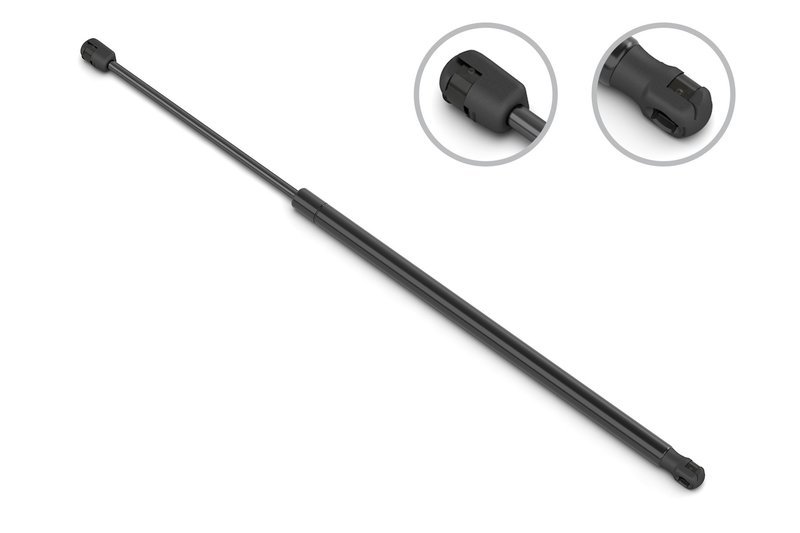

Stabilus 4B-193630 Hatch Lift Support

Overview of Stabilus 4B-193630 Gas Spring for Ford and Mercury Vehicles

The Stabilus 4B-193630 gas spring is designed for reliable performance in select Ford and Mercury models, including the Capri, Grand Marquis, LTD, and Mustang. Engineered with precise dimensions and force ratings, this gas spring ensures smooth operation and durability.

Key Features of the Stabilus 4B-193630 Gas Spring

• Compressed length: 11.437 inches (290.5 mm)
• Extended length: 19.587 inches (497.5 mm)
• Rod diameter: 8 mm (0.315 inches)
• Tube diameter: 18 mm
• Force output: 482 Newtons (108 lbs)
• Rod end attachment diameter: 10 mm (0.394 inches)
• Rod connection and shaft connection use plastic sockets for secure fitment
• Body diameter: 0.709 inches

Detailed Description and Specifications

This Stabilus gas spring, part number 4B-193630, is engineered to provide consistent force and smooth motion for automotive applications. With a compressed length of 11.437 inches and an extended length of 19.587 inches, it offers a stroke length suitable for various hood, trunk, or hatch support needs. The rod diameter of 8 mm and tube diameter of 18 mm provide a balance of strength and compact design. The gas spring delivers a force of 482 Newtons (108 lbs), making it appropriate for medium-duty lifting and support tasks. The plastic socket rod and shaft connections ensure secure attachment while minimizing wear. This gas spring is not designed for agricultural, heavy truck, marine, or industrial off-highway use, focusing instead on passenger vehicle applications.

Compatible Vehicles and Common Applications

• Ford Capri gas spring replacement
• Mercury Grand Marquis hood or trunk support
• Ford LTD lift support applications
• Mustang gas spring for hatch or trunk
• General gas spring replacement for specified Ford and Mercury models

Installation Notes and Tips

• Verify the part number 4B-193630 matches your vehicle’s specifications before installation
• Ensure the gas spring is installed with the rod end attached to the moving component for optimal performance
• Use appropriate tools to avoid damage to the plastic socket connections during installation
• Check for smooth operation after installation and confirm proper alignment

Quality Assurance and Warranty Information

Stabilus is a recognized manufacturer of gas springs with a focus on quality and durability. While specific warranty details for part number 4B-193630 may vary, Stabilus products typically come with manufacturer-backed warranties covering defects in materials and workmanship. For precise warranty information, consult the product documentation or manufacturer resources.
