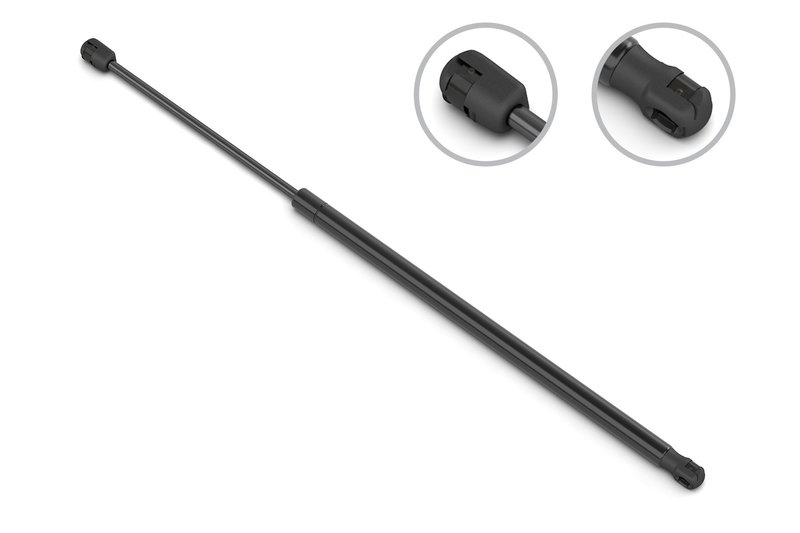

Stabilus 4B-206297 Hood Lift Support
| Brand | Stabilus 4B-206297 |
|---|---|
| Y | |
| Y | |
| Body | 0.866 |
| Compressed Length | 14.862 |
| Compressed Length | 377.5 |
| Extended Length | 21.772 |
| Extended Length | 553 |
| Force (N) | 885 |
| Force Lbs | 199 |
| Hardware Kit | NO |
| Rod Connection | PLASTIC SOCKET |
| Rod Dia (IN) | 0.394 |
| Rod Diameter | 10 |
| Rod End Attachment Dia (IN) | 0.394 |
| Rod End Attachment Dia (MM) | 10 |
| Shaft | 0.394 |
| Shaft Connection | PLASTIC SOCKET |
| Tube Connection | PLASTIC SOCKET |
| Tube Dia (IN) | 0.866 |
| Tube Diameter | 22 |
| Tube End Attach Dia (IN) | 0.394 |
| Tube End Attach Dia (mm) | 10 |
| Fits | Chevrolet and Pontiac · 3 vehicles |
OE-style replacement. Hood lift support with plastic socket connections for straightforward installation.
Gas-charged support. Delivers 199 lb of force for smooth, controlled hood movement.
Compact design. 14.862 in compressed length and 21.772 in extended length.
Cross-references AMS Automotive 4152, AMS Automotive 6315 and Dorman - First Stop C95443 for the same application. See all 31.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Hood Lift Support for GM Applications
The Stabilus 4B-206297 hood lift support is built for controlled hood opening and steady hold performance on select Chevrolet and Pontiac vehicles. With a 199 lb force rating and plastic socket end connections, it is a direct-fit style replacement for applications that need consistent hood support.
Fits 2005 Chevrolet Monte Carlo, 2nd design. Fits 2004-2005 Pontiac Grand Prix, 1st design. This Stabilus 4B-206297 hood strut is a fitment-specific solution for these body applications.
Key Features
- Brand: Stabilus
- Part number: 4B-206297
- Category: Body > Hood
- Part type: Hood Lift Support
- Force rating: 885 N / 199 lb
- Compressed length: 14.862 in. (377.5 mm)
- Extended length: 21.772 in. (553 mm)
- Rod diameter: 0.394 in. (10 mm)
- Tube diameter: 0.866 in. (22 mm)
- Rod connection: Plastic socket
- Tube connection: Plastic socket
Detailed Description
The Stabilus 4B-206297 is a hood lift support engineered for specific GM body fitments, including the 2005 Chevrolet Monte Carlo 2nd design and the 2004-2005 Pontiac Grand Prix 1st design. Its 885 N force rating helps maintain hood position during service, while the measured compressed and extended lengths support proper geometry for the listed applications. This part cross-references Dorman - First Stop C95443 for the same application.
Common Problems It Can Help Solve
- Hood that drops instead of staying open
- Weak or inconsistent hood hold-up force
- Slow hood lift after release
- Noise or binding from a worn lift support
- Difficulty accessing the engine bay during routine service
Installation Notes and Tips
Verify the vehicle’s design revision before ordering, since this part is listed for the 2nd design 2005 Chevrolet Monte Carlo and the 1st design 2004-2005 Pontiac Grand Prix. Compare the existing support’s compressed length, extended length, and end connection style to confirm match before installation. Replace supports in a controlled manner to avoid hood movement during service.
Quality Assurance
Stabilus is a recognized OE supplier in gas spring and lift support applications, and this hood support is built to match the listed fitment and force specifications for the intended vehicles.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2005 | Chevrolet | Monte Carlo | N/A | 2nd design |
| 2005 | Pontiac | Grand Prix | N/A | 1st design |
| 2004 | Pontiac | Grand Prix | N/A | 1st design |
