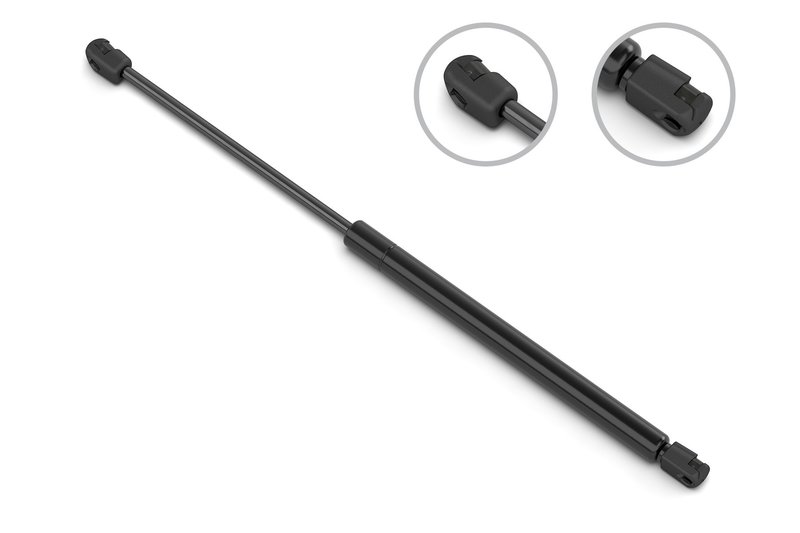

Stabilus 4B-206775 Back Glass Lift Support
| Brand | Stabilus 4B-206775 |
|---|---|
| 0.315 | Y |
| Compressed Length | 11.555 |
| Compressed Length | 293.5 |
| Thread Direction | Y |
| Rod Diameter | 8 |
| Tube Diameter | 19 |
| Extended Length | 19.055 |
| Extended Length | 484 |
| Agricultural Equipment | N |
| Body | 0.748 |
| Engine Specific | N |
| Force (N) | 116 |
| Force Lbs | 26 |
| Hardware Kit | No |
| Heavy Truck | N |
| High Performance | N |
| IndustrialOff Highway | N |
| Marine | N |
| Medium Truck | N |
| MotorCycleRV | N |
| NonVehicle Specific | N |
| Personal Watercraft | N |
| Rod Connection | Plastic socket |
| Rod Dia (IN) | 0.315 |
| Rod End Attachment Dia (IN) | 0.394 |
| Rod End Attachment Dia (MM) | 10 |
| Shaft | 0.315 |
| Shaft Connection | Plastic socket |
| Small Engine | N |
| Snowmobile | N |
| Fits | Mercury and Nissan · 8 vehicles |
OE-style replacement. Restores smooth glass lift support operation with a direct-fit design.
Plastic socket ends. Simplify attachment with a secure, serviceable connection.
Stabilus engineering. Built with a 116 N force rating for consistent support.
Cross-references AMS Automotive 4356, Focus Auto Parts 84356 and Stabilus 4B-206775 for the same application. See all 18.
Back Glass Lift Support for Quest and Villager
This Stabilus back glass lift support is built for the rear glass on compatible Mercury Villager and Nissan Quest models. It provides controlled lift and hold for the back glass, helping restore normal operation when the original support loses pressure.
Key Features
- Brand: Stabilus
- Part number: 4B-206775
- Category: Body > Glass, Windows and Related Components
- Back glass lift support for rear hatch glass applications
- Compressed length: 11.555 in. (293.5 mm)
- Extended length: 19.055 in. (484 mm)
- Force rating: 116 N / 26 lb
- Rod diameter: 8 mm
- Tube diameter: 19 mm
- Plastic socket rod, shaft, and tube connections
Detailed Description
Stabilus 4B-206775 is a back glass lift support engineered for rear glass lift applications on 1999-2002 Mercury Villager and 1999-2002 Nissan Quest. The unit measures 11.555 inches compressed and 19.055 inches extended, with a 116 N (26 lb) force rating to help raise and hold the back glass in place. Plastic socket connections on the rod, shaft, and tube ends support a direct-fit style replacement for the original support.
This part cross-references AMS Automotive 4356 and Tuff Support 612805 for the same application. If you are replacing a worn rear glass strut on a Nissan Quest or Mercury Villager, 4B-206775 is the OE-style lift support to match the listed fitment.
What It Helps Fix
- Back glass that drops instead of staying open
- Rear hatch glass that feels heavy to lift
- Weak or slow lift support action
- Noise or uneven movement when opening the rear glass
- Loss of holding force in the rear window support
Installation Notes and Tips
Verify the compressed length, extended length, and end connection style before installation. Compare the existing support to 4B-206775 to confirm the plastic socket attachment points and force rating match the vehicle’s rear glass hardware. Replace supports in a controlled manner and support the glass during removal and installation.
Compatible With 1999-2002 Mercury Villager and 1999-2002 Nissan Quest rear glass applications. Fits 1999-2002 Mercury Villager, N/A, and fits 1999-2002 Nissan Quest, N/A.
Quality Assurance
Stabilus is a recognized OE supplier in gas spring and lift support applications, and this part is built to match the listed dimensions and force specification for the stated vehicles.
| Year | Make | Model | Notes |
|---|---|---|---|
| 2002 | Mercury | Villager | — |
| 2002 | Nissan | Quest | — |
| 2001 | Mercury | Villager | — |
| 2001 | Nissan | Quest | — |
| 2000 | Mercury | Villager | — |
| 2000 | Nissan | Quest | — |
| 1999 | Mercury | Villager | — |
| 1999 | Nissan | Quest | — |
| No rows match your filter. | |||
