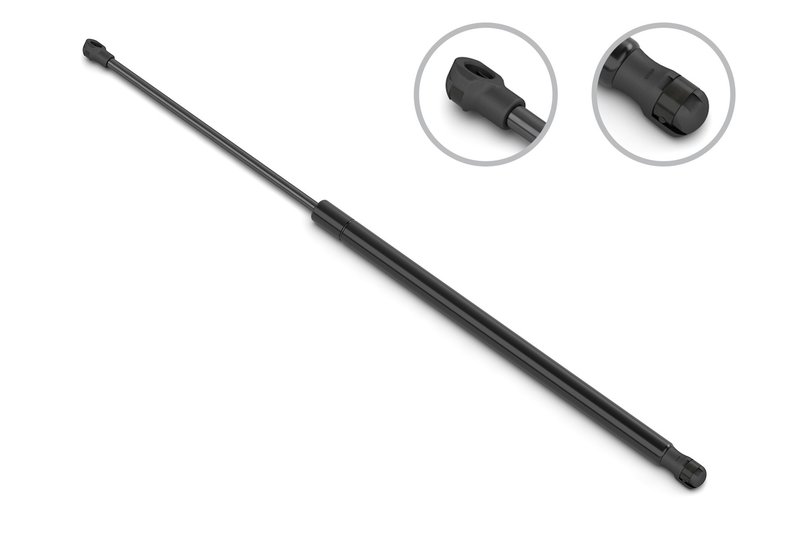

Stabilus 4B-218929 Hatch Lift Support

Overview of Stabilus Gas Spring for Toyota Venza

The Stabilus gas spring part number 4B-218929 is engineered to provide reliable support and smooth operation for your Toyota Venza. Designed with precise dimensions and force specifications, this gas spring ensures consistent performance in vehicle applications requiring controlled motion.

• Compressed length: 12.323 inches (313 mm)
• Extended length: 19.764 inches (502 mm)
• Rod diameter: 10 mm (0.394 inches)
• Tube diameter: 22 mm
• Force: 590 Newtons (133 lbs)
• Rod connection type: Plastic socket
• Compatible specifically with Toyota Venza models

Technical Specifications and Features

This Stabilus gas spring features a robust 10 mm rod diameter and a 22 mm tube diameter, providing a balance of strength and smooth operation. The compressed length measures 12.323 inches (313 mm), extending to 19.764 inches (502 mm) when fully deployed. With a force rating of 590 Newtons (133 lbs), it offers consistent support for applications such as hatchbacks, tailgates, or lift supports on the Toyota Venza. The rod connection utilizes a plastic socket, ensuring secure attachment and ease of installation.

Applications and Problem Solving

This gas spring is designed for use in Toyota Venza vehicles, particularly where controlled lifting and support are required. It addresses common issues such as:

• Difficulty in opening or holding open tailgates or liftgates
• Uneven or jerky motion during hatch operation
• Wear or failure of original gas springs causing instability
• Need for precise force control to prevent damage to vehicle components

Installation Notes and Tips

When installing the Stabilus 4B-218929 gas spring on a Toyota Venza, ensure the following:

• Verify the orientation of the rod and tube to match OEM specifications
• Use appropriate tools to avoid damage to the plastic socket rod connection
• Check that the compressed and extended lengths correspond to the vehicle’s requirements
• Confirm the force rating is suitable for the specific application on the Venza

Quality Assurance and Warranty

Stabilus is a recognized manufacturer of gas springs with a focus on durability and precision engineering. While specific warranty details for part number 4B-218929 should be confirmed at the point of purchase, Stabilus products typically undergo rigorous quality control to meet automotive standards. This gas spring is manufactured to provide consistent performance and longevity in Toyota Venza applications.
