OE Quality
60-Day Returns

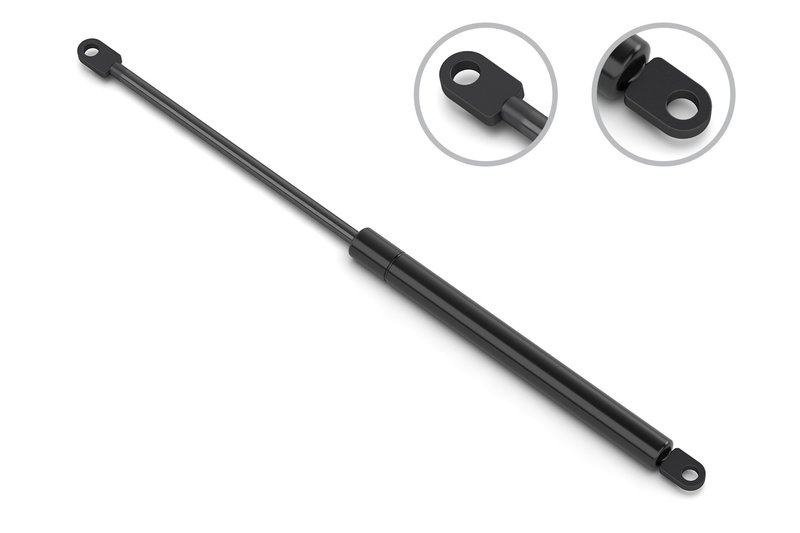

Stabilus 4B-222071
Stabilus 4B-222071 Gas Spring for Nissan 510
Stabilus 4B-222071 is a gas spring with a 255 N (57 lb) force rating, built with metal blade connections at both ends for a direct OE-style replacement. It measures 13.799 in. compressed and 22.441 in. extended, with an 8 mm rod diameter and 18 mm tube diameter.
Key Features
- Brand: Stabilus
- Part number: 4B-222071
- Force rating: 255 N / 57 lb
- Compressed length: 13.799 in. (350.5 mm)
- Extended length: 22.441 in. (570 mm)
- Rod diameter: 0.315 in. (8 mm)
- Tube diameter: 0.709 in. (18 mm)
- Metal blade rod and tube connections
- Fits 1978-1981 Nissan 510
Detailed Description
This Stabilus gas spring, part number 4B-222071, is specified for 1978-1981 Nissan 510 applications. The 255 N force rating and matched compressed and extended lengths help support the original lift or hold-open function where the factory strut was used. The metal blade attachment style on both ends supports a direct replacement setup for Nissan 510 hatch, panel, or access-panel applications that use this configuration.
For buyers searching for a Nissan 510 lift support, hatch strut, or OE replacement gas spring, 4B-222071 provides the key dimensions needed for fitment verification before ordering. This part cross-references Dorman - First Stop C95034 for the same application.
What It Helps Solve
- Weak or failing lift support that no longer holds a panel open
- Slow or uneven opening of a rear hatch or access panel
- Loss of support force from an aging gas strut
- Replacement needs for a 1978-1981 Nissan 510 gas spring
- Fitment matching for a metal blade-to-metal blade strut layout
Installation Notes and Tips
Verify the compressed length, extended length, rod diameter, tube diameter, and end attachment style against the original part before installation. Confirm that the vehicle uses metal blade connections and compare the mounting points on the 1978-1981 Nissan 510 to ensure proper alignment. If the original support has lost pressure, replace it with the correct force rating to restore normal operation.
Quality Assurance
Stabilus is a recognized gas spring manufacturer, and this part is built to the listed OE-style dimensions and force specification for the confirmed Nissan 510 fitment.
| Brand | Stabilus |
|---|---|
| Part Number | 4B-222071 |
| 0.315 | Y |
| Compressed Length | 13.799 |
| Compressed Length | 350.5 |
| Rod Diameter | 8 |
| 13.799 | Y |
| Tube Diameter | 18 |
| Extended Length | 22.441 |
| Extended Length | 570 |
| Agricultural Equipment | N |
| Body | 0.709 |
| Engine Specific | N |
| Force (N) | 255 |
| Force Lbs | 57 |
| Hardware Kit | No |
| Heavy Truck | N |
| High Performance | N |
| IndustrialOff Highway | N |
| Marine | N |
| Medium Truck | N |
| MotorCycleRV | N |
| NonVehicle Specific | N |
| Personal Watercraft | N |
| Rod Connection | Metal blade |
| Rod Dia (IN) | 0.315 |
| Rod End Attachment Dia (IN) | 0.402 |
| Rod End Attachment Dia (MM) | 10.2 |
| Shaft | 0.315 |
| Shaft Connection | Metal blade |
| Small Engine | N |
| Snowmobile | N |
This part fits 4 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1981 | Nissan | 510 | N/A | |
| 1980 | Nissan | 510 | N/A | |
| 1979 | Nissan | 510 | N/A | |
| 1978 | Nissan | 510 | N/A |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
