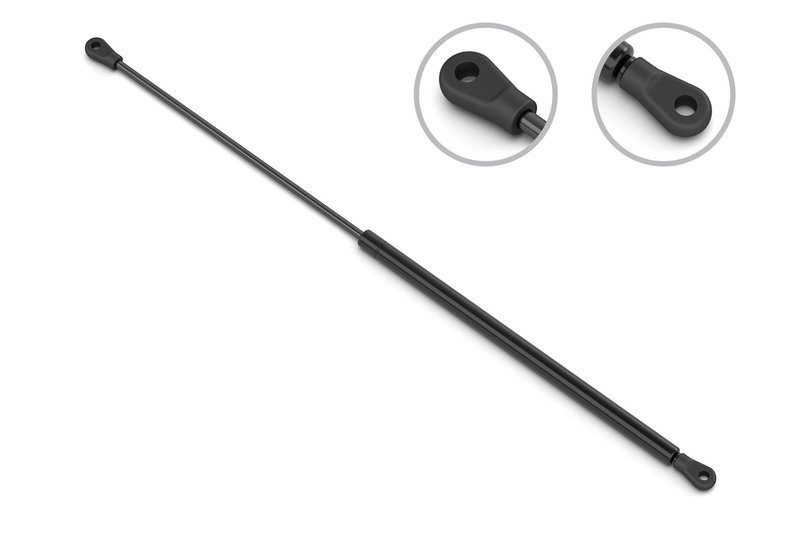

Stabilus 4B-2308BA Hood Lift Support

Overview of Stabilus Hood Lift Support 4B-2308BA

The Stabilus hood lift support 4B-2308BA is designed specifically for Jaguar XJS models, providing reliable and consistent hood support. Engineered to precise specifications, this hood lift support ensures smooth operation and secure hood positioning.

• Compatible with Jaguar XJS vehicles
• Compressed length: 12.067 inches (306.5 mm)
• Extended length: 19.961 inches (507 mm)
• Rod diameter: 8 mm (0.315 inches)
• Tube diameter: 19 mm
• Force rating: 210 Newtons (47 lbs)
• Rod connection type: Plastic eyelet

Technical Details and Specifications

The Stabilus 4B-2308BA hood lift support features a compressed length of 12.067 inches (306.5 mm) and extends up to 19.961 inches (507 mm), providing ample range for hood movement on Jaguar XJS models. The rod diameter measures 8 mm (0.315 inches), while the tube diameter is 19 mm, ensuring durability and proper fitment. With a force rating of 210 Newtons (47 lbs), this lift support offers consistent lifting power to hold the hood securely in place. The rod end attachment uses a plastic eyelet connection, designed for easy installation and reliable performance.

Applications and Problem Solving

This hood lift support is intended for use on Jaguar XJS vehicles to maintain proper hood positioning and ease of access. It addresses common issues such as:

• Difficulty holding the hood open safely
• Worn or weak original hood supports
• Hood vibration or rattling during driving
• Uneven or jerky hood movement
• Corrosion or damage to existing lift supports

Installation Notes and Tips

Installation of the Stabilus 4B-2308BA hood lift support requires matching the compressed and extended lengths to the original equipment specifications for Jaguar XJS models. The plastic eyelet rod connection allows for straightforward attachment to existing mounting points. It is recommended to verify the orientation and secure all fasteners properly to ensure safe operation. No additional hardware kit is included, so retain original mounting components during replacement.

Quality Assurance and Warranty

Stabilus is a recognized manufacturer of automotive lift supports, known for precision engineering and quality materials. While specific warranty details for part number 4B-2308BA are not provided, Stabilus products typically meet or exceed OEM standards for durability and performance. This hood lift support is manufactured to provide consistent force and reliable operation throughout its service life.
