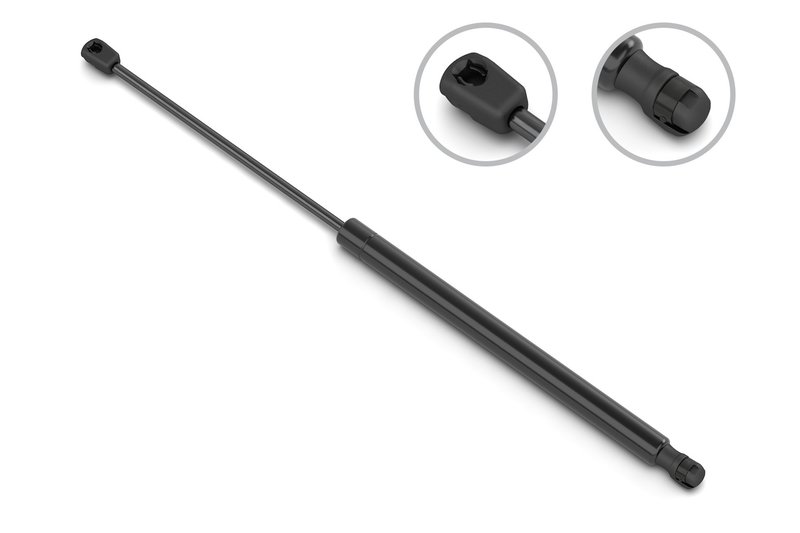

Stabilus 4B-241395 Back Glass Lift Support

Overview of Stabilus Back Glass Lift Support for Honda Pilot

The Stabilus 4B-241395 Back Glass Lift Support is designed specifically for Honda Pilot models, providing reliable support for the rear window lift. Engineered to precise specifications, this lift support ensures smooth and controlled operation of the back glass, enhancing vehicle functionality and safety.

• Compatible with Honda Pilot models
• Part number: 4B-241395
• Compressed length: 10.827 inches (275 mm)
• Extended length: 17.874 inches (454 mm)
• Rod diameter: 8 mm (0.315 inches)
• Tube diameter: 18 mm
• Force rating: 135 N (30 lbs)
• Rod connection and shaft connection use durable plastic sockets
• No hardware kit included

Technical Specifications and Features

This Stabilus back glass lift support features a compressed length of 10.827 inches (275 mm) and extends up to 17.874 inches (454 mm), providing the necessary range of motion for the Honda Pilot’s rear window. The rod diameter measures 8 mm (0.315 inches), while the tube diameter is 18 mm, ensuring a robust and stable structure. The lift support exerts a force of 135 Newtons (30 pounds), offering consistent assistance when opening or holding the back glass in place. Both the rod and shaft connections utilize plastic sockets for secure attachment and smooth operation.

Purpose and Common Applications

• Supports the rear lift glass on Honda Pilot vehicles
• Replaces worn or damaged back glass lift supports
• Prevents sudden closing or slamming of the rear window
• Maintains proper tension and smooth lift operation
• Enhances safety by stabilizing the back glass during use

Installation Notes and Tips

Installation of the Stabilus 4B-241395 lift support requires removal of the old or faulty lift support from the rear glass assembly. Ensure the plastic socket connections are properly seated on both ends to avoid detachment during operation. No additional hardware kit is included, so retain existing mounting components or source compatible fasteners if needed. Verify the compressed and extended lengths match the original part to ensure proper fitment on the Honda Pilot.

Quality Assurance and Warranty

Stabilus is a recognized manufacturer of automotive lift supports, known for precision engineering and durability. This back glass lift support is manufactured to meet OEM specifications for the Honda Pilot. While no specific warranty details are provided here, Stabilus products typically come with manufacturer-backed quality assurance. Confirm warranty terms with the product documentation or supplier.
