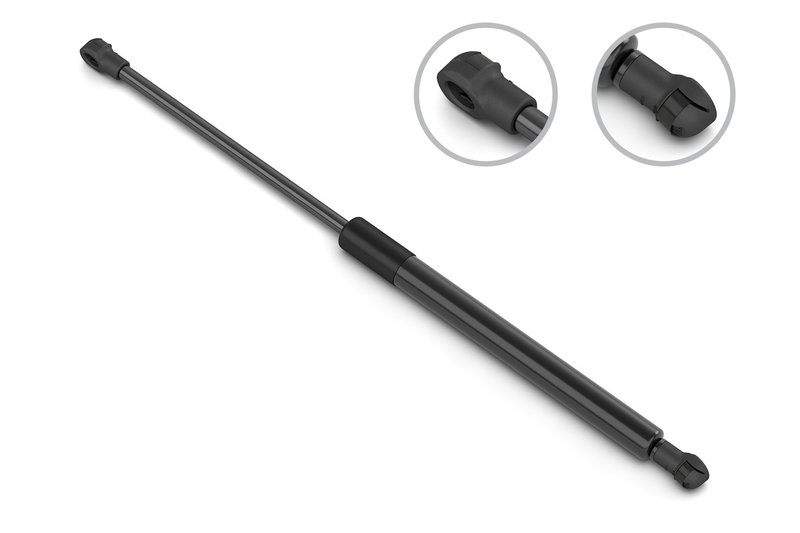

Stabilus 4B-245006 Hatch Lift Support

Overview of Stabilus 4B-245006 Gas Spring for Toyota C-HR

The Stabilus 4B-245006 gas spring is engineered for precise fitment with the Toyota C-HR. Designed to provide reliable support and smooth operation, this gas spring features specific dimensions and force ratings to meet the vehicle's requirements.

• Compressed length: 12.598 inches (320 mm)
• Extended length: 21.122 inches (536.5 mm)
• Rod diameter: 8 mm (0.315 inches)
• Tube diameter: 18 mm
• Force: 470 Newtons (106 lbs)
• Rod connection type: Plastic socket
• Rod end attachment diameter: 10 mm (0.394 inches)

Technical Specifications and Features

The Stabilus 4B-245006 gas spring is constructed with a 0.709 inch body diameter and a rod diameter of 8 mm, providing a balance of strength and compactness. The plastic socket rod connection ensures secure attachment while allowing smooth articulation. With a force rating of 470 N (106 lbs), this gas spring delivers consistent support for applications requiring controlled motion and damping.

Compatible Applications for Toyota C-HR

This gas spring is specifically compatible with the Toyota C-HR model, ensuring proper fit and function. It is not designed for agricultural equipment, heavy trucks, motorcycles, or marine use. The part number 4B-245006 corresponds directly to this application, making it a suitable replacement or upgrade for the Toyota C-HR gas spring needs.

• Supports hood or trunk lift assistance
• Replaces worn or damaged gas springs in Toyota C-HR
• Improves smoothness of opening and closing motions
• Maintains proper tension and positioning of vehicle components

Installation Notes and Tips

When installing the Stabilus 4B-245006 gas spring on a Toyota C-HR, ensure the rod end attachment aligns correctly with the mounting points. The plastic socket connection should snap securely into place without forcing. Verify the compressed and extended lengths match the original specifications to maintain proper operation. Use appropriate tools to avoid damage to the gas spring or vehicle components during installation.

Quality Assurance and Warranty

Stabilus gas springs are manufactured to meet industry standards for durability and performance. While specific warranty details for part number 4B-245006 are not provided here, Stabilus products typically come with manufacturer-backed quality assurance. It is recommended to consult the product documentation or manufacturer for warranty terms related to this gas spring.
