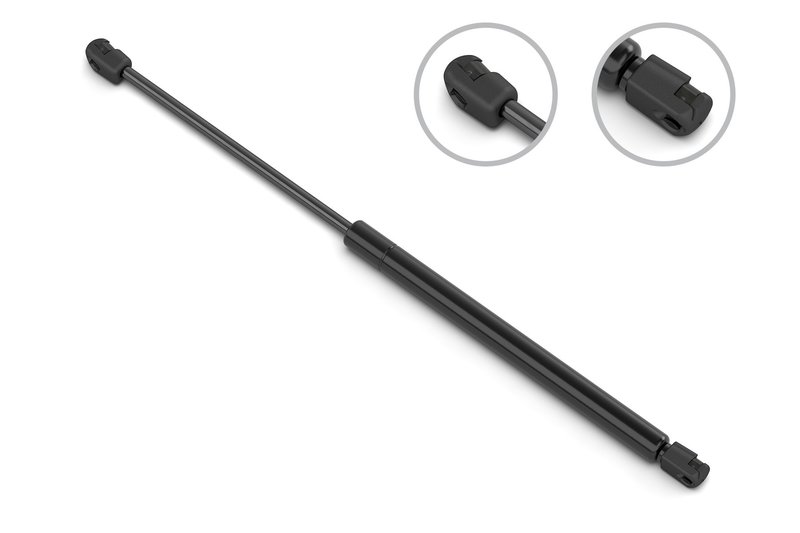

Stabilus 4B-255770 Hood Lift Support

Reliable Hood Lift Support for Ford Excursion and Super Duty Trucks

The Stabilus 4B-255770 Hood Lift Support is engineered to provide consistent and smooth hood operation for Ford Excursion, F-250, F-250 Super Duty, F-350, and F-350 Super Duty models. Designed with precise dimensions and durable materials, this hood lift support ensures safe and controlled hood lifting and holding.

• Compatible with Ford Excursion, F-250, F-250 Super Duty, F-350, and F-350 Super Duty
• Compressed length: 10.925 inches (277.5 mm)
• Extended length: 17.323 inches (440 mm)
• Rod diameter: 8 mm (0.315 inches)
• Tube diameter: 18 mm
• Force rating: 400 N (90 lbs)
• Rod connection and shaft connection use plastic sockets for secure attachment

Technical Specifications and Design Details

The Stabilus 4B-255770 hood lift support features a compressed length of 10.925 inches and extends up to 17.323 inches, providing ample range for hood movement on compatible Ford trucks. The rod diameter measures 8 mm, while the tube diameter is 18 mm, ensuring a robust structure capable of handling the hood's weight. With a force rating of 400 Newtons (90 pounds), this gas spring offers reliable support and smooth operation. The rod and shaft connections utilize plastic sockets, which provide secure and stable attachment points without metal-to-metal contact, reducing wear and noise.

Applications and Problem Solving

• Supports the hood during maintenance and inspection on Ford Excursion and Super Duty trucks
• Prevents sudden hood drops that can cause injury or damage
• Replaces worn or failing hood lift supports to restore proper hood function
• Eliminates difficulty in lifting heavy hoods on F-250 and F-350 models
• Ensures consistent hood positioning for safer engine access

Installation Notes and Tips

Installation of the Stabilus 4B-255770 hood lift support requires matching the compressed and extended lengths to the original equipment specifications. Ensure the plastic socket connections are properly seated on the hood and frame mounting points. It is recommended to replace lift supports in pairs to maintain balanced hood operation. Use appropriate tools to avoid damage to the rod or tube during installation.

Quality Assurance and Warranty

Stabilus is a recognized manufacturer of gas springs and lift supports, known for precision engineering and durability. While specific warranty details for part number 4B-255770 may vary, Stabilus products typically come with manufacturer-backed quality assurance to meet OEM standards. This hood lift support is designed for long service life under normal operating conditions on Ford Excursion and Super Duty trucks.
