Home› Body > Hatch› Stabilus 4B-259833 Hatch Lift Support
Stabilus 4B-259833 Hatch Lift SupportOE Quality 60-Day Returns
Part #: 4B-259833

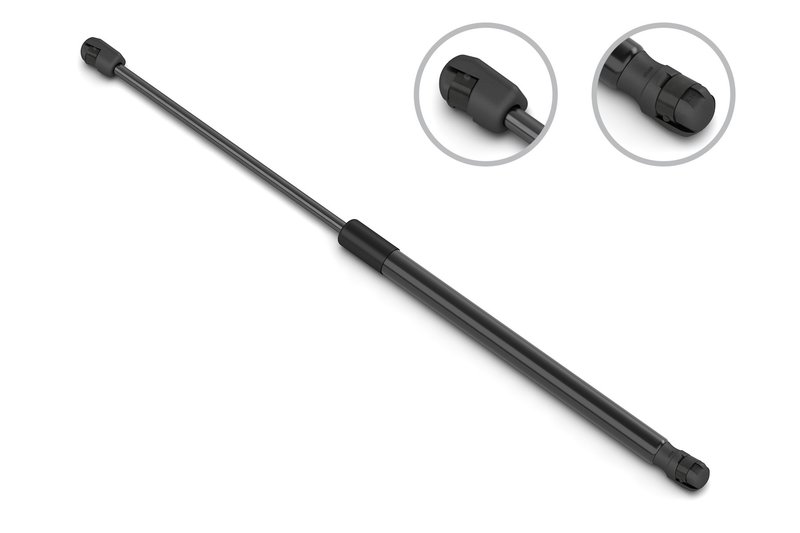

Stabilus 4B-259833 Hatch Lift Support

5 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$30.46Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Fitment: Kia, Sorento
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Hatch Lift Support options

Stabilus Lift Support for Kia Sorento

The Stabilus 4B-259833 is a gas-charged lift support built for controlled opening and holding force on the rear liftgate. It is specified for 2016-2020 Kia Sorento applications and uses plastic socket connections for a direct OE-style replacement fit.

  • Brand: Stabilus
  • Part number: 4B-259833
  • Force rating: 670 N / 151 lb
  • Extended length: 533.5 mm (21.004 in)
  • Compressed length: 367.5 mm (14.469 in)
  • Rod diameter: 8 mm (0.315 in)
  • Tube diameter: 19 mm (0.748 in)
  • Rod connection: plastic socket
  • Tube connection: plastic socket
  • Fits 2016-2020 Kia Sorento, N/A

Fitment and Application

Compatible with 2016-2020 Kia Sorento liftgate applications, this Stabilus 4B-259833 lift support is sized to match the listed compressed and extended lengths while delivering 670 N of force. It is a practical OE replacement for Sorento owners looking for consistent liftgate support and controlled motion. This part cross-references AMS Automotive 7012 for the same application.

What It Helps Solve

  • Liftgate that will not stay open
  • Weak or slow rear hatch movement
  • Uneven or inconsistent liftgate support
  • Loss of holding force from worn gas struts
  • Hard-to-lift rear hatch operation

Installation Notes

Verify the existing support’s extended length, compressed length, and socket style before installation. Match the rod and tube connection points to the vehicle mounting hardware, and replace supports in pairs when both sides show similar wear. Confirm the liftgate opens and closes smoothly after installation on the Kia Sorento.

Quality Assurance

Stabilus is a recognized OE supplier of gas springs and lift supports, and this 4B-259833 part is built to OE-style dimensional and force specifications for the listed Kia Sorento applications.

BrandStabilus
Part Number4B-259833
Y
Y
Body0.748
Compressed Length14.469
Compressed Length367.5
Extended Length21.004
Extended Length533.5
Force (N)670
Force Lbs151
Hardware KitNO
Rod ConnectionPLASTIC SOCKET
Rod Dia (IN)0.315
Rod Diameter8
Rod End Attachment Dia (IN)0.394
Rod End Attachment Dia (MM)10
Shaft0.315
Shaft ConnectionPLASTIC SOCKET
Tube ConnectionPLASTIC SOCKET
Tube Dia (IN)0.748
Tube Diameter19
Tube End Attach Dia (IN)0.394
Tube End Attach Dia (mm)10

This part fits 5 vehicles. Search below:

YearMakeModelPositionNotes
2020KiaSorentoN/A
2019KiaSorentoN/A
2018KiaSorentoN/A
2017KiaSorentoN/A
2016KiaSorentoN/A

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
