Stabilus 4B-275846 Hatch Lift SupportOE Quality 60-Day Returns
Part #: 4B-275846

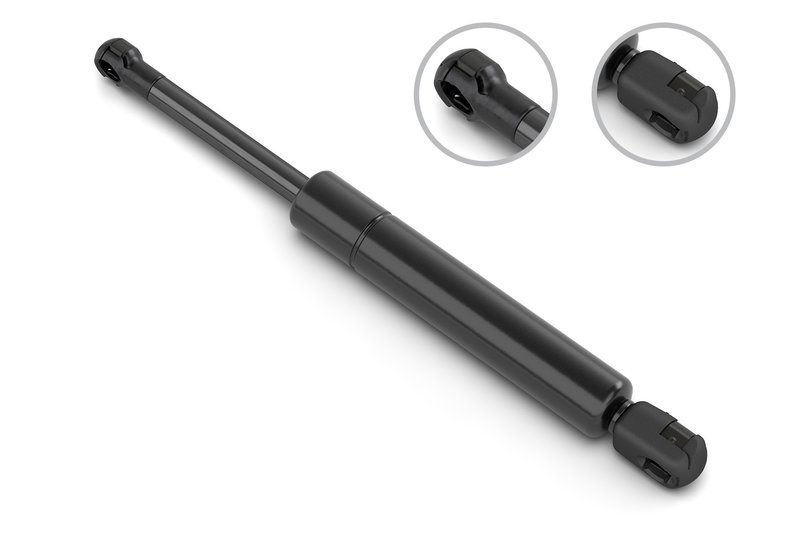

Stabilus 4B-275846 Hatch Lift Support

1 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$36.87Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Fitment: Toyota, RAV4
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Hatch Lift Support options

OE-Style Lift Support for 2018 Toyota RAV4

This Stabilus lift support is built for the 2018 Toyota RAV4 and matches the OE-style dimensions needed for proper hatch or liftgate operation. Part number 4B-275846 is specified for the RAV4 application from 04/2018, with a 19.862 in. extended length, 14.370 in. compressed length, and 800 N (180 lb) force rating.

  • Brand: Stabilus
  • Part number: 4B-275846
  • Extended length: 19.862 in. (504.5 mm)
  • Compressed length: 14.370 in. (365 mm)
  • Force rating: 800 N / 180 lb
  • Rod diameter: 10 mm (0.394 in.)
  • Tube diameter: 22 mm (0.866 in.)
  • Rod connection: metal socket
  • Tube connection: plastic socket
  • Direct fitment listed for 2018 Toyota RAV4, N/A, from 04/2018

Stabilus 4B-275846 is a gas-charged support engineered to control opening and closing motion with the correct length and force profile for the listed Toyota RAV4 application. The metal socket rod end and plastic socket tube end match the attachment style shown in the product data, helping ensure proper alignment with the OE mounting points. This part cross-references Toyota OE numbers 68950-0R100 and 68960-0R100 for the same application.

Common Replacement Reasons

  • Liftgate or hatch drops too quickly
  • Rear opening no longer stays raised
  • Uneven or weak support during opening
  • Original gas strut has lost pressure
  • Noise or inconsistent motion from the rear support

Installation Notes

Verify the compressed and extended lengths, force rating, and socket style before installation on the 2018 Toyota RAV4. Confirm the vehicle build date of 04/2018 or later as listed in the fitment data, and compare the existing support to part number 4B-275846 before removal. Replace only with the correct application-specific lift support to maintain proper hatch or liftgate operation.

Quality Assurance

Stabilus is a recognized OE supplier of gas springs and lift supports, and this part is cataloged with application-specific dimensions and fitment data for the 2018 Toyota RAV4. Part number 4B-275846 is listed with direct interchange references to support accurate replacement selection.

BrandStabilus
Part Number4B-275846
Y
Y
Body0.866
Compressed Length14.370
Compressed Length365
Extended Length19.862
Extended Length504.5
Force (N)800
Force Lbs180
Hardware KitNO
Rod ConnectionMETAL SOCKET
Rod Dia (IN)0.394
Rod Diameter10
Rod End Attachment Dia (IN)0.394
Rod End Attachment Dia (MM)10
Shaft0.394
Shaft ConnectionMETAL SOCKET
Tube ConnectionPLASTIC SOCKET
Tube Dia (IN)0.866
Tube Diameter22
Tube End Attach Dia (IN)0.394
Tube End Attach Dia (mm)10

This part fits 1 vehicles. Search below:

YearMakeModelPositionNotes
2018ToyotaRAV4N/AFrom 04/2018

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
