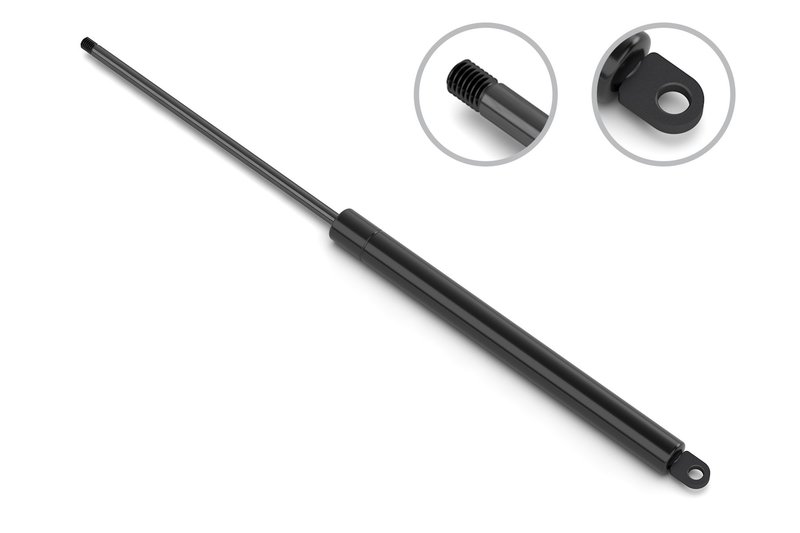

Stabilus 4B-290793 Hatch Lift Support

Overview of Stabilus Gas Spring for Volvo 240

The Stabilus gas spring part number 4B-290793 is engineered to provide reliable support and smooth operation for your Volvo 240. Designed with precise dimensions and force specifications, this gas spring ensures consistent performance in automotive applications.

• Compressed length: 10.866 inches (276 mm)
• Extended length: 18.720 inches (475.5 mm)
• Rod diameter: 8 mm (0.315 inches)
• Tube diameter: 22 mm
• Force: 410 Newtons (92 lbs)
• Rod connection: M8 thread

Technical Specifications and Features

The Stabilus 4B-290793 gas spring features a robust 8 mm rod diameter and a 22 mm tube diameter, providing a balance of strength and compact size suitable for the Volvo 240. With a compressed length of 10.866 inches and an extended length of 18.720 inches, this gas spring offers a stroke length that supports smooth opening and closing motions. The force rating of 410 Newtons (92 lbs) ensures adequate lifting power for various automotive components. The M8 threaded rod connection allows for secure and straightforward installation.

Applications and Problem Solving

This gas spring is specifically compatible with Volvo 240 models, making it a precise replacement part for maintaining or restoring proper function. It is commonly used in applications such as trunk lids, hoods, or other hinged components requiring controlled motion and support.

• Restores smooth operation of trunk or hood supports
• Replaces worn or weakened gas springs causing sagging or difficulty in lifting
• Prevents sudden closures that can cause damage or injury
• Maintains consistent force for reliable component positioning

Installation Notes and Tips

When installing the Stabilus 4B-290793 gas spring on a Volvo 240, ensure the M8 threaded rod connection is properly secured to avoid loosening during operation. Verify the orientation of the gas spring matches the original setup to maintain correct force direction. It is recommended to lubricate mounting points lightly and inspect surrounding hardware for wear during replacement.

Quality Assurance and Warranty

Stabilus gas springs are manufactured to meet strict quality standards, ensuring durability and consistent performance. While specific warranty details for part number 4B-290793 may vary, Stabilus typically offers coverage against manufacturing defects. Always consult product documentation or supplier information for exact warranty terms.
