Stabilus 4B-291919

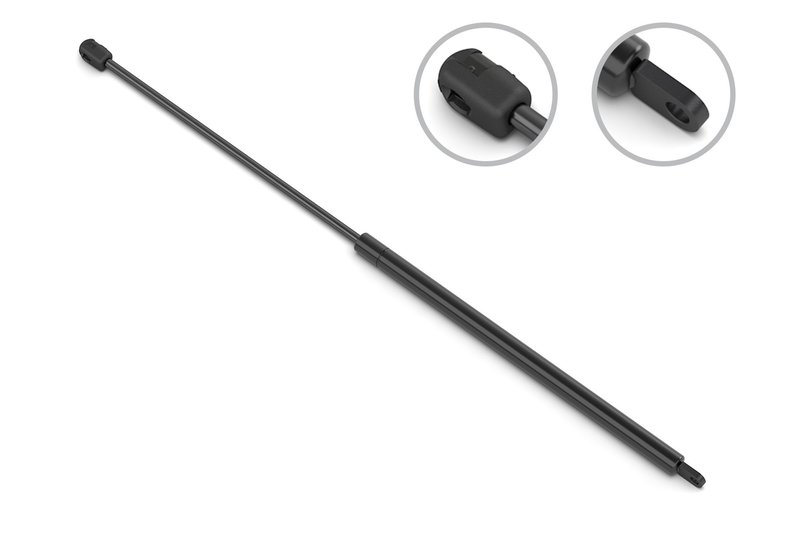

Stabilus 4B-291919 Gas Spring for Vanagon

Stabilus 4B-291919 is a gas spring built for the 1980-1991 Volkswagen Vanagon. With a 610 N (137 lb) force rating, 512 mm extended length, and 309 mm compressed length, it provides controlled lift and support for the specified application.

Key Features

• Brand: Stabilus
• Part number: 4B-291919
• Force rating: 610 N / 137 lb
• Extended length: 20.157 in (512 mm)
• Compressed length: 12.165 in (309 mm)
• Rod diameter: 0.315 in (8 mm)
• Tube diameter: 0.709 in (18 mm)
• Rod connection: plastic socket
• Tube connection: metal blade
• Direct fit for 1980-1991 Volkswagen Vanagon

Detailed Description

This Stabilus gas spring is specified for Volkswagen Vanagon models from 1980 through 1991 and is identified by part number 4B-291919. The unit uses a plastic socket rod connection and a metal blade tube connection, with dimensions that match the listed application: 20.157 inches extended, 12.165 inches compressed, 0.315-inch rod diameter, and 0.709-inch tube diameter. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

For buyers searching for a Volkswagen Vanagon lift support, hatch support, or rear lid gas strut replacement, this Stabilus 4B-291919 listing provides the core fitment and dimensional data needed to confirm the correct part before ordering.

Common Uses

• Replacing a weak or failed lift support on a Volkswagen Vanagon
• Restoring controlled opening and holding force
• Addressing a hatch, lid, or panel that drops too quickly
• Correcting uneven or inconsistent support action
• Replacing a gas spring with worn end fittings or reduced pressure

Installation Notes and Tips

Verify the compressed length, extended length, and end fittings against the removed part before installation. Confirm that the plastic socket and metal blade connections match the vehicle mounting points on the 1980-1991 Volkswagen Vanagon. Compare the force rating to the original support to maintain proper opening effort and holding position. If the mounting points show wear, inspect them before installing the new gas spring.

Quality Assurance

Stabilus is a recognized OE supplier of gas springs and lift supports, and this part is built to match the listed application specifications for the Volkswagen Vanagon. Use the part number 4B-291919 and the published dimensions to verify application accuracy.
