OE Quality
60-Day Returns

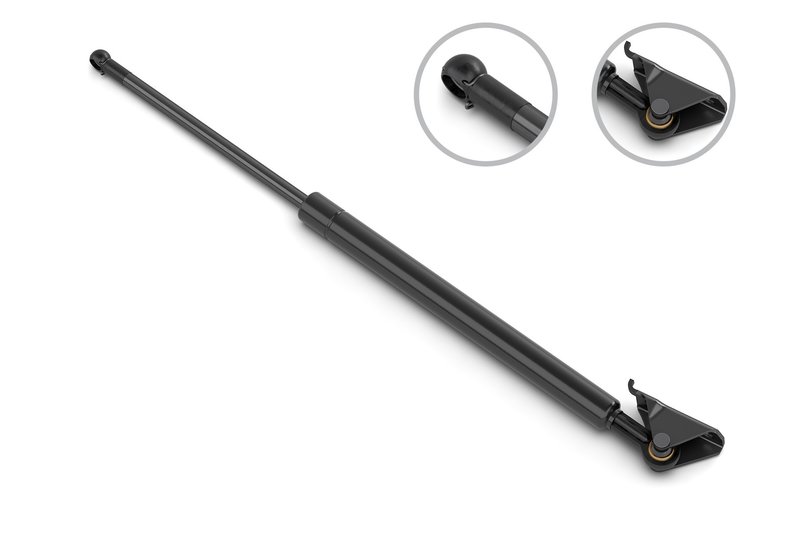

Stabilus 4B-294968 Hatch Lift Support - Right
Stabilus Lift Support for Jeep Grand Cherokee
This Stabilus lift support is built for the right side of 1993-1998 Jeep Grand Cherokee models. It uses a metal socket rod connection and a heim joint with bracket tube connection for secure mounting and consistent hatch or liftgate support.
Key Features
- Brand: Stabilus
- Part number: 4B-294968
- Force rating: 810 N / 182 lb
- Compressed length: 12.52 in (318 mm)
- Extended length: 18.583 in (472 mm)
- Rod diameter: 0.394 in (10 mm)
- Tube diameter: 0.866 in (22 mm)
- Rod connection: metal socket
- Tube connection: heim joint with bracket
- Fits 1993-1998 Jeep Grand Cherokee, right
Detailed Description
The Stabilus 4B-294968 gas strut is a direct-fit lift support for the right side of the Jeep Grand Cherokee from 1993 through 1998. With an 810 N force rating, it helps provide controlled opening and holding action for the supported panel while matching the specified compressed and extended lengths for the application. If you are replacing a worn Jeep Grand Cherokee lift support, this part number 4B-294968 offers the correct connection style and dimensions for the listed vehicle fitment.
This part cross-references AMS Automotive 4857 and Tuff Support 612881 for the same application.
Common Uses
- Restores weak or failing liftgate support on the right side
- Addresses a hatch or rear panel that drops too quickly
- Helps correct uneven opening or poor holding force
- Replaces a gas strut with worn seals or reduced pressure
- Supports proper operation on a 1993-1998 Jeep Grand Cherokee right-side application
Installation Notes and Tips
Verify the compressed length, extended length, rod diameter, and tube connection before installation. Match the right-side mounting points on the vehicle and compare the existing support to Stabilus 4B-294968 before removal. Inspect the mounting brackets and sockets for wear or damage so the new lift support seats correctly.
Quality Assurance
Stabilus is a recognized supplier of gas springs and lift supports used in automotive applications. This part is specified by its measured dimensions, force rating, and connection style to support accurate replacement selection for the listed Jeep Grand Cherokee fitment.
| Brand | Stabilus |
|---|---|
| Part Number | 4B-294968 |
| Y | |
| Y | |
| Body | 0.866 |
| Compressed Length | 12.52 |
| Compressed Length | 318 |
| Extended Length | 18.583 |
| Extended Length | 472 |
| Force (N) | 810 |
| Force Lbs | 182 |
| Hardware Kit | NO |
| Rod Connection | METAL SOCKET |
| Rod Dia (IN) | 0.394 |
| Rod Diameter | 10 |
| Rod End Attachment Dia (IN) | 0.394 |
| Rod End Attachment Dia (MM) | 10 |
| Shaft | 0.394 |
| Shaft Connection | METAL SOCKET |
| Tube Connection | HEIM JOINT WITH BRACKET |
| Tube Dia (IN) | 0.866 |
| Tube Diameter | 22 |
This part fits 6 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1998 | Jeep | Grand Cherokee | Right | |
| 1997 | Jeep | Grand Cherokee | Right | |
| 1996 | Jeep | Grand Cherokee | Right | |
| 1995 | Jeep | Grand Cherokee | Right | |
| 1994 | Jeep | Grand Cherokee | Right | |
| 1993 | Jeep | Grand Cherokee | Right |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
