Home› Body > Hatch› Stabilus 4B-331259 Hatch Lift Support
Stabilus 4B-331259 Hatch Lift SupportOE Quality 60-Day Returns
Part #: 4B-331259

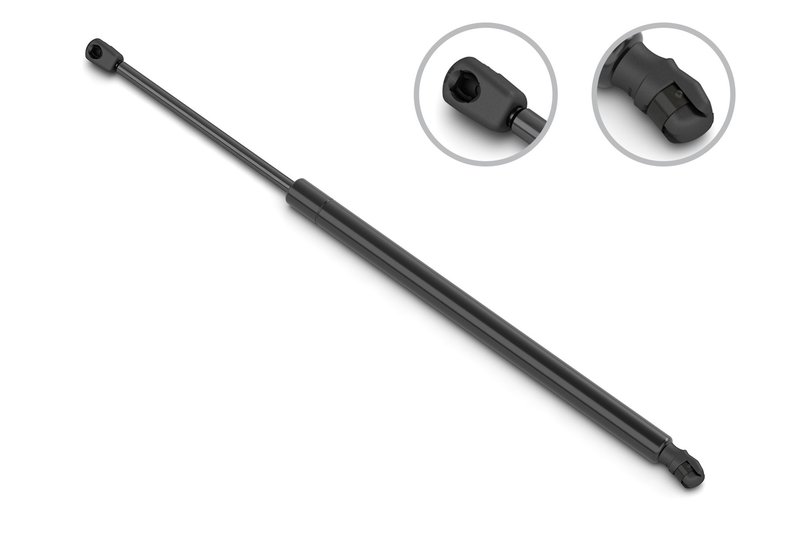

Stabilus 4B-331259 Hatch Lift Support

4 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$33.04Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Fitment: Lincoln, MKX
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Hatch Lift Support options

Liftgate Gas Strut for Lincoln MKX

This Stabilus liftgate gas strut is built for 2007-2010 Lincoln MKX models with power or non-power liftgate setups. The Stabilus 4B-331259 uses a plastic socket connection at both ends and delivers 710 N of force for controlled liftgate support.

  • Brand: Stabilus
  • Part number: 4B-331259
  • Force rating: 710 N / 160 lb
  • Compressed length: 353.5 mm (13.917 in)
  • Extended length: 559.5 mm (22.028 in)
  • Rod diameter: 10 mm (0.394 in)
  • Tube diameter: 22 mm (0.866 in)
  • Plastic socket rod and tube connections
  • Fits power and non-power liftgate applications

Fitment Details

Compatible with 2007-2010 Lincoln MKX liftgate applications. Fits 2007-2010 Lincoln MKX, N/A, including power and non-power liftgate configurations.

The Stabilus 4B-331259 is a direct-fit gas spring for liftgate support where consistent opening and closing force is needed. Its measured compressed and extended lengths, along with the 10 mm rod and 22 mm tube dimensions, help match the original support geometry on the Lincoln MKX. This part cross-references Tuff Support 611686 for the same application.

What It Helps Address

  • Liftgate that drops too quickly
  • Weak or inconsistent liftgate support
  • Difficulty holding the rear hatch open
  • Reduced opening assistance from worn gas struts
  • Noise or uneven movement from aging liftgate supports

Installation Notes

Verify the compressed length, extended length, and socket-style end fittings before installation. Compare the original strut to the Stabilus 4B-331259 to confirm the 10 mm rod connection and 22 mm tube connection match the vehicle mounting points. Replace only with the liftgate fully supported and follow the vehicle service procedure for safe removal and installation.

Quality Assurance

Stabilus is a recognized OE supplier for gas springs and lift supports. This part is specified with exact dimensional and force data to support accurate replacement selection for 2007-2010 Lincoln MKX liftgate applications.

BrandStabilus
Part Number4B-331259
Y
Y
Body0.866
Compressed Length13.917
Compressed Length353.5
Extended Length22.028
Extended Length559.5
Force (N)710
Force Lbs160
Hardware KitNO
Rod ConnectionPLASTIC SOCKET
Rod Dia (IN)0.394
Rod Diameter10
Rod End Attachment Dia (IN)0.394
Rod End Attachment Dia (MM)10
Shaft0.394
Shaft ConnectionPLASTIC SOCKET
Tube ConnectionPLASTIC SOCKET
Tube Dia (IN)0.866
Tube Diameter22
Tube End Attach Dia (IN)0.394
Tube End Attach Dia (mm)10

This part fits 4 vehicles. Search below:

YearMakeModelPositionNotes
2010LincolnMKXN/APower/Non-Power Liftgate
2009LincolnMKXN/APower/Non-Power Liftgate
2008LincolnMKXN/APower/Non-Power Liftgate
2007LincolnMKXN/APower/Non-Power Liftgate

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
