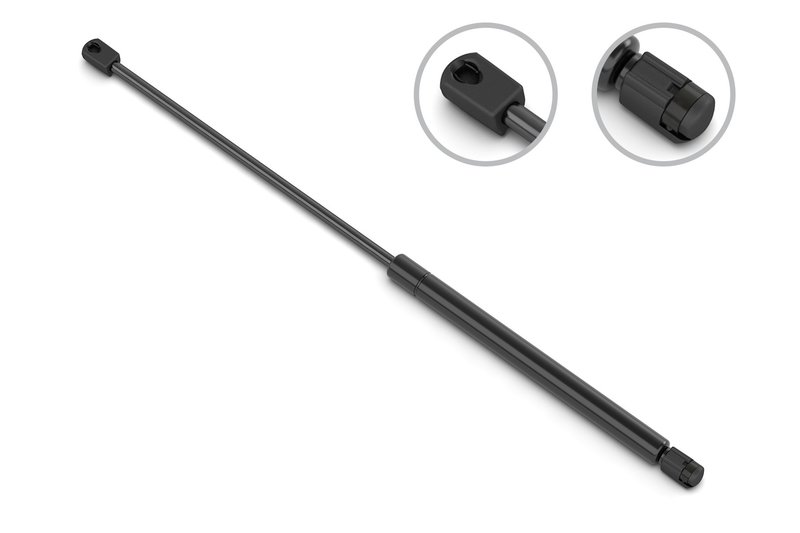

Stabilus 4B-3746TN Hood Lift Support

Overview of Stabilus Hood Lift Support 4B-3746TN

The Stabilus hood lift support 4B-3746TN is designed specifically for the Lincoln Mark VIII, providing reliable and consistent hood support. Engineered to precise specifications, this hood lift support ensures smooth operation and secure positioning of the vehicle's hood.

• Compatible with Lincoln Mark VIII models
• Compressed length: 12.402 inches (315 mm)
• Extended length: 19.094 inches (485 mm)
• Rod diameter: 8 mm (0.315 inches)
• Tube diameter: 19 mm
• Force rating: 240 Newtons (54 lbs)
• Rod connection type: Plastic socket

Technical Specifications and Features

The Stabilus 4B-3746TN hood lift support features a rod diameter of 8 mm and a tube diameter of 19 mm, providing a balanced strength-to-weight ratio suitable for the Lincoln Mark VIII hood. The compressed length measures 12.402 inches (315 mm), while the extended length reaches 19.094 inches (485 mm), allowing for optimal hood positioning and ease of use. With a force rating of 240 Newtons (54 lbs), this gas spring offers sufficient lift support to hold the hood securely open during maintenance or inspection. The rod end attachment uses a plastic socket connection, ensuring smooth articulation and durability under normal operating conditions.

Applications and Problem Solving

• Replaces worn or weak hood lift supports on Lincoln Mark VIII vehicles
• Prevents hood from unexpectedly closing during engine access
• Eliminates difficulty in lifting heavy hoods manually
• Restores proper hood alignment and support force
• Improves safety during vehicle maintenance and inspection

Installation Notes and Tips

When installing the Stabilus 4B-3746TN hood lift support, ensure the hood is securely propped open or supported to prevent injury. Remove the old lift support by detaching the plastic socket connections carefully to avoid damage. Align the new lift support with the mounting points on the hood and body, then snap the plastic socket ends into place. Verify smooth operation by slowly opening and closing the hood several times. No additional hardware is included, so reuse existing mounting components if applicable.

Quality Assurance and Warranty

Stabilus is a recognized manufacturer of automotive gas springs and lift supports, known for consistent quality and durability. The 4B-3746TN hood lift support is manufactured to meet OEM specifications for the Lincoln Mark VIII. While specific warranty details are not provided, Stabilus products typically come with manufacturer-backed quality assurance to ensure reliable performance over time.
