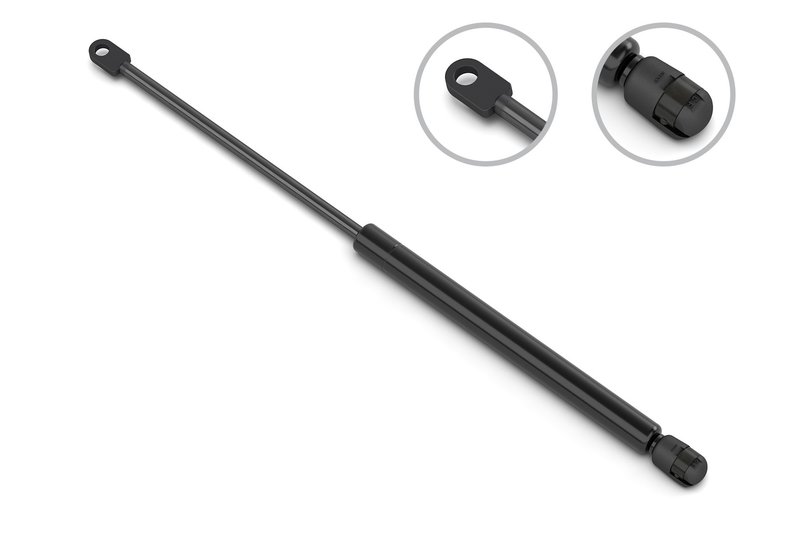

Stabilus 4B-413752 Hood Lift Support - Right

Overview of Stabilus Hood Lift Support 4B-413752

The Stabilus Hood Lift Support part number 4B-413752 is designed for reliable hood support on select Lexus and Toyota vehicles. Engineered to provide consistent force and smooth operation, this hood lift support is compatible with Lexus Camry and Toyota ES300 models.

• Compressed length: 233 mm (9.173 inches)
• Extended length: 368 mm (14.488 inches)
• Rod diameter: 8 mm (0.315 inches)
• Tube diameter: 18 mm
• Force: 430 Newtons (97 lbs)
• Rod connection: Metal blade with bushing
• Includes hardware kit 84889 for installation

Technical Details and Specifications

This hood lift support features a robust rod and tube design, with an 8 mm rod diameter and an 18 mm tube diameter, ensuring durability and stable hood positioning. The compressed length measures 233 mm, extending up to 368 mm to accommodate the hood's range of motion. The force rating of 430 Newtons (97 lbs) provides sufficient lift and hold capacity for the hood on Lexus Camry and Toyota ES300 vehicles. The rod end attachment uses a metal blade with bushing connection, enhancing wear resistance and smooth operation over time.

Compatible Vehicles and Applications

This Stabilus hood lift support is specifically compatible with the following vehicles:

• Lexus Camry
• Toyota ES300

It is designed for automotive body hood applications and is not intended for agricultural, heavy truck, marine, or industrial off-highway use.

Common Issues Addressed by Hood Lift Support 4B-413752

• Difficulty holding the hood open safely
• Hood closing unexpectedly or slamming shut
• Worn or weak original hood struts
• Uneven or jerky hood movement
• Corrosion or damage to existing lift supports

Installation Notes and Tips

Installation of the Stabilus 4B-413752 hood lift support requires the included hardware kit 84889. Ensure the vehicle hood is securely supported during replacement to prevent injury. Verify the compressed and extended lengths match the original part to confirm fitment. The metal blade with bushing rod connection should be lubricated lightly if necessary to maintain smooth operation. Follow vehicle-specific service manual instructions for safe and proper installation.

Quality Assurance and Warranty

Stabilus is a recognized manufacturer of automotive lift supports, known for precision engineering and durability. This hood lift support undergoes rigorous quality control to meet OEM standards. While specific warranty details are not provided here, Stabilus products typically include manufacturer warranties covering defects in materials and workmanship. Consult product documentation or manufacturer resources for exact warranty terms.
