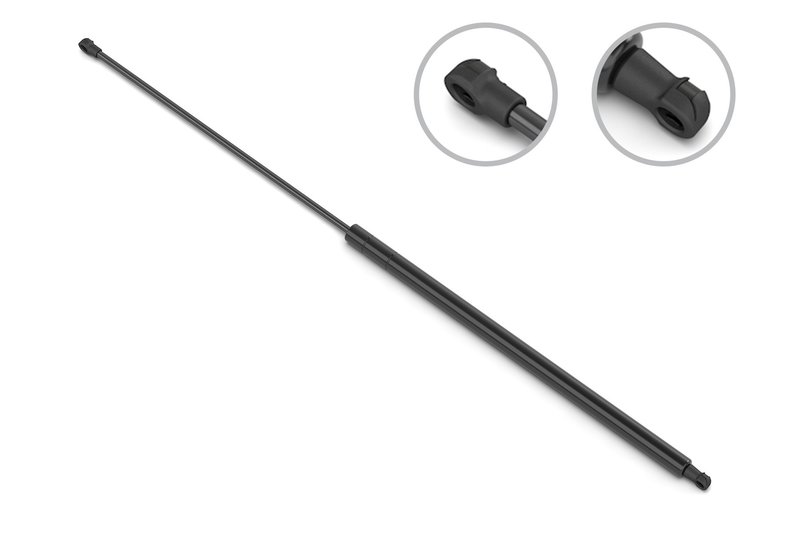

Stabilus 4B-415425 Hatch Lift Support

Overview of Stabilus Gas Spring for Fiat 500

The Stabilus gas spring part number 4B-415425 is designed specifically for the Fiat 500, providing reliable support and smooth operation. Engineered with precise dimensions and force ratings, this gas spring ensures consistent performance for your vehicle's applications.

• Compressed length: 11.26 inches (286 mm)
• Extended length: 17.953 inches (456 mm)
• Rod diameter: 8 mm (0.315 inches)
• Tube diameter: 18 mm
• Force: 350 N (79 lbs)
• Rod end attachment diameter: 10 mm (0.394 inches)
• Rod connection type: Plastic socket

Technical Details and Specifications

This Stabilus gas spring (4B-415425) features a compact body diameter of 0.709 inches, optimized for applications requiring moderate force and precise control. The rod and shaft connections utilize a plastic socket design, which facilitates smooth articulation and reduces wear. With a force rating of 350 Newtons, this gas spring provides consistent support for components such as hoods, trunks, or hatchbacks on the Fiat 500. The extended and compressed lengths are engineered to fit the specific range of motion required by this model.

Compatible Applications for Fiat 500

This gas spring is compatible with the Fiat 500, making it suitable for OEM replacement or maintenance tasks. It is not designed for agricultural equipment, heavy trucks, motorcycles, or marine use. The part number 4B-415425 is intended for automotive use where precise force and length specifications are critical.

• Supports smooth opening and closing of hoods or trunk lids
• Replaces worn or damaged gas springs to restore proper function
• Prevents sudden closures that can cause damage or injury
• Maintains consistent force for reliable component positioning

Installation Notes and Tips

When installing the Stabilus 4B-415425 gas spring on a Fiat 500, ensure the plastic socket rod connection is securely attached to the mounting points. Verify the orientation matches the original part to maintain proper force direction. Avoid overextending the gas spring beyond its specified extended length of 17.953 inches to prevent damage. Use appropriate tools to avoid damaging the rod or tube during installation.

Quality Assurance and Warranty

Stabilus gas springs are manufactured to meet strict quality standards, ensuring durability and consistent performance. While specific warranty details for part number 4B-415425 may vary, Stabilus typically offers coverage against manufacturing defects. It is recommended to consult the product documentation or supplier for exact warranty terms related to this gas spring.
