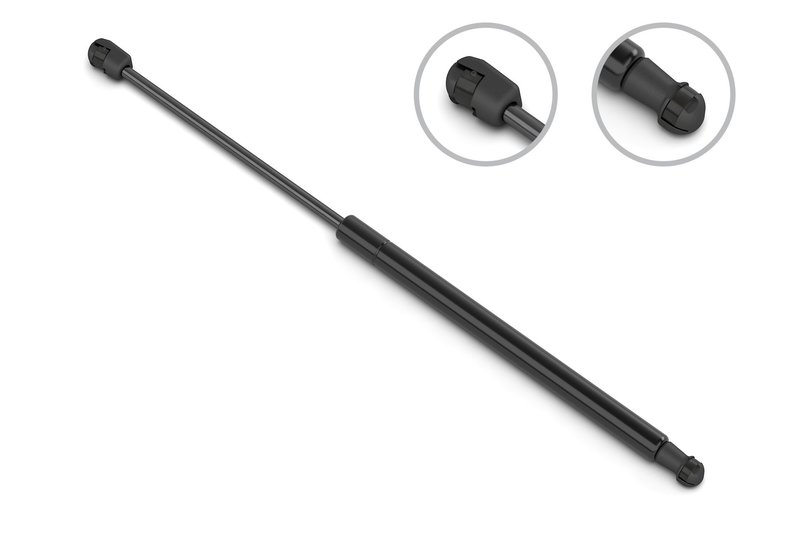

Stabilus 4B-419207 Back Glass Lift Support
| Brand | Stabilus 4B-419207 |
|---|---|
| Y | |
| Y | |
| Body | 0.709 |
| Compressed Length | 12.48 |
| Compressed Length | 317 |
| Extended Length | 18.386 |
| Extended Length | 467 |
| Force (N) | 155 |
| Force Lbs | 35 |
| Hardware Kit | NO |
| Rod Connection | PLASTIC SOCKET |
| Rod Dia (IN) | 0.315 |
| Rod Diameter | 8 |
| Rod End Attachment Dia (IN) | 0.394 |
| Rod End Attachment Dia (MM) | 10 |
| Shaft | 0.315 |
| Shaft Connection | PLASTIC SOCKET |
| Tube Connection | PLASTIC SOCKET |
| Tube Dia (IN) | 0.709 |
| Tube Diameter | 18 |
| Tube End Attach Dia (IN) | 0.394 |
| Tube End Attach Dia (mm) | 10 |
| Fits | Ford and Lincoln · 29 vehicles |
OE direct replacement. Restores smooth glass support with a precise 35 lb lift force.
Plastic socket ends. Simple attachment points help make installation straightforward.
Compact gas spring design. Fits neatly with 12.48 in compressed and 18.386 in extended length.
Cross-references AMS Automotive 6253, Stabilus 4B-419207 and 2L1Z 78406A10-BA for the same application. See all 14.
Back Glass Lift Support for Ford Expedition and Lincoln Navigator
This Stabilus back glass lift support is built for rear glass applications on the Ford Expedition and Lincoln Navigator. It uses a plastic socket connection at both ends and delivers 35 lb of force for controlled opening and holding of the back glass.
- Brand: Stabilus
- Part number: 4B-419207
- Back glass lift support for body glass and window applications
- Extended length: 18.386 in. (467 mm)
- Compressed length: 12.48 in. (317 mm)
- Rod diameter: 0.315 in. (8 mm)
- Tube diameter: 0.709 in. (18 mm)
- Force rating: 155 N / 35 lb
- Plastic socket rod and tube connections
Application Details
Stabilus 4B-419207 is a direct-fit style back glass lift support for rear glass service on 2004-2017 Ford Expedition and 2003-2017 Lincoln Navigator models. The dimensions and 35 lb force rating are important for matching the original lift support geometry and opening effort on the rear glass. If you are replacing a worn lift support on a Ford Expedition or Lincoln Navigator, this part number 4B-419207 is the reference to verify against the existing unit.
This part cross-references AMS Automotive 6253 for the same application.
Common Problems It Can Address
- Rear glass that drops instead of staying open
- Weak or slow lift action at the back glass
- Uneven support when opening the rear glass
- Noise or binding from a worn gas strut
- Difficulty accessing cargo area through the rear glass
Installation Notes
Verify compressed length, extended length, and socket style before installation to confirm proper replacement. Compare the original lift support to Stabilus 4B-419207 for rod diameter, tube diameter, and end attachment size. Clean the mounting points before installing the new support, and support the back glass during removal and installation to prevent sudden movement.
Quality Assurance
Stabilus is a recognized OE supplier in gas spring and lift support applications, and this back glass lift support is built to match the specified force and dimensional requirements for the listed Ford Expedition and Lincoln Navigator fitments.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2017 | Ford | Expedition | N/A | — |
| 2017 | Lincoln | Navigator | N/A | — |
| 2016 | Ford | Expedition | N/A | — |
| 2016 | Lincoln | Navigator | N/A | — |
| 2015 | Ford | Expedition | N/A | — |
| 2015 | Lincoln | Navigator | N/A | — |
| 2014 | Ford | Expedition | N/A | — |
| 2014 | Lincoln | Navigator | N/A | — |
| 2013 | Ford | Expedition | N/A | — |
| 2013 | Lincoln | Navigator | N/A | — |
| 2012 | Ford | Expedition | N/A | — |
| 2012 | Lincoln | Navigator | N/A | — |
| 2011 | Ford | Expedition | N/A | — |
| 2011 | Lincoln | Navigator | N/A | — |
| 2010 | Ford | Expedition | N/A | — |
| 2010 | Lincoln | Navigator | N/A | — |
| 2009 | Ford | Expedition | N/A | — |
| 2009 | Lincoln | Navigator | N/A | — |
| 2008 | Ford | Expedition | N/A | — |
| 2008 | Lincoln | Navigator | N/A | — |
| 2007 | Ford | Expedition | N/A | — |
| 2007 | Lincoln | Navigator | N/A | — |
| 2006 | Ford | Expedition | N/A | — |
| 2006 | Lincoln | Navigator | N/A | — |
| 2005 | Ford | Expedition | N/A | — |
| 2005 | Lincoln | Navigator | N/A | — |
| 2004 | Ford | Expedition | N/A | — |
| 2004 | Lincoln | Navigator | N/A | — |
| 2003 | Lincoln | Navigator | N/A | — |
