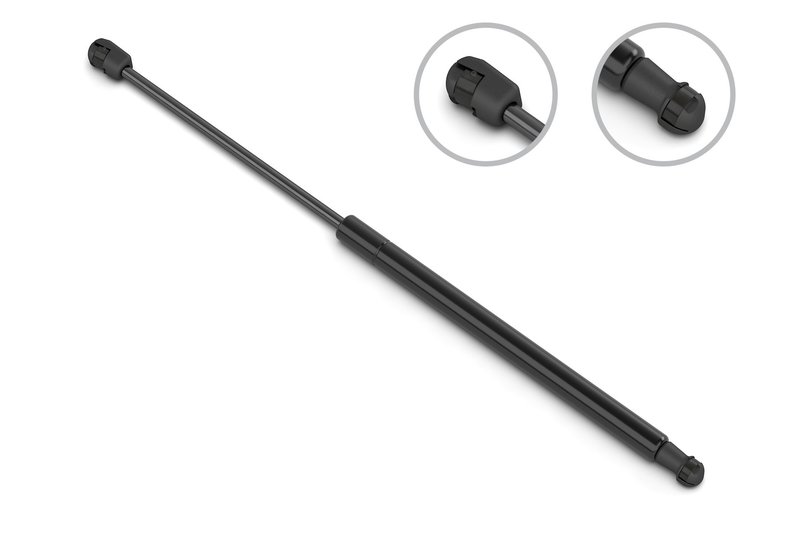

Stabilus 4B-419685 Back Glass Lift Support

Overview of Stabilus Back Glass Lift Support for Ford Expedition

The Stabilus 4B-419685 back glass lift support is designed specifically for Ford Expedition models, providing reliable assistance in lifting and holding the rear window securely. Engineered with precise dimensions and force ratings, this lift support ensures smooth operation and durability.

• Compatible with Ford Expedition rear back glass
• Compressed length: 12.48 inches (317 mm)
• Extended length: 18.386 inches (467 mm)
• Rod diameter: 8 mm (0.315 inches)
• Tube diameter: 18 mm
• Force rating: 155 Newtons (35 lbs)
• Rod connection and shaft connection use plastic sockets for secure fit

Technical Specifications and Features

The Stabilus 4B-419685 back glass lift support features a compressed length of 12.48 inches (317 mm) and extends up to 18.386 inches (467 mm), providing the necessary range of motion for the rear window of the Ford Expedition. The rod diameter measures 8 mm (0.315 inches), while the tube diameter is 18 mm, ensuring a robust and stable structure. With a force rating of 155 Newtons (35 lbs), this lift support offers consistent lifting power to hold the back glass firmly in place. Both the rod and shaft connections utilize plastic sockets, which facilitate easy installation and reliable attachment.

Application and Common Issues Addressed

This back glass lift support is intended for use on Ford Expedition vehicles to assist in the smooth opening and secure holding of the rear window. It addresses several common issues including:

• Difficulty lifting or holding the rear back glass open
• Worn or weakened lift supports causing instability
• Unusual noises or jerky movement when operating the back glass
• Safety concerns due to sudden closing of the rear window
• Replacement of original equipment lift supports to restore proper function

Installation Notes and Tips

Installation of the Stabilus 4B-419685 back glass lift support requires basic mechanical skills and appropriate tools. Ensure the vehicle is parked on a level surface and the rear window is supported during replacement. The plastic socket connections on both rod and shaft ends allow for straightforward attachment to the mounting points. It is recommended to replace lift supports in pairs to maintain balanced operation. Verify the compressed and extended lengths match the original parts for proper fitment.

Quality Assurance and Warranty

Stabilus is a recognized manufacturer of automotive lift supports, known for precision engineering and durability. The 4B-419685 back glass lift support is manufactured to meet OEM specifications for the Ford Expedition. While specific warranty details are not provided, Stabilus products typically come with manufacturer-backed quality assurance to ensure reliable performance and longevity.
