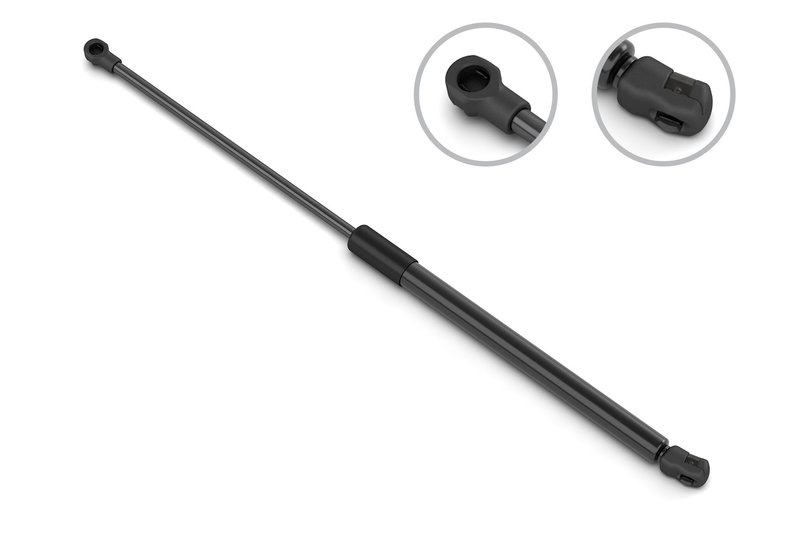

Stabilus 4B-431885 Hood Lift Support
| Brand | Stabilus 4B-431885 |
|---|---|
| Y | |
| Y | |
| Body | 0.709 |
| Compressed Length | 12.165 |
| Compressed Length | 309 |
| Extended Length | 20.197 |
| Extended Length | 513 |
| Force (N) | 200 |
| Force Lbs | 45 |
| Hardware Kit | NO |
| Rod Connection | PLASTIC SOCKET |
| Rod Dia (IN) | 0.315 |
| Rod Diameter | 8 |
| Rod End Attachment Dia (IN) | 0.394 |
| Rod End Attachment Dia (MM) | 10 |
| Shaft | 0.315 |
| Shaft Connection | PLASTIC SOCKET |
| Tube Connection | PLASTIC SOCKET |
| Tube Dia (IN) | 0.709 |
| Tube Diameter | 18 |
| Tube End Attach Dia (IN) | 0.394 |
| Tube End Attach Dia (mm) | 10 |
| Fits | Lexus · 12 vehicles |
OE direct replacement. Restores smooth hood support with a 45 lb force rating.
Plastic socket ends. Simple attachment points help make installation straightforward.
Stabilus engineering. Built with a 20.197 in extended length for proper support.
Cross-references AMS Automotive 6755, Lesjofors 8049102 and Stabilus 4B-431885 for the same application. See all 26.
Stabilus Hood Lift Support for Lexus RX
The Stabilus 4B-431885 hood lift support is built for direct replacement on select Lexus RX applications. It provides controlled hood opening and holding force for routine service access on the 2010-2015 Lexus RX350 and 2010-2015 Lexus RX450h, including 2010-2012 RX450h Premium Package applications.
Key Features
- Brand: Stabilus
- Part number: 4B-431885
- Hood lift support for body/hood applications
- Force rating: 200 N / 45 lb
- Compressed length: 12.165 in (309 mm)
- Extended length: 20.197 in (513 mm)
- Rod diameter: 0.315 in (8 mm)
- Tube diameter: 0.709 in (18 mm)
- Plastic socket rod and tube connections
- Direct-fit replacement for select Lexus RX350 and Lexus RX450h models
Detailed Description
Stabilus 4B-431885 is a hood lift support engineered for consistent hood support and smooth operation on compatible Lexus RX vehicles. The measured compressed and extended lengths, along with the 200 N force rating, help match the original hood support geometry and holding effort for the listed applications. This part cross-references AMS Automotive 6755 for the same application.
Compatible With: 2010-2015 Lexus RX350, N/A; 2013-2015 Lexus RX450h, N/A; 2010-2012 Lexus RX450h, N/A, Premium Package. The Stabilus 4B-431885 is a practical replacement when the original hood support no longer holds the hood securely or opens with uneven resistance.
What It Helps Solve
- Hood that drops instead of staying open
- Weak or inconsistent hood support force
- Slow or uneven hood lift action
- Need for a direct replacement on Lexus RX350 and RX450h applications
- Service access issues caused by worn gas struts
Installation Notes and Tips
Verify the vehicle year, model, and package before ordering. Match the plastic socket connection style and overall length to the original support before installation. Replace hood supports in a controlled manner and support the hood securely during service. Confirm smooth operation after installation on the Lexus RX350 or Lexus RX450h.
Quality Assurance
Stabilus is a recognized OE supplier of gas springs and lift supports, and this part is built to the listed dimensions and force specification for the stated fitment.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2015 | Lexus | RX350 | N/A | — |
| 2015 | Lexus | RX450h | N/A | — |
| 2014 | Lexus | RX350 | N/A | — |
| 2014 | Lexus | RX450h | N/A | — |
| 2013 | Lexus | RX350 | N/A | — |
| 2013 | Lexus | RX450h | N/A | — |
| 2012 | Lexus | RX350 | N/A | — |
| 2012 | Lexus | RX450h | N/A | Premium Package |
| 2011 | Lexus | RX350 | N/A | — |
| 2011 | Lexus | RX450h | N/A | Premium Package |
| 2010 | Lexus | RX350 | N/A | — |
| 2010 | Lexus | RX450h | N/A | Premium Package |
