Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

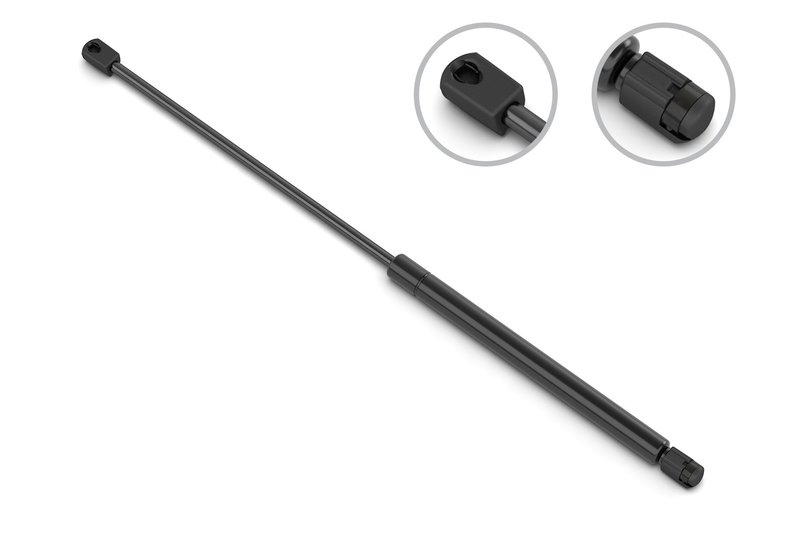

Stabilus 4B-5175KI Hood Lift Support
| Brand | Stabilus 4B-5175KI |
|---|---|
| Y | |
| Y | |
| Body | 0.709 |
| Compressed Length | 12.224 |
| Compressed Length | 310.5 |
| Extended Length | 19.409 |
| Extended Length | 493 |
| Force (N) | 370 |
| Force Lbs | 83 |
| Hardware Kit | NO |
| Rod Connection | PLASTIC SOCKET |
| Rod Dia (IN) | 0.315 |
| Rod Diameter | 8 |
| Rod End Attachment Dia (IN) | 0.315 |
| Rod End Attachment Dia (MM) | 8 |
| Shaft | 0.315 |
| Shaft Connection | PLASTIC SOCKET |
| Tube Connection | PLASTIC SOCKET |
| Tube Dia (IN) | 0.709 |
| Tube Diameter | 18 |
| Tube End Attach Dia (IN) | 0.394 |
| Tube End Attach Dia (mm) | 10 |
| Fits | Ford and Mercury · 20 vehicles |
OE direct replacement. Restores smooth hood support with a 370 N lift force.
Plastic socket ends. Simple attachment points help make installation straightforward.
Compact gas strut design. Measures 12.224 in compressed and 19.409 in extended.
Cross-references Stabilus 4B-5175KI, 5175KI and E9SZ 16C826-A for the same application. See all 6.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Stabilus Hood Lift Support for Ford and Mercury
The Stabilus 4B-5175KI hood lift support restores controlled hood movement for select Ford and Mercury vehicles. Built with a 370 N (83 lb) force rating, it helps keep the hood open with steady support and smooth operation.
- Brand: Stabilus
- Part number: 4B-5175KI
- Force rating: 370 N / 83 lb
- Extended length: 19.409 in (493 mm)
- Compressed length: 12.224 in (310.5 mm)
- Rod diameter: 0.315 in (8 mm)
- Tube diameter: 0.709 in (18 mm)
- Plastic socket rod, tube, and tube-end connections
- Direct fit for hood applications in select Ford Cougar, Ford Thunderbird, and Mercury Cougar models
Fitment Details
Compatible With:
- Fits 1990-1995 Ford Cougar, N/A
- Fits 1989-1995 Ford Thunderbird, N/A
- Fits 1989-1995 Mercury Cougar, N/A
This part cross-references Ford OE-style numbers such as E9SZ 16C826-A and E9SZ16C826A for the same application.
Product Description
The Stabilus 4B-5175KI hood lift support is engineered for hood support applications on 1989-1995 Ford Thunderbird, 1990-1995 Ford Cougar, and 1989-1995 Mercury Cougar models. Its 19.409-inch extended length and 12.224-inch compressed length match the required hood travel, while the 370 N gas force provides the resistance needed for controlled opening and holding. Plastic socket connections at both ends simplify alignment with the factory mounting points.
Use the 4B-5175KI when the original hood support no longer holds the hood open, drops too quickly, or feels weak during operation. The Stabilus design follows the dimensions and connection style needed for these vehicle-specific hood lift support applications.
Common Issues This Part Addresses
- Hood will not stay open
- Hood drops too fast when raised
- Weak or worn gas strut performance
- Uneven hood support during service access
- Original lift support no longer matches factory travel length
Installation Notes and Tips
Verify the compressed and extended lengths, rod diameter, and socket-style end connections before installation. Match the replacement to the hood mounting points on the vehicle and confirm the support is oriented correctly before final testing. After installation, open and close the hood several times to confirm smooth movement and proper holding force.
Quality Assurance
Stabilus is a recognized OE supplier of gas springs and lift supports, and this part is built to the dimensional and force specifications listed for the application. Part number 4B-5175KI is also referenced as 5175KI and OE-style cross-reference numbers used on the same Ford and Mercury hood support applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1995 | Ford | Cougar | N/A | — |
| 1995 | Ford | Thunderbird | N/A | — |
| 1995 | Mercury | Cougar | N/A | — |
| 1994 | Ford | Cougar | N/A | — |
| 1994 | Ford | Thunderbird | N/A | — |
| 1994 | Mercury | Cougar | N/A | — |
| 1993 | Ford | Cougar | N/A | — |
| 1993 | Ford | Thunderbird | N/A | — |
| 1993 | Mercury | Cougar | N/A | — |
| 1992 | Ford | Cougar | N/A | — |
| 1992 | Ford | Thunderbird | N/A | — |
| 1992 | Mercury | Cougar | N/A | — |
| 1991 | Ford | Cougar | N/A | — |
| 1991 | Ford | Thunderbird | N/A | — |
| 1991 | Mercury | Cougar | N/A | — |
| 1990 | Ford | Cougar | N/A | — |
| 1990 | Ford | Thunderbird | N/A | — |
| 1990 | Mercury | Cougar | N/A | — |
| 1989 | Ford | Thunderbird | N/A | — |
| 1989 | Mercury | Cougar | N/A | — |
| No rows match your filter. | ||||
