Stabilus 4B-524371

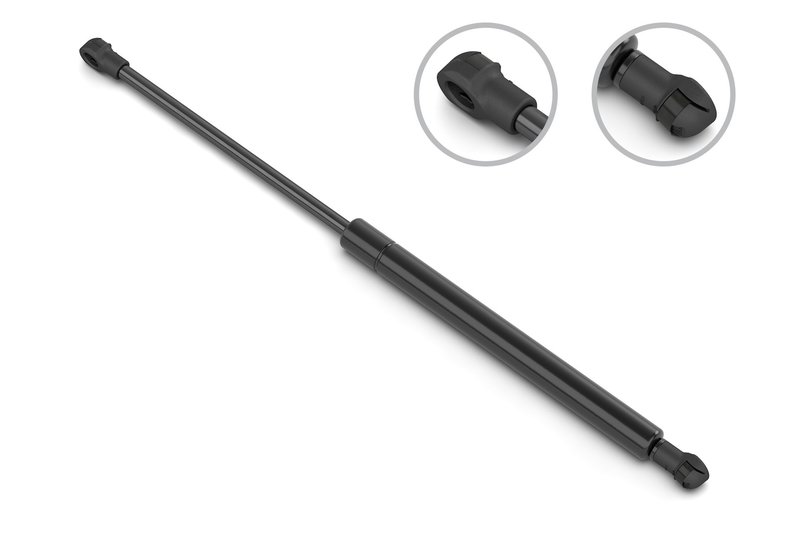

Stabilus 4B-524371 Gas Spring Overview

Stabilus 4B-524371 is a gas spring with a 410 N (92 lb) force rating, built with plastic socket connections at both ends for a direct OE-style replacement. It measures 455 mm extended length and 271 mm compressed length, with an 8 mm rod diameter and 18 mm tube diameter.

This Stabilus 4B-524371 gas strut is used in vehicle lift support applications where controlled opening, holding, and closing action is required. It is a practical replacement choice for select Acura and Honda applications that use the same dimensions and end fittings.

Key Features

• Brand: Stabilus
• Part number: 4B-524371
• Force rating: 410 N / 92 lb
• Extended length: 455 mm (17.913 in)
• Compressed length: 271 mm (10.669 in)
• Rod diameter: 8 mm (0.315 in)
• Tube diameter: 18 mm (0.709 in)
• Plastic socket rod and tube connections

Detailed Description

Stabilus 4B-524371 is an OE-style gas spring engineered to match the length, force, and socket-style attachment points used in specific automotive lift support applications. The 455 mm extended length and 271 mm compressed length help maintain proper travel, while the 410 N force rating supports controlled movement without excessive effort. This part cross-references National 613007 and NGK 6748 for the same application. Search terms such as Acura Honda lift support gas strut, 410N hatch support replacement, and Stabilus 4B-524371 gas spring replacement are commonly used for this type of part.

Compatible vehicle search phrases include Acura TL lift support replacement and Honda Accord gas strut replacement when verifying the exact application by dimensions and end fittings. Use the part number 4B-524371 to confirm the correct match before ordering.

Common Problems This Part Can Address

• Hatch, trunk, or hood that drops instead of staying open
• Weak or slow lift support movement
• Uneven opening force on a worn gas strut
• Loss of controlled closing action
• Noise or binding from an aging support assembly

Installation Notes and Tips

Verify the extended length, compressed length, rod diameter, tube diameter, and plastic socket end fittings before installation. Compare the original support to Stabilus 4B-524371 and confirm the vehicle application by part number and mounting style. Replace supports in a stable, supported position so the liftgate, hood, or trunk lid does not move unexpectedly during service.

Quality Assurance

Stabilus is a recognized OE supplier for gas springs and lift supports, and this part is built to match the specified dimensions and force rating for consistent replacement performance.
