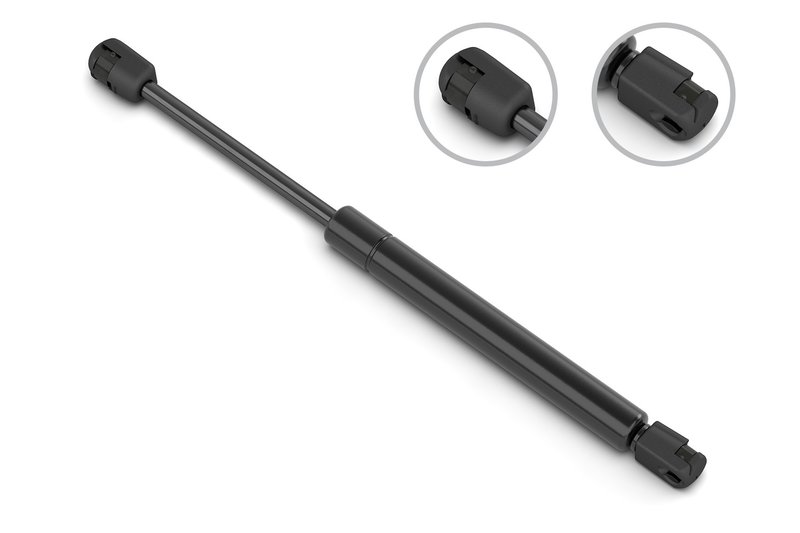

Stabilus 4B-524650 Back Glass Lift Support
| Brand | Stabilus 4B-524650 |
|---|---|
| 10035 | 0.394 |
| 10035 | 10 |
| 10036 | 0.315 |
| 10036 | 8 |
| Compressed Length | 12.42 |
| Compressed Length | 315.5 |
| End 1 Type | Ball socket |
| End 2 Type | Ball socket |
| Type | Gas |
| Maximum Force | 160 |
| Maximum Force | 36 |
| Mounting Hardware Included | No |
| Cylinder Outside Diameter | 0.709 |
| Cylinder Outside Diameter | 18 |
| Extended Length | 21.14 |
| Extended Length | 537 |
| End 1 Material | Nylon |
| End 2 Material | Nylon |
| Stroke Length | 221.5 |
| Stroke Length | 8.72 |
| Inner Shaft Diameter | 0.315 |
| Inner Shaft Diameter | 8 |
| EXT_Agricultural Equipment | N |
| EXT_Application Specific | Y |
| EXT_CarLight Truck | Y |
| EXT_Engine Specific | N |
| EXT_Heavy Truck | N |
| EXT_High Performance | N |
| EXT_IndustrialOff Highway | N |
| EXT_Marine | N |
| Fits | Jeep · 8 vehicles |
OE performance. Dynamic damping delivers controlled motion with a smooth, gentle stop.
Gas lift support. Precision gas design provides refined, reliable opening and closing action.
Ball socket ends. Nylon sockets help ensure secure, application-specific attachment.
Cross-references Champion Spark Plug 7418, Stabilus 4B-524650 and Tuff Support 612136 for the same application. See all 12.
Back Glass Lift Support for Jeep Wrangler
This Stabilus back glass lift support is built for controlled rear glass movement on Jeep Wrangler models from 2018-2025. It uses gas-charged force with dynamic damping to deliver a smooth, measured lift and a gentle closing stop for the rear glass.
- Fits 2018-2025 Jeep Wrangler, N/A
- Stabilus Lift-O-Mat design with dynamic damping for controlled motion
- Gas spring construction with ball socket ends on both sides
- Compressed length: 12.42 in. (315.5 mm)
- Extended length: 21.14 in. (537 mm)
- Stroke length: 8.72 in. (221.5 mm)
- Maximum force: 160 lb
- Cylinder outside diameter: 0.709 in. (18 mm)
How the Lift-O-Mat Design Works
Stabilus uses a velocity-manifold groove inside the tube to regulate gas flow as the shaft extends. That controlled flow changes damping through the stroke, so the rear glass opens with consistent resistance and closes with a softer final stop. For Jeep Wrangler rear glass service, part number 4B-524650 is engineered for application-specific motion control and OE-style operation.
This part cross-references Tuff Support 612136 for the same application.
Common Problems This Part Can Address
- Rear glass that drops too quickly when opened
- Lift support that no longer holds the glass in the raised position
- Uneven or jerky rear glass movement
- Hard closing action at the end of the stroke
- Weak gas pressure from an aging lift support
Installation Notes
Verify ball socket end style and compressed/extended length before installation. Transfer any vehicle-specific mounting points as required by the application, and inspect the rear glass hinges and attachment points for wear before replacing the support. Confirm the part number 4B-524650 matches the Jeep Wrangler rear glass application before installation.
Quality Assurance
Stabilus is known for OE-focused gas spring engineering, and the Lift-O-Mat line is built around controlled damping for precise rear glass movement. Part number 4B-524650 is designed for consistent operation in the specified Jeep Wrangler fitment range.
| Year | Make | Model | Notes |
|---|---|---|---|
| 2025 | Jeep | Wrangler | — |
| 2024 | Jeep | Wrangler | — |
| 2023 | Jeep | Wrangler | — |
| 2022 | Jeep | Wrangler | — |
| 2021 | Jeep | Wrangler | — |
| 2020 | Jeep | Wrangler | — |
| 2019 | Jeep | Wrangler | — |
| 2018 | Jeep | Wrangler | — |
