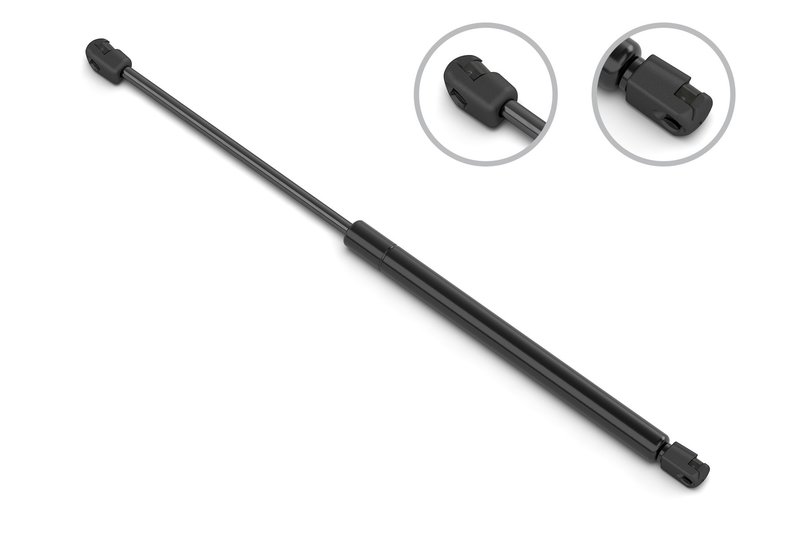

Stabilus 4B-552852 Hood Lift Support

Stabilus Hood Lift Support for Ford Ranger

Restore controlled hood movement with this Stabilus Lift-O-Mat hood lift support, part number 4B-552852. It uses dynamic damping to slow the hood through the stroke and finish with a gentle stop, which helps deliver consistent OE-style operation on the 2017-2023 Ford Ranger.

• Fits 2017-2023 Ford Ranger, N/A
• Lift-O-Mat gas strut with dynamic damping for controlled extension
• Velocity manifold groove in the tube wall regulates gas flow and motion speed
• Ball socket ends with nylon end materials for secure attachment points
• Extended length: 20.67 in. (525 mm)
• Compressed length: 13.21 in. (335.5 mm)
• Stroke length: 7.46 in. (189.5 mm)
• Maximum force: 160 N (36 lbf)

How This Hood Support Works

The Stabilus 4B-552852 is a gas-charged hood lift support engineered for application-specific damping. Instead of a simple open-and-close motion, the internal groove profile meters gas flow as the rod extends, helping the hood move smoothly and settle softly at the end of travel. This makes it a practical replacement for worn hood struts on Ford Ranger models from 2017 through 2023. This part cross-references SKF 7412 for the same application.

Common Problems It Can Help Solve

• Hood drops too quickly when opened
• Hood will not stay raised reliably
• Uneven or jerky hood lift motion
• Excess effort needed to open the hood
• Worn gas strut performance on a Ford Ranger hood

Installation Notes

Verify the compressed length, extended length, and ball socket end style before installation. Inspect the mounting balls and attachment points for wear, and replace damaged clips or sockets as needed. Confirm the hood is properly supported during removal and installation, since gas struts can lose force gradually over time. For fitment, this part is listed for 2017-2023 Ford Ranger applications.

Quality Assurance

Stabilus is known for OE-focused motion control components, and the Lift-O-Mat design is built for precise, repeatable hood support performance. Part number 4B-552852 is engineered to match the specified Ford Ranger application with controlled damping and consistent operation.
