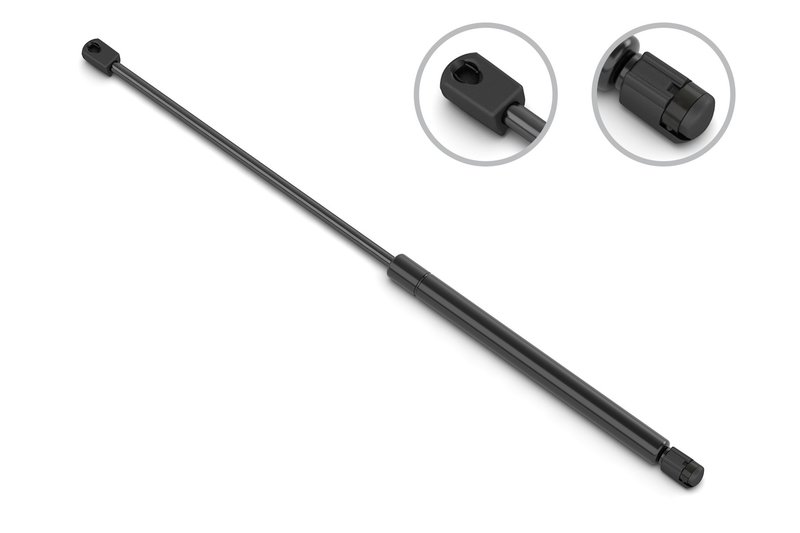

Stabilus 4B-600184 Hood Lift Support
| Brand | Stabilus 4B-600184 |
|---|---|
| 10035 | 0.315 |
| 10035 | 8 |
| 10036 | 0.394 |
| 10036 | 10 |
| Compressed Length | 243.5 |
| Compressed Length | 9.59 |
| End 1 Type | Ball socket |
| End 2 Type | Ball socket |
| Type | Gas |
| Maximum Force | 325 |
| Maximum Force | 73 |
| Mounting Hardware Included | No |
| Cylinder Outside Diameter | 0.709 |
| Cylinder Outside Diameter | 18 |
| Extended Length | 15.1 |
| Extended Length | 383.5 |
| End 1 Material | Nylon |
| End 2 Material | Nylon |
| Stroke Length | 140 |
| Stroke Length | 5.51 |
| Inner Shaft Diameter | 0.315 |
| Inner Shaft Diameter | 8 |
| EXT_Agricultural Equipment | N |
| EXT_Application Specific | Y |
| EXT_CarLight Truck | Y |
| EXT_Engine Specific | N |
| EXT_Heavy Truck | N |
| EXT_High Performance | N |
| EXT_IndustrialOff Highway | N |
| EXT_Marine | N |
| Fits | Tesla · 3 vehicles |
Dynamic damping. Controls hood motion with a smooth, gradual stop.
Ball socket ends. Uses nylon end materials for secure attachment points.
Application-specific. Engineered for precise motion control in the listed use case.
Cross-references Stabilus 4B-600184, 586559 and 600184 for the same application. See all 7.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Overview
The Stabilus Lift-O-Mat hood lift support is an application-specific gas strut built for controlled hood motion. It uses dynamic damping to slow extension smoothly and bring the hood to a gentle stop with less abrupt impact. Fits 2021-2023 Tesla S, N/A.
Key Features
- Lift-O-Mat dynamic damping for smooth, controlled hood movement.
- Ball socket ends with nylon end materials for secure attachment points.
- Gas-charged design with a 325 maximum force rating.
- Application-specific construction for precise motion control.
- Stabilus part number 4B-600184 for direct identification.
Detailed Description
Stabilus engineered this hood lift support with a velocity manifold groove in the tube wall to regulate gas flow around the piston. That design helps the support extend with application-specific damping and finish the stroke with a controlled stop. The result is refined hood operation that aligns with OE-style motion control expectations. This part number, 4B-600184, is listed for 2021-2023 Tesla S applications and is also referenced under 586559, 600184, 875984, 981632, 1586548-00-C, and 158654800C for the same application. For Tesla S hood support replacement, 4B-600184 provides a precise gas strut solution with ball socket ends and nylon end materials.
Common Issues It Can Address
- Hood that drops too quickly when opened.
- Weak lift support that no longer holds the hood in place.
- Uneven or inconsistent hood opening motion.
- Harsh stop at the end of hood travel.
- Loss of controlled damping from a worn gas strut.
Installation Notes and Tips
Verify the existing support’s compressed length, extended length, and end style before installation. This unit uses ball socket ends and is application-specific, so matching the original geometry is important for proper hood operation. Mounting hardware is not included.
Quality Assurance
Stabilus Lift-O-Mat products are engineered with dynamic damping technology and OE-focused motion control. Part number 4B-600184 is built for precise, reliable hood support performance in the listed Tesla S applications.
| Year | Make | Model | Notes |
|---|---|---|---|
| 2023 | Tesla | S | — |
| 2022 | Tesla | S | — |
| 2021 | Tesla | S | — |
| No rows match your filter. | |||
