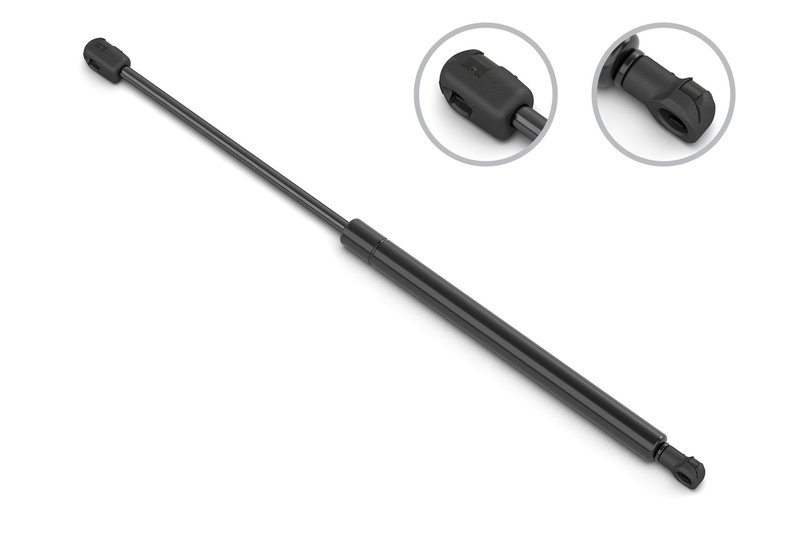

Stabilus 4B-6062SX Hatch Lift Support

Overview of Stabilus 4B-6062SX Gas Spring for Hyundai Tiburon

The Stabilus 4B-6062SX gas spring is engineered for reliable performance and precise fitment on Hyundai Tiburon models. Designed to provide consistent force and smooth operation, this gas spring supports various automotive applications requiring controlled motion.

• Compressed length: 12.835 inches (326 mm)
• Extended length: 20.866 inches (530 mm)
• Rod diameter: 8 mm (0.315 inches)
• Tube diameter: 19 mm
• Force: 540 Newtons (121 lbs)
• Rod end attachment diameter: 10 mm (0.394 inches)
• Rod connection type: Plastic socket

Technical Details and Specifications

The Stabilus 4B-6062SX features a robust design with a 19 mm tube diameter and an 8 mm rod diameter, ensuring durability and stability during operation. The gas spring compresses to 12.835 inches and extends to 20.866 inches, providing a reliable range of motion suitable for the Hyundai Tiburon. With a force rating of 540 Newtons (121 lbs), it delivers consistent support for applications requiring controlled lifting or dampening. The rod end uses a plastic socket connection with a 10 mm diameter, facilitating secure attachment and smooth articulation.

Compatible Applications and Problem Solving

This gas spring is specifically compatible with Hyundai Tiburon vehicles, making it a precise replacement part for related suspension or hatch support systems. It addresses common issues such as:

• Weak or failing gas springs causing difficulty in opening or holding hatches or panels
• Inconsistent or jerky motion during lift or support operations
• Wear or damage to rod end attachments leading to instability
• Loss of force resulting in inadequate support or safety concerns

Installation Notes and Tips

When installing the Stabilus 4B-6062SX gas spring on a Hyundai Tiburon, ensure the following:

• Verify the compressed and extended lengths match the original equipment specifications
• Use appropriate tools to avoid damage to the plastic socket rod connection
• Install with the rod end facing downward to prevent premature wear
• Check for secure attachment at both ends to maintain proper function

Quality Assurance and Warranty

Stabilus gas springs are manufactured to meet stringent quality standards, ensuring reliable performance and durability. While specific warranty details for part number 4B-6062SX may vary, Stabilus typically offers coverage against manufacturing defects. It is recommended to consult product documentation or authorized sources for exact warranty terms related to this gas spring.
