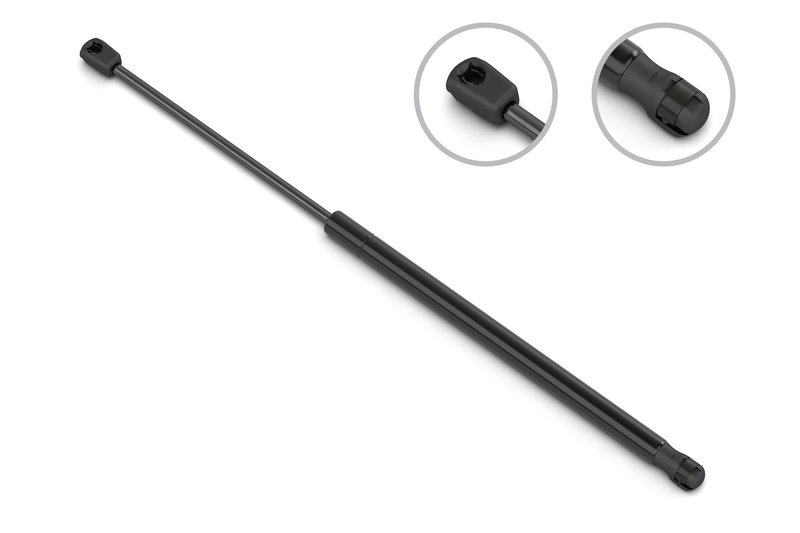

Stabilus 4B-633381 Hood Lift Support

Reliable Hood Lift Support for Chevrolet and GMC Trucks

The Stabilus 4B-633381 Hood Lift Support is engineered to provide consistent and smooth hood operation for Chevrolet Canyon and GMC Colorado models. Designed with precise dimensions and force ratings, this hood lift support ensures safe and controlled hood lifting and holding.

• Compatible with Chevrolet Canyon and GMC Colorado trucks
• Compressed length: 16.22 inches (412 mm)
• Extended length: 20.945 inches (532 mm)
• Rod diameter: 8 mm (0.315 inches)
• Tube diameter: 18 mm
• Force rating: 245 Newtons (55 lbs)
• Rod connection and shaft connection use durable plastic sockets

Technical Specifications and Design Details

This hood lift support from Stabilus features a compressed length of 16.22 inches and extends up to 20.945 inches, providing the necessary range for proper hood positioning on Chevrolet Canyon and GMC Colorado vehicles. The rod diameter measures 8 mm, while the tube diameter is 18 mm, ensuring structural integrity and smooth operation. The force exerted by the gas spring is rated at 245 Newtons (55 lbs), which is calibrated to support the hood weight safely without excessive effort. Both the rod and shaft connections utilize plastic sockets to reduce wear and provide reliable attachment points.

Applications and Problem Solving

• Replaces worn or weak hood lift supports on Chevrolet Canyon and GMC Colorado trucks
• Prevents hood from slamming shut unexpectedly
• Eliminates difficulty in lifting heavy hoods
• Restores smooth and controlled hood opening and closing
• Improves safety during engine bay access

Installation Notes and Tips

Installation of the Stabilus 4B-633381 hood lift support is straightforward and requires no additional hardware kit. Ensure the plastic socket connections are securely attached to the hood and body mounting points. It is recommended to replace both hood lift supports simultaneously to maintain balanced hood operation. Verify the compressed and extended lengths match the original parts for proper fitment on Chevrolet Canyon and GMC Colorado models.

Quality Assurance and Warranty

Stabilus is a recognized manufacturer of gas springs and lift supports, known for consistent quality and durability. This hood lift support is manufactured to meet OEM specifications for Chevrolet and GMC trucks. While specific warranty details are not provided, Stabilus products typically come with manufacturer-backed quality assurance to ensure reliable performance.
