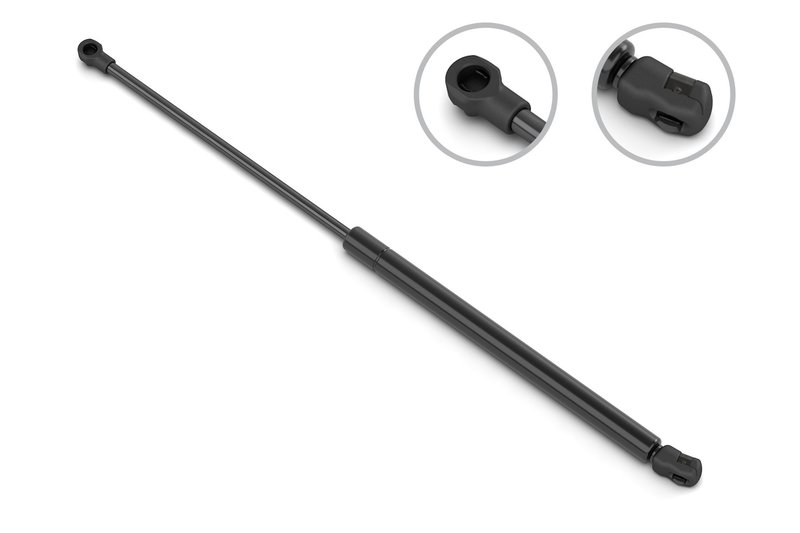

Stabilus 4B-750240 Hood Lift Support

Overview of Stabilus Hood Lift Support 4B-750240

The Stabilus hood lift support 4B-750240 is designed specifically for Toyota 4Runner models, providing reliable and consistent hood support. Engineered to precise specifications, this hood lift support ensures smooth operation and secure positioning of the vehicle's hood.

• Compatible with Toyota 4Runner models
• Compressed length: 10.748 inches (273 mm)
• Extended length: 17.795 inches (452 mm)
• Rod diameter: 8 mm (0.315 inches)
• Tube diameter: 18 mm
• Force rating: 350 N (79 lbs)
• Rod end attachment diameter: 10 mm (0.394 inches)
• Plastic socket rod and shaft connections for durability
• Includes hardware kit number 553327 for installation

Detailed Product Description

The Stabilus 4B-750240 hood lift support is engineered to provide consistent force and smooth operation for the Toyota 4Runner hood. With a compressed length of 10.748 inches and an extended length of 17.795 inches, this gas spring offers the optimal range of motion for secure hood positioning. The rod diameter of 8 mm and tube diameter of 18 mm contribute to the structural integrity and durability of the support. The force rating of 350 Newtons (79 pounds) ensures sufficient lift assistance while maintaining controlled hood movement. Plastic socket connections on both the rod and shaft ends provide reliable attachment points that resist wear and corrosion. This part is designed specifically for body hood applications and is not intended for engine-specific or heavy truck use.

Common Uses and Problem Solving

• Replaces worn or weak hood lift supports on Toyota 4Runner vehicles
• Prevents hood from slamming shut unexpectedly
• Eliminates difficulty in lifting or holding the hood open
• Restores smooth and controlled hood operation
• Addresses issues with hood alignment and stability during maintenance

Installation Notes and Tips

• Ensure compatibility with Toyota 4Runner before installation
• Use the included hardware kit 553327 for secure mounting
• Carefully remove the old lift support to avoid damage to hood or mounting points
• Verify the orientation of the rod and tube for proper function
• Test hood operation after installation to confirm smooth movement and secure hold

Quality Assurance and Warranty

Stabilus is a recognized manufacturer of gas springs and lift supports, known for precision engineering and durability. The 4B-750240 hood lift support undergoes rigorous quality control to meet OEM standards. While specific warranty details are not provided here, Stabilus products typically come with manufacturer-backed warranties covering defects in materials and workmanship. For warranty information, consult the product documentation or Stabilus directly.
