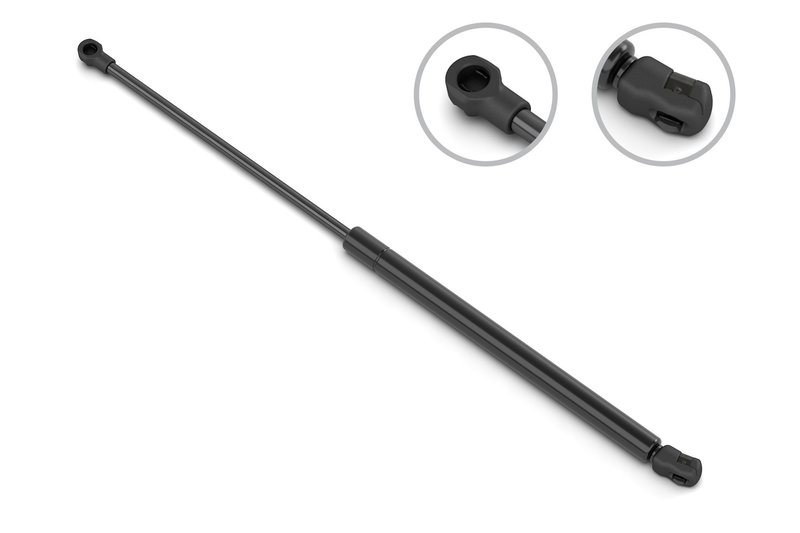

Stabilus 4B-7628LW Hatch Lift Support

Overview of Stabilus 4B-7628LW Gas Spring for Volkswagen Models

The Stabilus 4B-7628LW gas spring is engineered for reliable performance in select Volkswagen vehicles, including the Golf, GTI, Jetta, Passat, and R32. Designed to provide consistent force and smooth operation, this gas spring supports various automotive applications requiring precise motion control.

• Compressed length: 11.575 inches (294 mm)
• Extended length: 19.685 inches (500 mm)
• Rod diameter: 8 mm (0.315 inches)
• Tube diameter: 18 mm
• Force: 500 Newtons (112 lbs)
• Rod end attachment diameter: 10 mm (0.394 inches)
• Rod connection type: Plastic socket

Technical Details and Specifications

The Stabilus 4B-7628LW features a robust design with an 8 mm rod diameter and an 18 mm tube diameter, providing a balanced combination of strength and compact size. Its compressed length measures 11.575 inches (294 mm), extending to 19.685 inches (500 mm) when fully deployed. The gas spring delivers a force of 500 Newtons (112 lbs), suitable for controlled lifting and dampening tasks. The rod end uses a plastic socket connection with a 10 mm diameter, ensuring secure attachment and smooth articulation.

Compatible Volkswagen Models and Applications

This gas spring is compatible with multiple Volkswagen models, including the Golf, GTI, Jetta, Passat, and R32. It is designed for applications requiring precise force and motion control, such as hood supports, trunk lifts, or other automotive components where gas springs are utilized.

• Supports smooth opening and closing of hoods and trunks
• Maintains consistent force for reliable operation
• Reduces wear on mechanical components by absorbing shocks
• Prevents sudden closures that could cause damage or injury
• Enhances vehicle component longevity through controlled motion

Installation Notes and Tips

When installing the Stabilus 4B-7628LW gas spring, ensure the plastic socket connections are properly seated on the mounting points. Verify that the compressed and extended lengths match the vehicle’s specifications to avoid improper fitment. Lubricate pivot points if necessary and avoid overextending the gas spring beyond its specified limits to maintain optimal performance.

Quality Assurance and Warranty Information

Stabilus gas springs are manufactured to meet stringent quality standards, ensuring durability and consistent performance. While specific warranty details for part number 4B-7628LW should be confirmed with the manufacturer or authorized distributor, Stabilus typically offers coverage against defects in materials and workmanship under normal use conditions.
