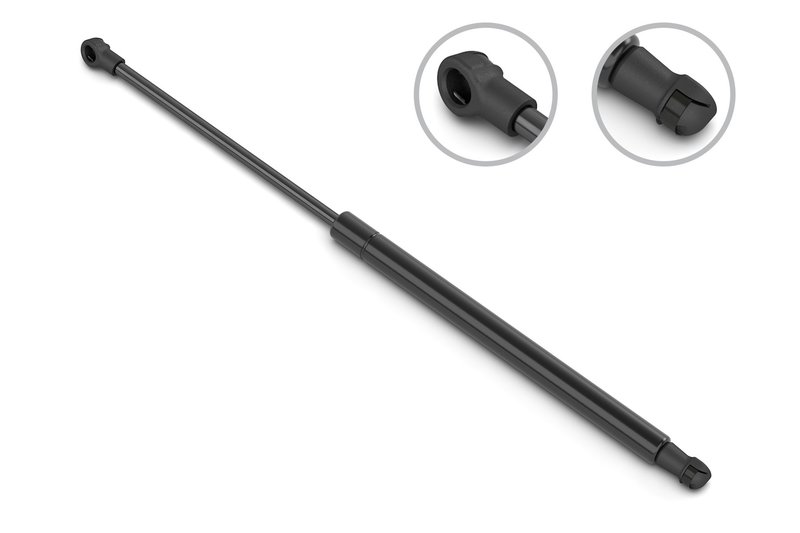

Stabilus 4B-801645 Hatch Lift Support

6 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$27.98Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Fitment: Toyota, Matrix
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Hatch Lift Support options

Stabilus 4B-801645 Gas Spring for Toyota Matrix

Stabilus 4B-801645 is a gas spring with a 455 N (102 lb) force rating, built with plastic socket connections on both ends for a direct OE-style fit. It measures 285.5 mm compressed length and 454.5 mm extended length, with an 8 mm rod diameter and 19 mm tube diameter.

Fits 2009-2014 Toyota Matrix, N/A. This Stabilus 4B-801645 application is also cross-referenced to BBB Industries 7133 for the same vehicle fitment.

Key Features

  • Stabilus gas spring, part number 4B-801645
  • 455 N / 102 lb force rating
  • Compressed length: 285.5 mm (11.240 in)
  • Extended length: 454.5 mm (17.894 in)
  • 8 mm rod diameter and 19 mm tube diameter
  • Plastic socket rod and tube connections
  • OE-style dimensions for Toyota Matrix fitment

Detailed Description

Stabilus 4B-801645 is engineered for 2009-2014 Toyota Matrix models and matches the listed OE-style dimensions for a precise replacement. The plastic socket rod and tube ends support a direct connection style, while the 455 N force rating helps restore controlled lift and hold performance for the supported application. If you are searching for a Toyota Matrix gas spring replacement, Stabilus 4B-801645 provides the dimensional and connection details needed for a proper match.

Common Issues This Part May Address

  • Liftgate, hatch, or panel that no longer stays open
  • Weak or slow opening action
  • Uneven or inconsistent support during movement
  • Loss of holding force from a worn gas spring
  • Noise or binding caused by an aging support strut

Installation Notes and Tips

Verify compressed length, extended length, force rating, and socket style against the original part before installation. Confirm the mounting points on the vehicle and replace only with the correct application for the Toyota Matrix. After installation, cycle the supported panel several times to confirm smooth operation and secure attachment at both ends.

Quality Assurance

Stabilus is a recognized OE supplier in gas spring and lift support applications, and this part is built to match the listed specifications for the intended vehicle fitment. Use the part number 4B-801645 to confirm the correct replacement before ordering.

BrandStabilus
Part Number4B-801645
Y
Y
Body0.748
Compressed Length11.240
Compressed Length285.5
Extended Length17.894
Extended Length454.5
Force (N)455
Force Lbs102
Hardware KitNO
Rod ConnectionPLASTIC SOCKET
Rod Dia (IN)0.315
Rod Diameter8
Rod End Attachment Dia (IN)0.394
Rod End Attachment Dia (MM)10
Shaft0.315
Shaft ConnectionPLASTIC SOCKET
Tube ConnectionPLASTIC SOCKET
Tube Dia (IN)0.748
Tube Diameter19
Tube End Attach Dia (IN)0.394
Tube End Attach Dia (mm)10

This part fits 6 vehicles. Search below:

YearMakeModelPositionNotes
2014ToyotaMatrixN/A
2013ToyotaMatrixN/A
2012ToyotaMatrixN/A
2011ToyotaMatrixN/A
2010ToyotaMatrixN/A
2009ToyotaMatrixN/A

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
