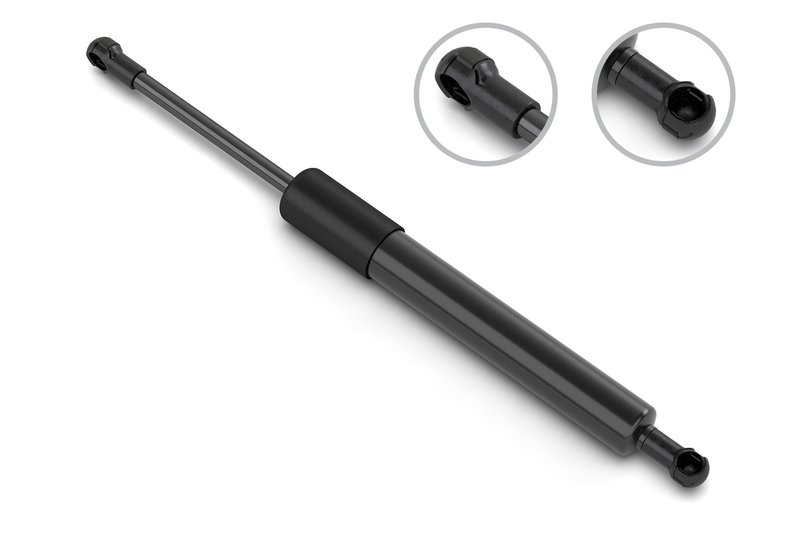

Stabilus 4B-802601 Hatch Lift Support
Stabilus 4B-802601 Gas Strut Overview
The Stabilus 4B-802601 gas strut is an OE-style lift support built for controlled opening and closing of the rear liftgate on select Toyota Highlander models. With a 875 N (197 lb) force rating, metal socket ends, and compact dimensions, it is specified for consistent liftgate support and smooth operation.
- Brand: Stabilus
- Part number: 4B-802601
- Force rating: 875 N / 197 lb
- Extended length: 20.157 in (512 mm)
- Compressed length: 13.228 in (336 mm)
- Rod diameter: 0.394 in (10 mm)
- Tube diameter: 0.866 in (22 mm)
- Rod connection: metal socket
- Tube connection: metal socket
- Cross-reference: Monroe Shocks & Struts 172286
Fitment Details
Fits 2008-2009 Toyota Highlander, w/ Power Liftgate. Fits 2010-2013 Toyota Highlander, Exc. Japan Built Vehicle (Exc. Hybrid w/Power Liftgate)(Exc. 9 Speaker Audio System).
This Stabilus 4B-802601 lift support is listed for Toyota Highlander rear liftgate applications and matches the OE-style dimensions and socket-style attachment points used on the specified vehicles. The part number 4B-802601 is also referenced by several interchange numbers, including 819-7063 and 612260, for the same application.
What It Helps Fix
- Liftgate that drops too quickly when opened
- Rear hatch that will not stay raised
- Weak or uneven liftgate support
- Hard-to-lift tailgate operation
- Noisy or worn gas strut performance
Installation Notes
Verify the vehicle year, liftgate configuration, and exclusions before ordering. Confirm the extended length, compressed length, and socket-style end fittings match the original support before installation. Replace only with the correct application for the rear liftgate on the listed Toyota Highlander models.
Quality Assurance
Stabilus is an established OE supplier of gas springs and lift supports, and this part is built to match the specified force and dimensional requirements for the listed applications.
| Brand | Stabilus |
|---|---|
| Part Number | 4B-802601 |
| Y | |
| Y | |
| Body | 0.866 |
| Compressed Length | 13.228 |
| Compressed Length | 336 |
| Extended Length | 20.157 |
| Extended Length | 512 |
| Force (N) | 875 |
| Force Lbs | 197 |
| Hardware Kit | NO |
| Rod Connection | METAL SOCKET |
| Rod Dia (IN) | 0.394 |
| Rod Diameter | 10 |
| Rod End Attachment Dia (IN) | 0.394 |
| Rod End Attachment Dia (MM) | 10 |
| Shaft | 0.394 |
| Shaft Connection | METAL SOCKET |
| Tube Connection | METAL SOCKET |
| Tube Dia (IN) | 0.866 |
| Tube Diameter | 22 |
| Tube End Attach Dia (IN) | 0.394 |
| Tube End Attach Dia (mm) | 10 |
This part fits 6 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2013 | Toyota | Highlander | N/A | Exc.Japan Built Vehicle (Exc. Hybrid w/Power Liftgate)(Exc. 9 Speaker Audio System) |
| 2012 | Toyota | Highlander | N/A | Exc.Japan Built Vehicle (Exc. Hybrid w/Power Liftgate)(Exc. 9 Speaker Audio System) |
| 2011 | Toyota | Highlander | N/A | Exc.Japan Built Vehicle (Exc. Hybrid w/Power Liftgate)(Exc. 9 Speaker Audio System) |
| 2010 | Toyota | Highlander | N/A | Exc.Japan Built Vehicle (Exc. Hybrid w/Power Liftgate)(Exc. 9 Speaker Audio System) |
| 2009 | Toyota | Highlander | N/A | w/ Power Liftgate |
| 2008 | Toyota | Highlander | N/A | w/ Power Liftgate |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
