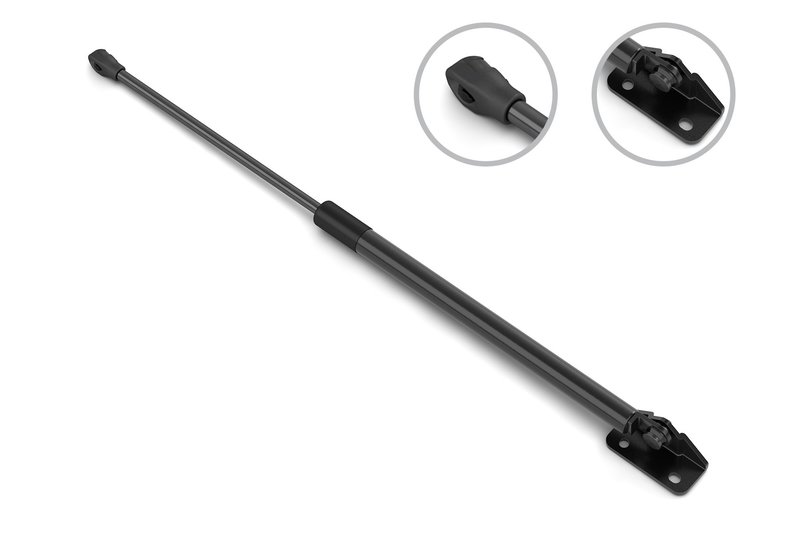

Stabilus 4B-806192 Liftgate Lift Support
| Brand | Stabilus 4B-806192 |
|---|---|
| 10035 | 0.394 |
| 10035 | 10 |
| Compressed Length | 11.81 |
| Compressed Length | 300 |
| End 1 Type | Ball socket |
| End 2 Type | Blade w/bracket |
| Type | Gas |
| Maximum Force | 106 |
| Maximum Force | 470 |
| Mounting Hardware Included | No |
| Cylinder Outside Diameter | 0.709 |
| Cylinder Outside Diameter | 18 |
| Extended Length | 18.90 |
| Extended Length | 480 |
| End 1 Material | Nylon |
| End 2 Material | Steel |
| Stroke Length | 180 |
| Stroke Length | 7.09 |
| Inner Shaft Diameter | 0.315 |
| Inner Shaft Diameter | 8 |
| EXT_Agricultural Equipment | N |
| EXT_Application Specific | Y |
| EXT_CarLight Truck | Y |
| EXT_Engine Specific | N |
| EXT_Heavy Truck | N |
| EXT_High Performance | N |
| EXT_IndustrialOff Highway | N |
| EXT_Marine | N |
| EXT_Medium Truck | N |
| EXT_MotorCycleRV | N |
| Fits | Mitsubishi · 22 vehicles |
Dynamic damping. Controls lift motion for a smoother, more precise stop.
Gas-charged design. Provides consistent liftgate support with application-specific tuning.
OE-focused engineering. Lift-O-Mat technology is specified by leading automakers.
Cross-references Carlson 7027, Lesjofors 8159232 and Stabilus 4B-806192 for the same application. See all 22.
Liftgate Support for Mitsubishi Applications
This Stabilus liftgate lift support is an application-specific gas strut built for controlled opening and closing action. It uses Lift-O-Mat dynamic damping to deliver smooth motion and a gentle stop, making it a direct service part for select Mitsubishi liftgate applications.
Key Features
- Lift-O-Mat dynamic damping for controlled motion and reduced impact at the end of travel
- Gas-charged design with application-specific tuning
- Ball socket and blade-with-bracket end styles for the listed fitments
- Nylon and steel end materials for durable attachment points
- Compressed length of 11.81 in. and extended length of 18.90 in.
- Maximum force rating of 106 lb for liftgate support
Detailed Description
Stabilus 4B-806192 is a gas lift support engineered for precise liftgate control. The Lift-O-Mat design uses dynamic damping to regulate extension speed and create a smoother closing stop than conventional hydraulic damping. For Mitsubishi Outlander Sport, Mitsubishi RVR, and Mitsubishi ASX applications, this part number 4B-806192 provides the motion control needed for consistent liftgate operation.
The support measures 11.81 inches compressed, 18.90 inches extended, and 7.09 inches of stroke. It features a ball socket on one end and a blade with bracket on the other, with nylon and steel end construction. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Helps Solve
- Liftgate that drops too quickly
- Liftgate that does not stay open properly
- Uneven or inconsistent opening effort
- Harsh closing impact at the end of travel
- Worn gas strut performance on the liftgate
Installation Notes and Tips
Verify the listed fitment before installation. Fits 2011-2020 Mitsubishi Outlander Sport, N/A, w/ bracket. Fits 2011-2019 Mitsubishi RVR, N/A, w/ bracket. Fits 2013-2015 Mitsubishi ASX, N/A, w/ bracket. Match the end styles and compressed/extended lengths to the original support before replacement. Part number 4B-806192 should be confirmed against the existing lift support and mounting points prior to service.
Quality Assurance
Stabilus Lift-O-Mat products are engineered with dynamic damping technology and OE-focused design standards used by leading automakers for controlled motion and consistent performance.
| Year | Make | Model | Notes |
|---|---|---|---|
| 2020 | Mitsubishi | Outlander Sport | w/ bracket |
| 2019 | Mitsubishi | Outlander Sport | w/ bracket |
| 2019 | Mitsubishi | RVR | w/ bracket |
| 2018 | Mitsubishi | Outlander Sport | w/ bracket |
| 2018 | Mitsubishi | RVR | w/ bracket |
| 2017 | Mitsubishi | Outlander Sport | w/ bracket |
| 2017 | Mitsubishi | RVR | w/ bracket |
| 2016 | Mitsubishi | Outlander Sport | w/ bracket |
| 2016 | Mitsubishi | RVR | w/ bracket |
| 2015 | Mitsubishi | ASX | w/ bracket |
| 2015 | Mitsubishi | Outlander Sport | w/ bracket |
| 2015 | Mitsubishi | RVR | w/ bracket |
| 2014 | Mitsubishi | ASX | w/ bracket |
| 2014 | Mitsubishi | Outlander Sport | w/ bracket |
| 2014 | Mitsubishi | RVR | w/ bracket |
| 2013 | Mitsubishi | ASX | w/ bracket |
| 2013 | Mitsubishi | Outlander Sport | w/ bracket |
| 2013 | Mitsubishi | RVR | w/ bracket |
| 2012 | Mitsubishi | Outlander Sport | w/ bracket |
| 2012 | Mitsubishi | RVR | w/ bracket |
| 2011 | Mitsubishi | Outlander Sport | w/ bracket |
| 2011 | Mitsubishi | RVR | w/ bracket |
