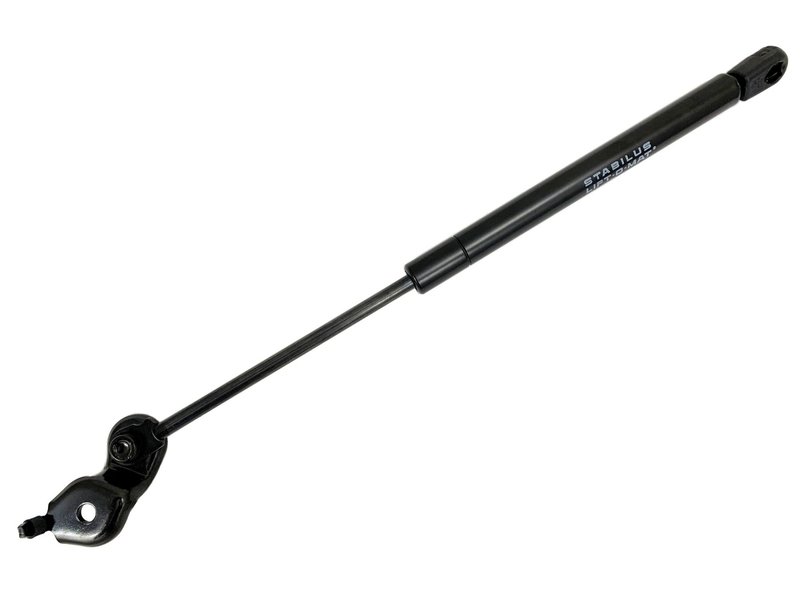

Stabilus 4B-8266XH Hood Lift Support - Left

Overview of Stabilus Hood Lift Support for Toyota Avalon

The Stabilus 4B-8266XH Hood Lift Support is designed specifically for the Toyota Avalon, providing reliable and consistent hood support. Engineered to precise specifications, this hood lift support ensures smooth operation and secure hood positioning.

• Compatible with Toyota Avalon models
• Part number: 4B-8266XH
• Compressed length: 242.5 mm (9.547 inches)
• Extended length: 379 mm (14.921 inches)
• Rod diameter: 8 mm (0.315 inches)
• Tube diameter: 18 mm
• Force: 407 N (92 lbs)
• Rod connection: Metal blade with bracket
• No hardware kit included

Technical Specifications and Features

This hood lift support features a rod diameter of 8 mm and a tube diameter of 18 mm, providing a balanced strength-to-weight ratio suitable for the Toyota Avalon hood. The compressed length measures 242.5 mm (9.547 inches), while the extended length reaches 379 mm (14.921 inches), allowing for smooth hood lifting and secure holding. The force rating of 407 Newtons (92 pounds) ensures adequate support to hold the hood open safely during maintenance or inspection. The rod end attachment uses a metal blade with bracket connection, offering durability and reliable fitment.

Application and Problem Solving

• Supports the hood securely during vehicle maintenance
• Prevents sudden hood closure that can cause injury or damage
• Replaces worn or weak hood lift supports on Toyota Avalon
• Eliminates hood rattling or instability while open
• Restores proper hood operation and ease of use

Installation Notes and Tips

Installation of the Stabilus 4B-8266XH hood lift support is straightforward for Toyota Avalon owners familiar with basic automotive maintenance. Ensure the vehicle is parked on a level surface and the hood is safely supported during removal of the old lift support. The metal blade with bracket rod connection requires proper alignment with the hood and body mounting points. No additional hardware kit is included, so retain existing mounting clips or brackets. Verify the compressed and extended lengths match the original part to ensure correct fitment.

Quality Assurance and Warranty

Stabilus is a recognized manufacturer of automotive lift supports, known for precision engineering and durability. While specific warranty details for part number 4B-8266XH are not provided, Stabilus products typically meet or exceed OEM standards for performance and longevity. This hood lift support is manufactured to provide consistent force and reliable operation throughout its service life, supporting safe and effective hood handling on the Toyota Avalon.
