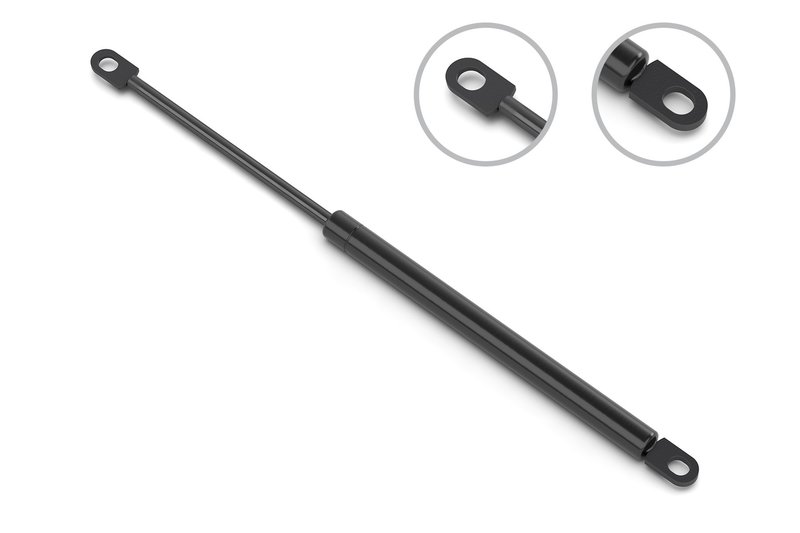

Stabilus 4B-8416IC

Overview of Stabilus 4B-8416IC Gas Spring for Chrysler LeBaron

The Stabilus 4B-8416IC gas spring is engineered to provide reliable support and smooth operation for Chrysler LeBaron vehicles. Designed with precise dimensions and force specifications, this gas spring ensures consistent performance in applications requiring controlled motion and damping.

• Compressed length: 10.551 inches (268 mm)
• Extended length: 16.693 inches (424 mm)
• Rod diameter: 8 mm (0.315 inches)
• Tube diameter: 18 mm
• Force: 285 Newtons (64 lbs)
• Rod connection type: Metal blade
• Rod end attachment diameter: 10 mm (0.394 inches)

Technical Details and Specifications

The Stabilus 4B-8416IC gas spring features a compact body diameter of 0.709 inches, optimized for applications requiring moderate force and precise control. With a compressed length of 10.551 inches and an extended length of 16.693 inches, this gas spring offers a stroke length suitable for various support and damping needs. The rod diameter of 8 mm combined with a metal blade rod connection ensures durability and secure attachment. Rated at 285 Newtons (64 lbs) of force, it provides consistent pressure for smooth operation without excessive resistance.

Compatible Vehicles and Applications

This gas spring is specifically compatible with Chrysler LeBaron models, making it a suitable replacement part for OEM or aftermarket repairs. It is designed for automotive use and is not intended for agricultural, heavy truck, marine, or industrial off-highway applications.

• Supports hood, trunk, or hatch lift assistance
• Replaces worn or damaged gas springs in Chrysler LeBaron
• Provides controlled motion for vehicle panels
• Helps maintain proper positioning of movable components
• Reduces effort required to open or close vehicle parts

Installation Notes and Tips

When installing the Stabilus 4B-8416IC gas spring, ensure the metal blade rod connection is securely fastened to the corresponding mounting points on the Chrysler LeBaron. Verify the orientation of the gas spring matches the original setup to maintain proper function. No additional hardware is included, so use existing mounting components or source compatible fasteners as needed. Proper installation will ensure optimal performance and longevity.

Quality Assurance and Warranty

Stabilus is a recognized manufacturer of gas springs with a focus on quality and reliability. While specific warranty details for part number 4B-8416IC are not provided, Stabilus products typically undergo rigorous testing to meet industry standards. For warranty information, consult the product documentation or contact the manufacturer directly.
