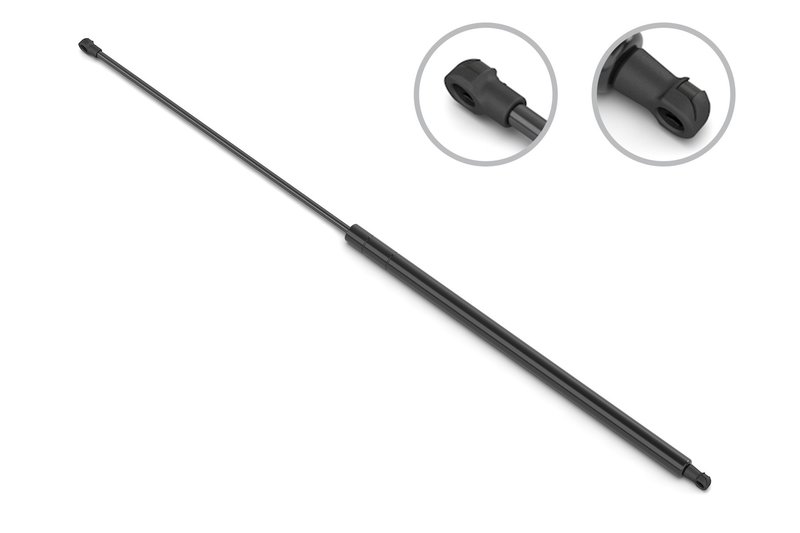

Stabilus 4B-845114 Hatch Lift Support

Stabilus 4B-845114 Gas Strut Overview

Stabilus 4B-845114 is a gas strut built for controlled lift and support in automotive applications. With a 340 N (76 lb) force rating, 428 mm extended length, and 261 mm compressed length, it provides measured motion control for the specified Toyota Yaris fitment.

Fits 2007-2011 Toyota Yaris, N/A, w/o Wiper. This Stabilus 4B-845114 replacement uses plastic socket connections at both ends and matches the listed rod and tube dimensions for direct application matching.

Key Features

• Stabilus part number 4B-845114
• 340 N / 76 lb force rating
• 428 mm extended length and 261 mm compressed length
• 8 mm rod diameter and 18 mm tube diameter
• Plastic socket rod and tube connections
• Rod end and tube end attachment diameter: 10 mm
• Fits 2007-2011 Toyota Yaris, N/A, w/o Wiper

Detailed Description

This gas strut is specified for the 2007-2011 Toyota Yaris without wiper equipment and is identified by Stabilus part number 4B-845114. The unit’s length, force, and socket-style end connections are the key dimensions used to match the original support component and maintain consistent opening and closing behavior. This part cross-references AMS Automotive 7092 and Tuff Support 613352 for the same application.

For buyers searching Toyota Yaris lift support replacement, rear hatch gas strut, or Stabilus 4B-845114 fitment, the listed measurements provide the primary reference points for application matching. The plastic socket design and 10 mm end attachment diameter help confirm compatibility with the intended vehicle setup.

Common Problems This Part Addresses

• Weak or failing lift support that no longer holds position
• Hatch or panel that drops too quickly when opened
• Uneven or inconsistent opening effort
• Loss of controlled support from worn gas strut hardware
• Replacement need for a 2007-2011 Toyota Yaris, N/A, w/o Wiper

Installation Notes and Tips

Verify the compressed length, extended length, force rating, and socket connection style before installation. Compare the existing support to Stabilus 4B-845114 and confirm the vehicle is a 2007-2011 Toyota Yaris without wiper equipment. Check both end attachment points for the 10 mm socket interface and ensure the mounting points are clean and undamaged before fitting.

Quality Assurance

Stabilus is a recognized OE supplier of gas springs and lift supports, and this part is built to match the listed application specifications for dimensional and force-based replacement selection.
