Stabilus 4B-940716 Hatch Lift SupportOE Quality 60-Day Returns
Part #: 4B-940716

Stabilus 4B-940716 Hatch Lift Support

6 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$24.86Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Fitment: Kia, Rio
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Hatch Lift Support options

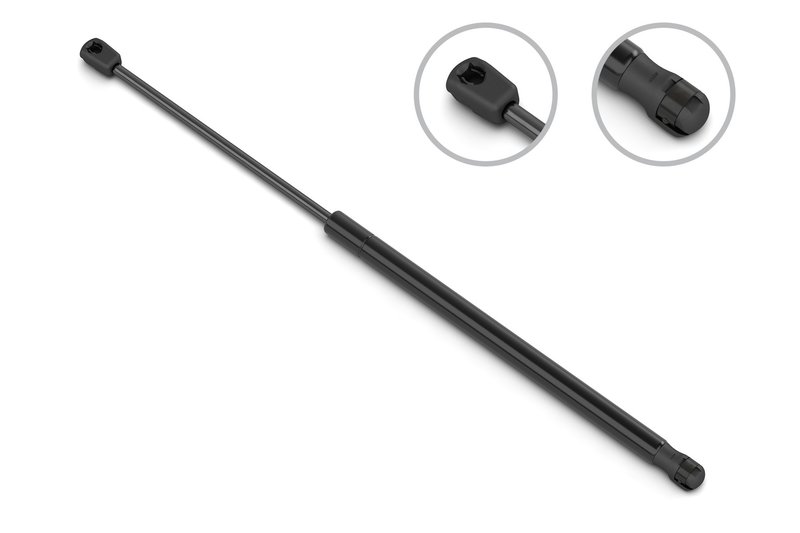

OE-Style Lift Support for Kia Rio

This Stabilus lift support is built for the 2012-2017 Kia Rio and uses a 400 N (90 lb) gas charge to provide controlled opening and closing action. The 4B-940716 measures 492 mm extended and 296 mm compressed, with 8 mm rod diameter and 18 mm tube diameter for a direct-fit replacement application.

Key Features

  • Fits 2012-2017 Kia Rio
  • Stabilus part number 4B-940716
  • 400 N / 90 lb force rating
  • 492 mm extended length and 296 mm compressed length
  • 8 mm rod diameter and 18 mm tube diameter
  • Plastic socket rod and tube connections
  • OE-style dimensions for replacement use

Detailed Product Overview

The Stabilus 4B-940716 is a gas spring/lift support specified for Kia Rio models from 2012 through 2017. Its measured length and force rating are matched to support hatch, hood, or panel movement where the original support has weakened, lost pressure, or no longer holds position correctly. This part also cross-references Tuff Support 612764 for the same application.

Search terms commonly used for this part include Kia Rio lift support 2012-2017, Stabilus 4B-940716 gas strut, and OE replacement hatch support for Kia Rio. The part number 4B-940716 is also referenced in interchange listings for related aftermarket and OE applications.

Common Issues This Part Can Address

  • Weak or failing lift support that no longer holds the panel open
  • Slow or uneven opening and closing movement
  • Drooping hatch, hood, or access panel
  • Loss of gas pressure in the original support
  • Noise or binding caused by worn support hardware or internal wear

Installation Notes and Tips

Verify the extended length, compressed length, force rating, and socket-style end connections before installation. Compare the original support to the Stabilus 4B-940716 to confirm fitment on your Kia Rio. Replace supports in a stable, supported position so the panel does not drop during service.

Quality Assurance

Stabilus is a recognized OE supplier of gas springs and lift supports, and this part is built to match the listed dimensions and force specification for the confirmed Kia Rio fitment.

BrandStabilus
Part Number4B-940716
Y
Y
Body0.709
Compressed Length11.654
Compressed Length296
Extended Length19.370
Extended Length492
Force (N)400
Force Lbs90
Hardware KitNO
Rod ConnectionPLASTIC SOCKET
Rod Dia (IN)0.315
Rod Diameter8
Rod End Attachment Dia (IN)0.394
Rod End Attachment Dia (MM)10
Shaft0.315
Shaft ConnectionPLASTIC SOCKET
Tube ConnectionPLASTIC SOCKET
Tube Dia (IN)0.709
Tube Diameter18
Tube End Attach Dia (IN)0.394
Tube End Attach Dia (mm)10

This part fits 6 vehicles. Search below:

YearMakeModelPositionNotes
2017KiaRioN/A
2016KiaRioN/A
2015KiaRioN/A
2014KiaRioN/A
2013KiaRioN/A
2012KiaRioN/A

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
