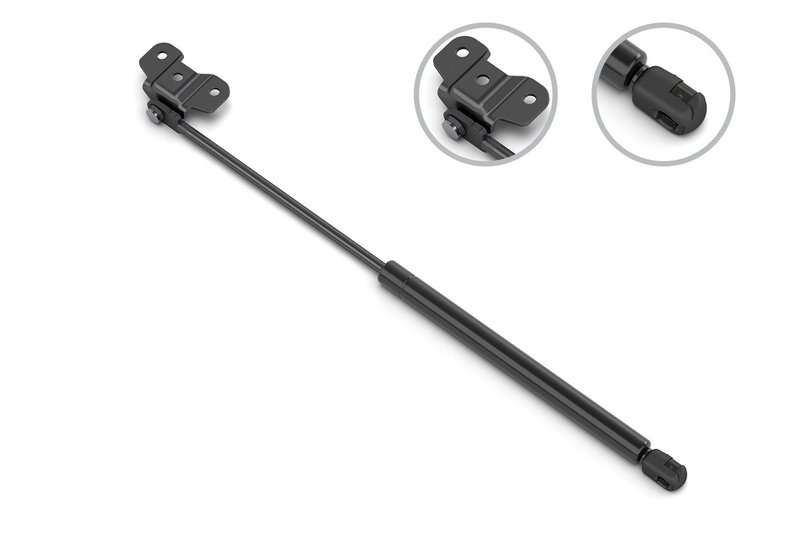

Stabilus 4B-9904VE Hood Lift Support

Overview of Stabilus Hood Lift Support 4B-9904VE

The Stabilus 4B-9904VE Hood Lift Support is designed specifically for Honda Accord models, providing reliable and consistent hood support. Engineered with precise dimensions and force ratings, this hood lift support ensures smooth operation and secure hood positioning.

• Compatible with Honda Accord vehicles
• Compressed length: 10.827 inches (275 mm)
• Extended length: 16.575 inches (421 mm)
• Rod diameter: 8 mm (0.315 inches)
• Tube diameter: 18 mm
• Force rating: 310 N (70 lbs)
• Rod connection: Metal blade with bracket
• Includes hardware kit number 663984

Technical Specifications and Features

The Stabilus 4B-9904VE hood lift support features a rod diameter of 8 mm and a tube diameter of 18 mm, providing a balanced strength-to-weight ratio suitable for the Honda Accord hood. Its compressed length measures 10.827 inches (275 mm), extending to 16.575 inches (421 mm) when fully deployed. The gas spring delivers a force of 310 Newtons (70 pounds), ensuring stable and controlled hood lifting and holding. The rod end attachment uses a metal blade with bracket connection, enhancing durability and secure fitment. This part includes the hardware kit 663984 for installation convenience.

Application and Problem Solving

• Supports smooth and controlled hood opening and closing on Honda Accord models
• Prevents hood from slamming shut, reducing risk of damage or injury
• Replaces worn or weak hood lift supports to restore proper hood function
• Eliminates hood vibration or rattling during vehicle operation
• Ensures consistent hood positioning for maintenance and inspection tasks

Installation Notes and Tips

Installation of the Stabilus 4B-9904VE hood lift support requires removal of the old lift support and attachment of the new unit using the included hardware kit 663984. Ensure the metal blade with bracket rod connection is properly aligned and secured to avoid premature wear. It is recommended to support the hood safely during replacement to prevent accidental closure. Verify the compressed and extended lengths match the original part to confirm correct fitment for the Honda Accord.

Quality Assurance and Warranty

Stabilus is a recognized manufacturer of gas springs and lift supports, known for consistent quality and durability. The 4B-9904VE hood lift support is manufactured to meet OEM specifications for Honda Accord vehicles. While specific warranty details are not provided here, Stabilus products typically come with manufacturer-backed warranties covering defects in materials and workmanship. For warranty information, consult the product documentation or Stabilus directly.
