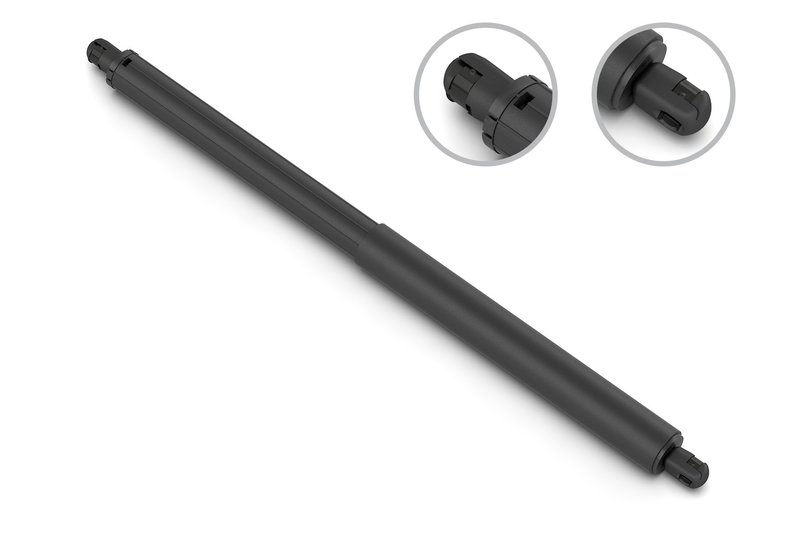

Stabilus 4C-322175 Hatch Lift Support

Overview of Stabilus 4C-322175 Gas Spring for BMW X5

The Stabilus 4C-322175 gas spring is engineered for reliable performance in BMW X5 vehicles. Designed to provide consistent force and smooth operation, this gas spring supports various lifting and dampening applications within the vehicle.

• Compressed length: 362.5 mm (14.272 inches)
• Extended length: 522.5 mm (20.571 inches)
• Rod diameter: 8 mm (0.315 inches)
• Tube diameter: 18 mm
• Force: 365 N (82 lbs)
• Rod connection: Plastic socket
• Compatible specifically with BMW X5 models

Technical Details and Specifications

This Stabilus gas spring features a compressed length of 362.5 mm and extends to 522.5 mm, providing a stroke length suitable for various applications in the BMW X5. The rod diameter measures 8 mm, paired with an 18 mm tube diameter, ensuring durability and proper fitment. The gas spring delivers a force of 365 Newtons (82 pounds), offering controlled support for components requiring lift assistance or dampening. The rod connection utilizes a plastic socket, designed for secure attachment and smooth operation.

Applications and Problem Solving

The Stabilus 4C-322175 gas spring is used primarily in the BMW X5 for supporting hoods, tailgates, or other lift-assist functions. It addresses common issues such as:

• Difficulty in lifting heavy panels or hatches
• Unstable or jerky opening and closing motions
• Wear or failure of original gas springs causing loss of support
• Need for precise force control to prevent damage or injury

Installation Notes and Tips

When installing the Stabilus 4C-322175 gas spring on a BMW X5, ensure the following:

• Verify the orientation of the rod and tube according to manufacturer guidelines
• Use appropriate tools to avoid damage to the plastic socket connections
• Check that the compressed and extended lengths match the original specifications
• Lubricate pivot points if necessary to maintain smooth operation

Quality Assurance and Warranty

Stabilus is a recognized manufacturer of gas springs with a focus on quality and durability. The 4C-322175 part number undergoes rigorous testing to meet OEM standards for fitment and performance in BMW X5 vehicles. While specific warranty details may vary, Stabilus products typically come with manufacturer-backed warranties covering defects in materials and workmanship.
