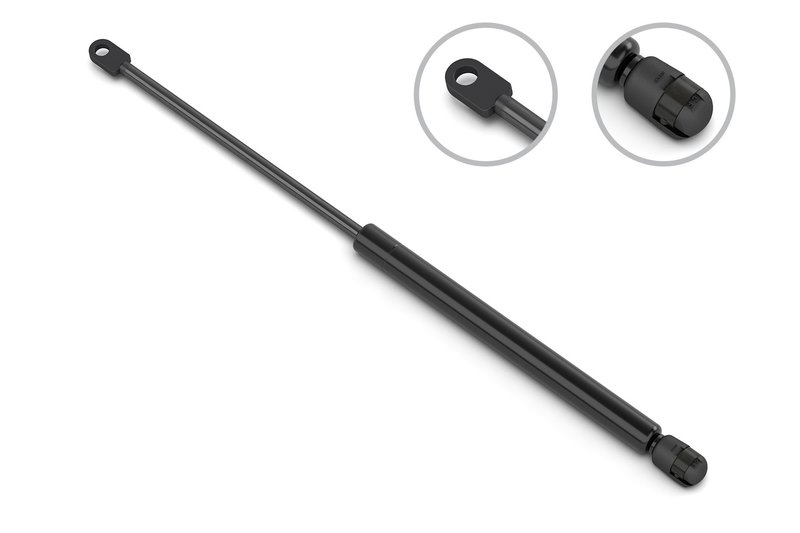

Stabilus 4E-291927 Hatch Lift Support - Right
Stabilus 4E-291927 Gas Spring for Vanagon
The Stabilus 4E-291927 is a gas spring specified for the right side of select Volkswagen Vanagon hatch applications. It is built around OE-style dimensions and attachment points to support controlled opening and closing action on the rear hatch.
- Brand: Stabilus
- Part number: 4E-291927
- Force rating: 300 N / 67 lb
- Extended length: 20.138 in (511.5 mm)
- Compressed length: 12.264 in (311.5 mm)
- Rod diameter: 0.315 in (8 mm)
- Tube diameter: 0.748 in (19 mm)
- Rod connection: metal blade
- Tube connection: plastic socket
- Right-side fitment for select Volkswagen Vanagon hatch applications
Fitment Details
Fits 1982 Volkswagen Vanagon, right, opt. var. opening hatch; from 2/82. Fits 1983-1991 Volkswagen Vanagon, right, opt. var. opening hatch.
This part cross-references part numbers 291927 and 492124 for the same application.
Application and Function
Use this gas spring when the rear hatch on a compatible Volkswagen Vanagon no longer opens or stays in position as expected. The 300 N force rating and OE-style dimensions help restore smooth hatch movement and consistent support on the right side.
- Weak or failing hatch support
- Hatch that drops too quickly
- Uneven opening effort on the right side
- Loss of controlled lift on the rear hatch
- Replacement for worn gas strut hardware on Vanagon hatch applications
Installation Notes
Verify the compressed length, extended length, and end fittings before installation. This Stabilus gas spring uses a metal blade rod connection and plastic socket tube connection, so the mounting points should match the original hatch hardware on the vehicle. Confirm right-side placement before ordering and compare the existing strut to part number 4E-291927.
Quality Assurance
Stabilus is an established OE supplier for gas springs and lift supports, and this part follows the dimensional and force specifications needed for direct replacement use on listed Volkswagen Vanagon applications.
| Brand | Stabilus |
|---|---|
| Part Number | 4E-291927 |
| Y | |
| Y | |
| Body | 0.748 |
| Compressed Length | 12.264 |
| Compressed Length | 311.5 |
| Extended Length | 20.138 |
| Extended Length | 511.5 |
| Force (N) | 300 |
| Force Lbs | 67 |
| Hardware Kit | NO |
| Rod Connection | METAL BLADE |
| Rod Dia (IN) | 0.315 |
| Rod Diameter | 8 |
| Rod End Attachment Dia (IN) | 0.327 |
| Rod End Attachment Dia (MM) | 8.3 |
| Shaft | 0.315 |
| Shaft Connection | METAL BLADE |
| Tube Connection | PLASTIC SOCKET |
| Tube Dia (IN) | 0.748 |
| Tube Diameter | 19 |
| Tube End Attach Dia (IN) | 0.394 |
| Tube End Attach Dia (mm) | 10 |
This part fits 10 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1991 | Volkswagen | Vanagon | Right | opt. var. opening hatch |
| 1990 | Volkswagen | Vanagon | Right | opt. var. opening hatch |
| 1989 | Volkswagen | Vanagon | Right | opt. var. opening hatch |
| 1988 | Volkswagen | Vanagon | Right | opt. var. opening hatch |
| 1987 | Volkswagen | Vanagon | Right | opt. var. opening hatch |
| 1986 | Volkswagen | Vanagon | Right | opt. var. opening hatch |
| 1985 | Volkswagen | Vanagon | Right | opt. var. opening hatch |
| 1984 | Volkswagen | Vanagon | Right | opt. var. opening hatch |
| 1983 | Volkswagen | Vanagon | Right | opt. var. opening hatch |
| 1982 | Volkswagen | Vanagon | Right | opt. var. opening hatch; from 2/82 |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
