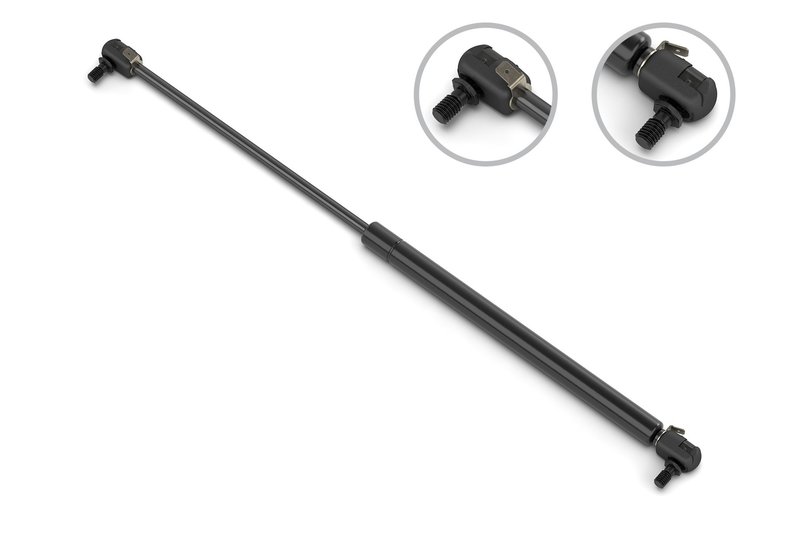

Stabilus 4F-484474 Hatch Lift Support

Overview of Stabilus 4F-484474 Gas Spring

The Stabilus 4F-484474 gas spring is engineered for reliable performance in select Ford, Mercury, and Volkswagen vehicles. Designed to provide consistent force and smooth operation, this gas spring supports applications requiring precise extension and compression lengths.

• Compressed length: 11.811 inches (300 mm)
• Extended length: 19.685 inches (500 mm)
• Rod diameter: 8 mm (0.315 inches)
• Tube diameter: 18 mm
• Force: 350 N (79 lbs)
• Rod end attachment: Plastic socket with ball stud, 10 mm diameter

Technical Specifications and Features

The Stabilus 4F-484474 features a robust design with an 8 mm rod diameter and an 18 mm tube diameter, providing a balanced strength-to-weight ratio. Its compressed length of 11.811 inches (300 mm) and extended length of 19.685 inches (500 mm) make it suitable for applications requiring moderate stroke length. The gas spring delivers a force of 350 Newtons (79 pounds), ensuring smooth and controlled motion. The rod connection utilizes a plastic socket with a ball stud attachment, measuring 10 mm in diameter, facilitating secure mounting and ease of installation.

Compatible Vehicles and Applications

This gas spring is compatible with various Ford, Mercury, and Volkswagen models, including the Ford Bobcat, Mercury Marquis, Grand Marquis, LTD, and Fairmont, as well as the Volkswagen Golf, Pinto, and Zephyr. It is designed for automotive use and is not intended for agricultural, heavy truck, marine, or industrial off-highway applications.

Common Uses and Problem Solving

• Supports hood, trunk, or tailgate lift assistance in compatible Ford, Mercury, and Volkswagen vehicles
• Replaces worn or weak gas springs causing difficulty in opening or closing vehicle panels
• Restores smooth and controlled motion to vehicle components requiring gas spring support
• Addresses issues with inconsistent or insufficient force in existing gas springs
• Improves safety by preventing sudden panel closures or drops

Installation Notes and Tips

Installation of the Stabilus 4F-484474 gas spring requires matching the compressed and extended lengths to the original part specifications. Ensure the plastic socket with ball stud attachment aligns correctly with the mounting points on the vehicle. Avoid forcing the gas spring beyond its designed stroke length to prevent damage. It is recommended to replace gas springs in pairs when applicable to maintain balanced operation.

Quality Assurance and Warranty

Stabilus is a recognized manufacturer of gas springs with a focus on durability and consistent performance. While specific warranty details for part number 4F-484474 are not provided, Stabilus products typically meet industry standards for quality and reliability. Users should verify warranty coverage with the product supplier or manufacturer documentation.
