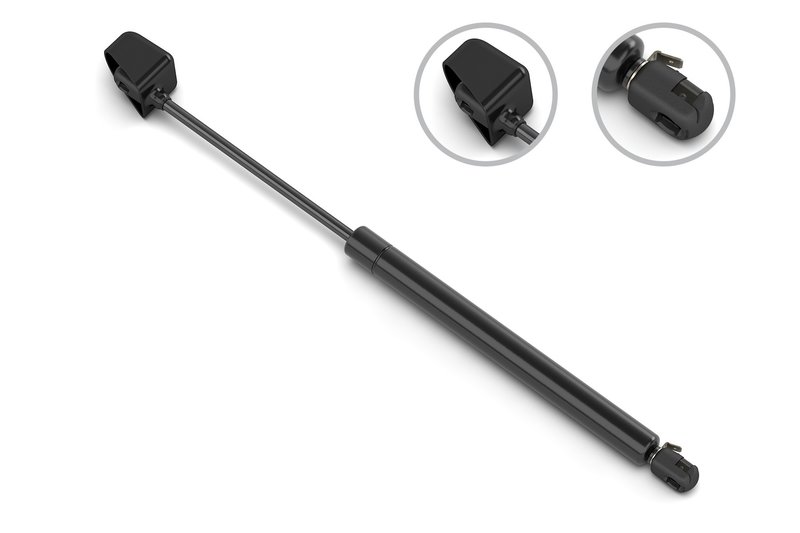

Stabilus 4F-648408 Hatch Lift Support
| Brand | Stabilus 4F-648408 |
|---|---|
| Y | |
| Y | |
| Body | 0.866 |
| Compressed Length | 11.555 |
| Compressed Length | 293.5 |
| Extended Length | 17.500 |
| Extended Length | 444.5 |
| Force (N) | 330 |
| Force Lbs | 74 |
| Hardware Kit | NO |
| Rod Connection | PLASTIC SOCKET |
| Rod Dia (IN) | 0.315 |
| Rod Diameter | 8 |
| Rod End Attachment Dia (IN) | 0.394 |
| Rod End Attachment Dia (MM) | 10 |
| Shaft | 0.315 |
| Shaft Connection | PLASTIC SOCKET |
| Tube Connection | PLASTIC SOCKET |
| Tube Dia (IN) | 0.866 |
| Tube Diameter | 22 |
| Tube End Attach Dia (IN) | 0.268 |
| Tube End Attach Dia (mm) | 6.8 |
| Fits | Chevrolet · 9 vehicles |
Gas-charged lift support. Provides 74 lb of force for smooth, controlled movement.
Plastic socket connections. Simplifies attachment with matching socket ends.
Stabilus engineering. Built by a trusted name in lift support components.
Cross-references AMS Automotive 6508, AMS Automotive 6522 and Focus Auto Parts 86508 for the same application. See all 27.
Stabilus 4F-648408 Gas Spring for Corvette
The Stabilus 4F-648408 is a gas spring built for controlled lift support on select Chevrolet Corvette applications. It uses plastic socket connections at both ends and delivers 330 N of force for smooth, consistent movement.
Key Features
- Brand: Stabilus
- Part number: 4F-648408
- Force rating: 330 N / 74 lb
- Extended length: 17.500 in. (444.5 mm)
- Compressed length: 11.555 in. (293.5 mm)
- Rod diameter: 0.315 in. (8 mm)
- Tube diameter: 0.866 in. (22 mm)
- Plastic socket rod and tube connections
- Direct fit for select 2005-2013 Chevrolet Corvette applications
Detailed Description
This Stabilus gas spring is specified for 2005-2013 Chevrolet Corvette models and is engineered to provide controlled opening and holding force for supported panels or lift-assisted components. The 4F-648408 measures 17.500 inches extended and 11.555 inches compressed, with a 330 N force rating that matches the application requirements for consistent operation. If you are replacing a worn lift support on a Chevrolet Corvette, this part number 4F-648408 offers the dimensions and end fittings needed for a direct replacement.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Helps Address
- Weak or failing lift support force
- Panels that drop too quickly when opened
- Inconsistent holding position on supported components
- Noise or rough movement from a worn gas spring
- Replacement needs on 2005-2013 Chevrolet Corvette lift support applications
Installation Notes and Tips
Verify compressed length, extended length, force rating, and socket-style end fittings before installation. Compare the original support to the Stabilus 4F-648408 to confirm the rod and tube connection style, then install with the vehicle supported and the panel secured. For Chevrolet Corvette applications, confirm the mounting points are clean and free of wear before snapping the plastic sockets into place.
Quality Assurance
Stabilus is a recognized OE supplier of gas springs and lift supports, and this part is built to match the listed dimensions and force specification for the stated Corvette fitment.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2013 | Chevrolet | Corvette | N/A | — |
| 2012 | Chevrolet | Corvette | N/A | — |
| 2011 | Chevrolet | Corvette | N/A | — |
| 2010 | Chevrolet | Corvette | N/A | — |
| 2009 | Chevrolet | Corvette | N/A | — |
| 2008 | Chevrolet | Corvette | N/A | — |
| 2007 | Chevrolet | Corvette | N/A | — |
| 2006 | Chevrolet | Corvette | N/A | — |
| 2005 | Chevrolet | Corvette | N/A | — |
