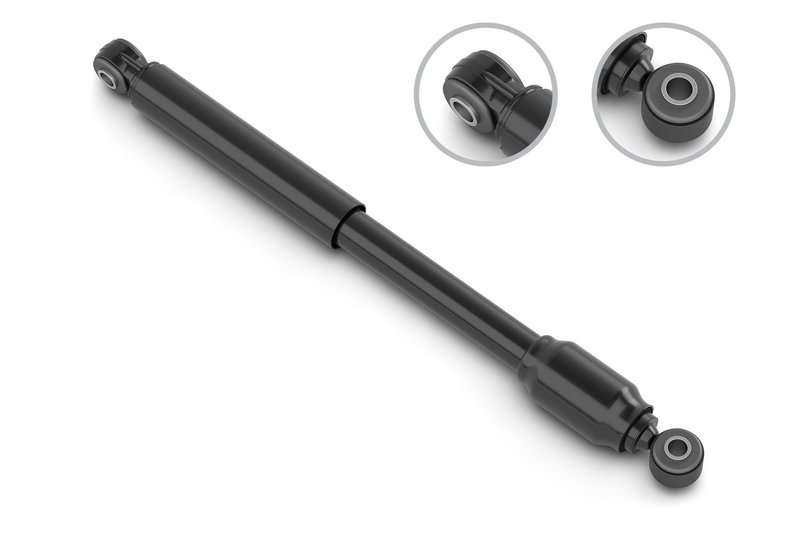

Stabilus 4G-363952 Steering Damper
OE Quality 60-Day Returns
Stabilus

Stabilus 4G-363952 Steering Damper

Brand Stabilus 4G-363952
Y
Y
Body 0.906
Compressed Length 12.992
Compressed Length 330
Extended Length 21.181
Extended Length 538
Force (N) 0
Force Lbs 0
Hardware Kit NO
Rod Connection EYELET WITH BUSHING
Rod Dia (IN) 0.315
Rod Diameter 8
Rod End Attachment Dia (IN) 0.394
Rod End Attachment Dia (MM) 10
Shaft 0.315
Shaft Connection EYELET WITH BUSHING
Tube Connection EYELET WITH BUSHING
Tube Dia (IN) 0.906
Tube Diameter 23
Tube End Attach Dia (IN) 0.394
Tube End Attach Dia (mm) 10
Fits Mercedes-Benz · 71 vehicles

Eyelet with bushing. Provides a secure, cushioned connection at both ends.

Steering damper. Helps reduce steering kickback and smooth out handling.

Stabilus engineering. Built by a brand known for gas spring and damping expertise.

Cross-references Stabilus 4G-363952, Tuff Support 617001 and 008640 for the same application. See all 8.

$55.09Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $55.09
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Steering Damper options

Steering Damper for Mercedes-Benz Applications

This Stabilus steering damper is built for select Mercedes-Benz models from 1977-1991, including the 300D, 300SD, 300TD, 300SE, 300SEL, 300SDL, 350SD, 350SDL, 380SE, 380SEL, 380SEC, 380SL, 380SLC, 420SEL, 500SEC, 500SEL, 560SEC, 560SEL, and 560SL. Part number 4G-363952 is specified with eyelet-with-bushing connections and OE-style dimensions for direct steering system service.

  • Brand: Stabilus
  • Part number: 4G-363952
  • Category: Steering > Steering, Gear and Related Components
  • Part type: Steering damper
  • Compressed length: 12.992 in. / 330 mm
  • Extended length: 21.181 in. / 538 mm
  • Rod diameter: 0.315 in. / 8 mm
  • Tube diameter: 0.906 in. / 23 mm
  • Rod and tube connections: eyelet with bushing
  • Rod end attachment diameter: 0.394 in. / 10 mm
  • Tube end attachment diameter: 0.394 in. / 10 mm

Fitment and Application Details

Fits 1989-1991 Mercedes-Benz 300SE, N/A. Fits 1988-1991 Mercedes-Benz 300SEL, N/A. Fits 1991 Mercedes-Benz 350SD, N/A. Fits 1991 Mercedes-Benz 350SDL, N/A. Fits 1986-1991 Mercedes-Benz 420SEL, N/A. Fits 1986-1991 Mercedes-Benz 560SEC, N/A. Fits 1986-1991 Mercedes-Benz 560SEL, N/A. Fits 1986-1989 Mercedes-Benz 560SL, N/A. Fits 1986-1987 Mercedes-Benz 300SDL, N/A. Fits 1987 Mercedes-Benz 300TD, N/A. Fits 1979-1985 Mercedes-Benz 300TD, N/A. Fits 1978-1985 Mercedes-Benz 300SD, N/A. Fits 1984-1985 Mercedes-Benz 380SE, N/A. Fits 1981-1985 Mercedes-Benz 380SL, N/A. Fits 1984-1985 Mercedes-Benz 500SEC, N/A. Fits 1984-1985 Mercedes-Benz 500SEL, N/A. Fits 1982-1983 Mercedes-Benz 380SEC, N/A. Fits 1981-1983 Mercedes-Benz 380SEL, N/A. Fits 1977-1981 Mercedes-Benz 300D, N/A. Fits 1981 Mercedes-Benz 380SLC, N/A.

This part cross-references Tuff Support 617001 for the same application.

What This Steering Damper Helps Address

  • Steering wheel shake or shimmy on Mercedes-Benz 300D, 300SD, and 300TD models
  • Front-end wander or reduced steering stability at speed
  • Excessive feedback through the steering system over uneven pavement
  • Wear-related damping loss in the steering linkage
  • Noisy or inconsistent steering response from an aging damper

Installation Notes

Verify compressed length, extended length, rod diameter, and eyelet-with-bushing attachment points before installation. Confirm the vehicle’s steering damper mounting style matches the 10 mm end attachment diameter and the listed OE-style dimensions for your Mercedes-Benz chassis. Inspect related steering components for wear during replacement so the new damper can perform as intended.

Quality Assurance

Stabilus is an established OE supplier name in gas spring and damping components, and this steering damper is built to match the listed application and dimensional requirements for service on compatible Mercedes-Benz models. Part number 4G-363952 is identified for direct replacement use in the fitments shown above.

Related reading

This part fits 71 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
1991Mercedes-Benz300SEN/A—
1991Mercedes-Benz300SELN/A—
1991Mercedes-Benz350SDN/A—
1991Mercedes-Benz350SDLN/A—
1991Mercedes-Benz420SELN/A—
1991Mercedes-Benz560SECN/A—
1991Mercedes-Benz560SELN/A—
1990Mercedes-Benz300SEN/A—
1990Mercedes-Benz300SELN/A—
1990Mercedes-Benz420SELN/A—
1990Mercedes-Benz560SECN/A—
1990Mercedes-Benz560SELN/A—
1989Mercedes-Benz300SEN/A—
1989Mercedes-Benz300SELN/A—
1989Mercedes-Benz420SELN/A—
1989Mercedes-Benz560SECN/A—
1989Mercedes-Benz560SELN/A—
1989Mercedes-Benz560SLN/A—
1988Mercedes-Benz300SELN/A—
1988Mercedes-Benz420SELN/A—
1988Mercedes-Benz560SECN/A—
1988Mercedes-Benz560SELN/A—
1988Mercedes-Benz560SLN/A—
1987Mercedes-Benz300SDLN/A—
1987Mercedes-Benz300TDN/A—
1987Mercedes-Benz420SELN/A—
1987Mercedes-Benz560SECN/A—
1987Mercedes-Benz560SELN/A—
1987Mercedes-Benz560SLN/A—
1986Mercedes-Benz300SDLN/A—
1986Mercedes-Benz420SELN/A—
1986Mercedes-Benz560SECN/A—
1986Mercedes-Benz560SELN/A—
1986Mercedes-Benz560SLN/A—
1985Mercedes-Benz300SDN/A—
1985Mercedes-Benz300TDN/A—
1985Mercedes-Benz380SEN/A—
1985Mercedes-Benz380SLN/A—
1985Mercedes-Benz500SECN/A—
1985Mercedes-Benz500SELN/A—
1984Mercedes-Benz300SDN/A—
1984Mercedes-Benz300TDN/A—
1984Mercedes-Benz380SEN/A—
1984Mercedes-Benz380SLN/A—
1984Mercedes-Benz500SECN/A—
1984Mercedes-Benz500SELN/A—
1983Mercedes-Benz300SDN/A—
1983Mercedes-Benz300TDN/A—
1983Mercedes-Benz380SECN/A—
1983Mercedes-Benz380SELN/A—
1983Mercedes-Benz380SLN/A—
1982Mercedes-Benz300SDN/A—
1982Mercedes-Benz300TDN/A—
1982Mercedes-Benz380SECN/A—
1982Mercedes-Benz380SELN/A—
1982Mercedes-Benz380SLN/A—
1981Mercedes-Benz300DN/A—
1981Mercedes-Benz300SDN/A—
1981Mercedes-Benz300TDN/A—
1981Mercedes-Benz380SELN/A—
1981Mercedes-Benz380SLN/A—
1981Mercedes-Benz380SLCN/A—
1980Mercedes-Benz300DN/A—
1980Mercedes-Benz300SDN/A—
1980Mercedes-Benz300TDN/A—
1979Mercedes-Benz300DN/A—
1979Mercedes-Benz300SDN/A—
1979Mercedes-Benz300TDN/A—
1978Mercedes-Benz300DN/A—
1978Mercedes-Benz300SDN/A—
1977Mercedes-Benz300DN/A—
Directly replaces or cross-references 8 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Stabilus — 4G-363952Tuff Support — 6170010086403639520004634832A0004635132SG203005TSG203005
