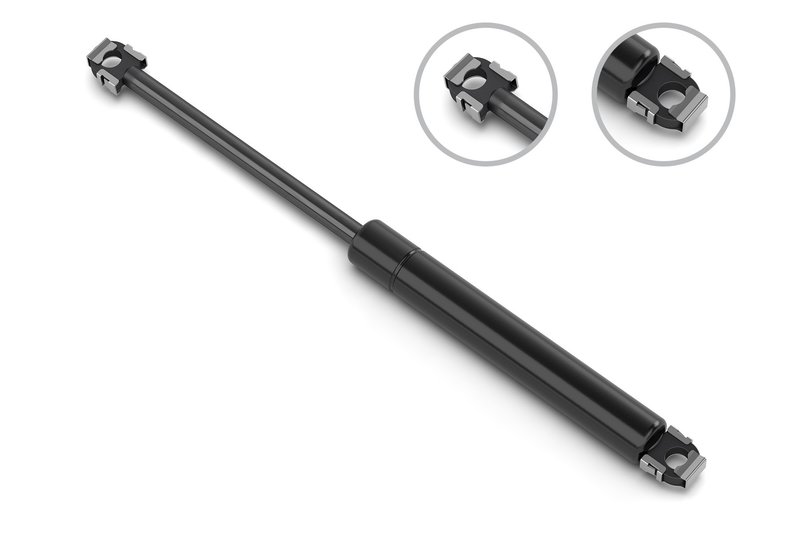

Stabilus 5B-029365 Hood Lift Support

Reliable Hood Lift Support for Select GM Vehicles

The Stabilus 5B-029365 Hood Lift Support is engineered to provide consistent and smooth hood operation for various Buick, Cadillac, Chevrolet, Oldsmobile, and Pontiac models. Designed to meet precise specifications, this hood lift support ensures safe and controlled hood lifting and holding.

• Compatible with Buick, Cadillac, Chevrolet, Oldsmobile, and Pontiac models including Camaro, Eldorado, Firebird, Riviera, Seville, and Toronado
• Compressed length: 197 mm (7.756 inches)
• Extended length: 324 mm (12.756 inches)
• Rod diameter: 10 mm (0.394 inches)
• Tube diameter: 22 mm
• Force rating: 681 N (153 lbs)
• Rod connection type: Metal blade with retaining clip

Technical Specifications and Design Details

This hood lift support features a robust 10 mm rod diameter and a 22 mm tube diameter, providing the necessary strength and durability for reliable hood support. The compressed length measures 197 mm (7.756 inches), extending up to 324 mm (12.756 inches) to accommodate the hood’s full range of motion. With a force rating of 681 Newtons (153 pounds), it offers sufficient lift power for smooth hood operation. The metal blade rod connection with retaining clip ensures secure attachment and long-lasting performance.

Compatible Vehicles and Applications

The Stabilus 5B-029365 is specifically designed for use with select GM vehicles, including Buick, Cadillac, Chevrolet, Oldsmobile, and Pontiac. It fits models such as the Camaro, Eldorado, Firebird, Riviera, Seville, and Toronado. This part is ideal for owners seeking a direct replacement hood lift support that matches original equipment specifications.

• Supports smooth hood lifting and holding
• Replaces worn or failing hood lift supports
• Eliminates hood slamming or sudden drops
• Restores proper hood alignment and ease of use
• Prevents damage caused by unstable hood positioning

Installation Notes and Tips

Installation of the Stabilus 5B-029365 hood lift support requires basic mechanical skills and common hand tools. Ensure the hood is securely propped open before removing the old lift support. The metal blade rod connection with retaining clip allows for straightforward attachment to the hood and vehicle frame. Verify the correct orientation and secure all clips firmly to prevent accidental detachment during operation.

Quality Assurance and Warranty

Manufactured by Stabilus, a recognized name in automotive gas springs and lift supports, this hood lift support meets stringent quality standards. While specific warranty details are not provided, Stabilus products typically undergo rigorous testing to ensure durability and reliable performance under normal operating conditions.
