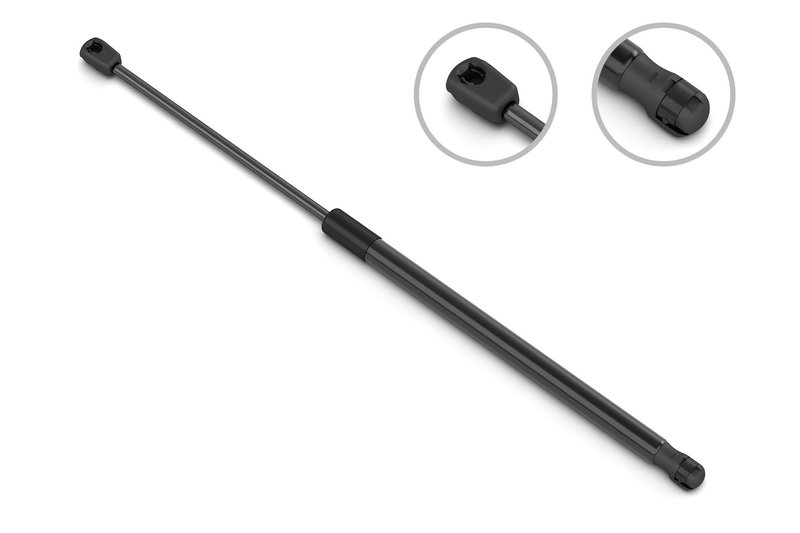

Stabilus 5B-100659 Hood Lift Support

Overview of Stabilus Hood Lift Support 5B-100659

The Stabilus hood lift support 5B-100659 is designed specifically for Hyundai Sonata models, providing reliable and consistent hood support. Engineered to precise specifications, this hood lift support ensures smooth operation and secure hood positioning.

• Compatible with Hyundai Sonata vehicles
• Compressed length: 233.5 mm (9.193 inches)
• Extended length: 373 mm (14.685 inches)
• Rod diameter: 8 mm (0.315 inches)
• Tube diameter: 18 mm
• Force rating: 320 N (72 lbs)
• Rod connection and shaft connection use durable plastic sockets

Technical Specifications and Features

The Stabilus 5B-100659 hood lift support features a rod diameter of 8 mm and a tube diameter of 18 mm, providing the necessary strength and stability for hood operation. Its compressed length measures 233.5 mm (9.193 inches), while the extended length reaches 373 mm (14.685 inches), allowing for optimal hood lift and support range. The force exerted by this gas spring is 320 Newtons (72 pounds), ensuring smooth and controlled hood movement. Both the rod and shaft connections utilize plastic sockets, designed for secure attachment and durability under normal operating conditions.

Application and Compatibility

This hood lift support is compatible with Hyundai Sonata models, engineered to meet the specific requirements of this vehicle's hood mechanism. The part number 5B-100659 corresponds directly to this application, ensuring proper fitment and function. It is not intended for use with agricultural equipment, heavy trucks, motorcycles, or marine vehicles.

• Supports hood opening and closing on Hyundai Sonata
• Replaces worn or failing hood lift supports
• Prevents hood from slamming or falling unexpectedly
• Maintains hood position during maintenance or inspection
• Improves safety and convenience when accessing engine bay

Installation Notes and Tips

Installation of the Stabilus 5B-100659 hood lift support requires basic mechanical skills and standard hand tools. Before installation, ensure the vehicle hood is securely propped open or supported. Remove the old lift support by detaching the plastic socket connections at both rod and shaft ends. Align the new lift support and snap the plastic sockets into place, verifying secure attachment. Test the hood operation to confirm smooth movement and proper support. No additional hardware kit is included with this part.

Quality Assurance and Warranty

Stabilus is a recognized manufacturer of gas springs and lift supports, known for consistent quality and durability. This hood lift support undergoes rigorous testing to meet OEM standards for performance and safety. While specific warranty details are not provided here, Stabilus products typically come with manufacturer-backed warranties covering defects in materials and workmanship. Refer to official Stabilus documentation for exact warranty terms.
