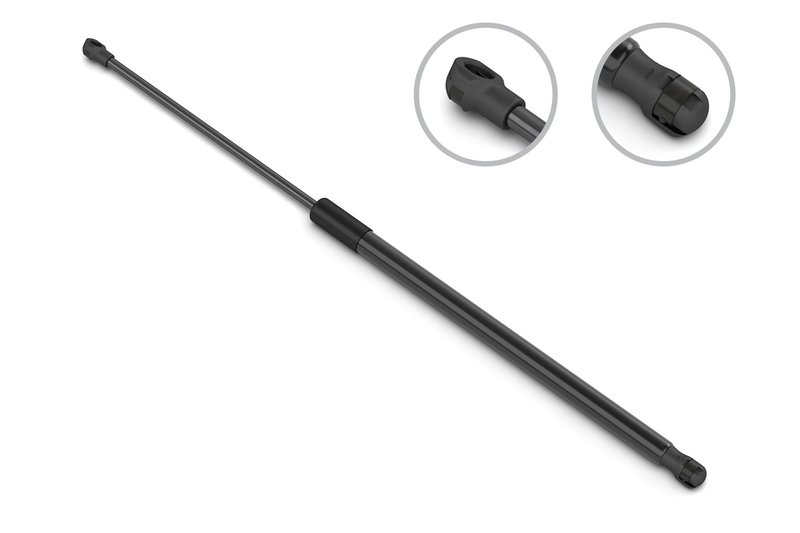

Stabilus 5B-138654 Deck Lid Lift Support

Stabilus 5B-138654 Gas Spring for Volkswagen Applications

The Stabilus 5B-138654 gas spring is built for specific Volkswagen hatchback and sedan applications that need controlled lift and support. With a 710 N (160 lb) force rating, 299 mm extended length, and 233 mm compressed length, it is sized for direct replacement use on select Bora, Jetta, and Golf models.

Key Features

• Brand: Stabilus
• Part number: 5B-138654
• Force rating: 710 N / 160 lb
• Extended length: 299 mm (11.772 in)
• Compressed length: 233 mm (9.173 in)
• Rod diameter: 8 mm (0.315 in)
• Tube diameter: 19 mm (0.748 in)
• Plastic socket rod and tube connections
• 10 mm rod-end and tube-end attachment diameter

Detailed Description

This Stabilus gas spring is a direct-fit style replacement for select Volkswagen Bora, Volkswagen Jetta, and Volkswagen Golf vehicles. The 5B-138654 uses plastic socket connections at both ends and a 710 N force rating to provide the lift support specified for the listed applications. Its dimensions and attachment style make it a practical match for OE-style service on 2005-2010 Volkswagen Bora, 2005-2010 Volkswagen Jetta, and 2007 Volkswagen Golf.

This part cross-references URO 1K5827550C for the same application.

What It Is Used For

• Replacing a worn gas spring that no longer holds position
• Restoring controlled opening and closing action
• Addressing weak, slow, or uneven lift support
• Correcting a hatch, lid, or panel that drops unexpectedly
• Replacing a leaking or loss-of-pressure support strut

Installation Notes and Tips

Verify the original part number, extended length, compressed length, and end fittings before installation. Match the plastic socket connection style and 10 mm attachment diameter to the existing mounting points on the vehicle. For best results, replace the support only after confirming the application against the vehicle’s year, make, and model.

Compatible With 2005-2010 Volkswagen Bora, 2005-2010 Volkswagen Jetta, and 2007 Volkswagen Golf. Search terms: Volkswagen Bora gas spring, Volkswagen Jetta lift support, and Volkswagen Golf replacement strut.

Quality Assurance

Stabilus is a recognized OE supplier of gas springs and lift supports, and this part is built to match the listed dimensions and force rating for the specified Volkswagen applications.
