Home› Body > Trunk Lid and Compartment› Stabilus 5B-155830 Deck Lid Lift Support
Stabilus 5B-155830 Deck Lid Lift SupportOE Quality 60-Day Returns
Part #: 5B-155830

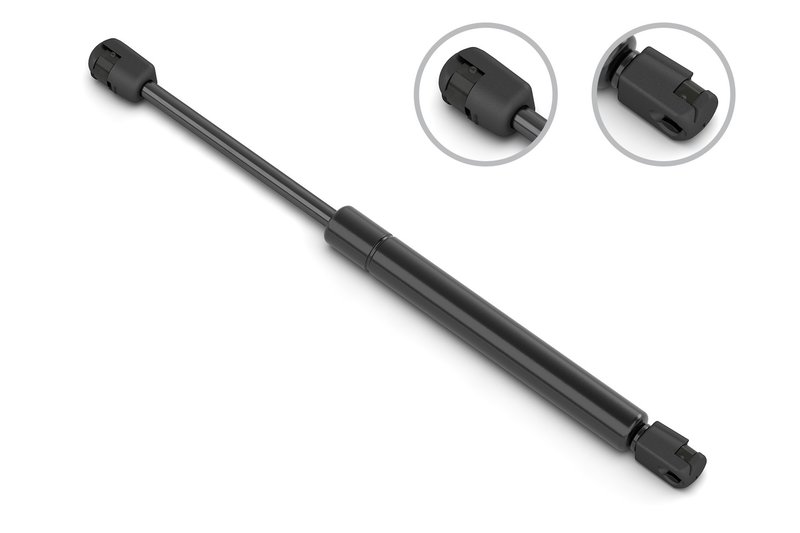

Stabilus 5B-155830 Deck Lid Lift Support

2 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$21.13Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Fitment: Chrysler, 300
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Deck Lid Lift Support options

Stabilus Lift Support for Chrysler 300

This Stabilus lift support is built for the 2009-2010 Chrysler 300 and is identified by part number 5B-155830. With a 430 N (97 lb) force rating, 297.5 mm extended length, and 195 mm compressed length, it is specified for controlled opening and holding performance on the supported panel.

Key Features

  • Fits 2009-2010 Chrysler 300
  • Stabilus part number 5B-155830
  • 430 N / 97 lb force rating
  • 297.5 mm extended length and 195 mm compressed length
  • 8 mm rod diameter and 18 mm tube diameter
  • Plastic socket rod and tube connections

Product Details

Stabilus 5B-155830 is a gas-charged lift support with plastic socket end connections and OE-style dimensions for direct replacement use on the Chrysler 300. The measured body diameter is 0.709 in, with an 8 mm rod end attachment diameter and 10 mm rod end attachment diameter listed in the specifications. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Replacement Reasons

  • Hood, trunk, or liftgate that drops instead of staying open
  • Weak or slow support action during opening
  • Uneven or inconsistent panel hold position
  • Original gas strut losing pressure over time

Installation Notes

Verify the compressed length, extended length, force rating, and socket-style end fittings before installation. Compare the existing support to Stabilus 5B-155830 to confirm the correct application for your Chrysler 300. Inspect the mounting points and socket clips for wear before snapping the new support into place.

Quality Assurance

Stabilus is a recognized OE supplier of gas springs and lift supports, and this replacement is built to match the listed dimensions and connection style for the confirmed 2009-2010 Chrysler 300 fitment.

BrandStabilus
Part Number5B-155830
Y
Y
Body0.709
Compressed Length7.677
Compressed Length195
Extended Length11.713
Extended Length297.5
Force (N)430
Force Lbs97
Hardware KitNO
Rod ConnectionPLASTIC SOCKET
Rod Dia (IN)0.315
Rod Diameter8
Rod End Attachment Dia (IN)0.394
Rod End Attachment Dia (MM)10
Shaft0.315
Shaft ConnectionPLASTIC SOCKET
Tube ConnectionPLASTIC SOCKET
Tube Dia (IN)0.709
Tube Diameter18
Tube End Attach Dia (IN)0.315
Tube End Attach Dia (mm)8

This part fits 2 vehicles. Search below:

YearMakeModelPositionNotes
2010Chrysler300N/A
2009Chrysler300N/A

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
