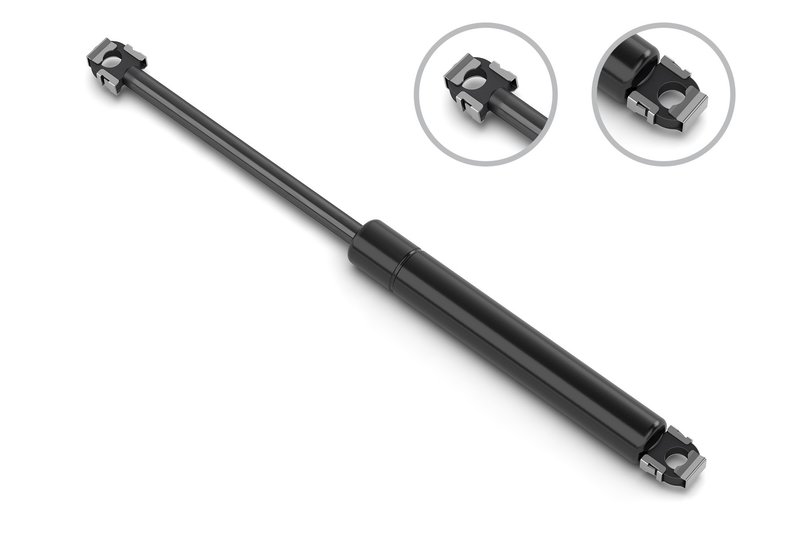

Stabilus 5B-1575BV Deck Lid Lift Support

Overview of Stabilus 5B-1575BV Gas Spring for BMW Models

The Stabilus 5B-1575BV gas spring is designed specifically for select BMW vehicles, including the 735i, 735iL, 740i, 740iL, and 750iL models. Engineered to provide reliable support and smooth operation, this gas spring offers precise dimensions and force specifications to meet OEM requirements.

• Compressed length: 159.5 mm (6.28 inches)
• Extended length: 256.5 mm (10.098 inches)
• Rod diameter: 8 mm (0.315 inches)
• Tube diameter: 18 mm
• Force: 490 Newtons (110 lbs)
• Rod connection: Metal blade with retaining clip
• Compatible with BMW 735i, 735iL, 740i, 740iL, and 750iL

Technical Details and Specifications

This Stabilus gas spring features a compressed length of 159.5 mm and extends to 256.5 mm, providing the necessary range of motion for applications in BMW sedans. The rod diameter measures 8 mm, paired with an 18 mm tube diameter, ensuring durability and consistent performance. The force rating of 490 Newtons (110 lbs) delivers adequate support for components requiring controlled lifting or dampening. The rod end attachment uses a metal blade with a retaining clip, facilitating secure and stable installation.

Applications and Problem Solving

This gas spring is suitable for use in various lifting and support functions within the specified BMW models. It addresses common issues such as:

• Difficulty in smoothly opening or closing trunk lids or hoods
• Inconsistent or weak support during component movement
• Wear or failure of original gas springs causing instability
• Noise or jerky motion during operation
• Need for precise fitment in BMW 735i, 735iL, 740i, 740iL, and 750iL vehicles

Installation Notes and Tips

When installing the Stabilus 5B-1575BV gas spring, ensure the metal blade with retaining clip is securely fastened to the mounting points. Verify the orientation matches the original equipment to maintain proper function. It is recommended to replace gas springs in pairs to ensure balanced support and consistent performance. Use appropriate tools to avoid damage to the rod or tube during installation.

Quality Assurance and Warranty

Stabilus is a recognized manufacturer of gas springs with a focus on quality and reliability. The 5B-1575BV part is manufactured to meet strict OEM standards for fitment and performance in BMW vehicles. While specific warranty details may vary, Stabilus products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or authorized sources for exact warranty terms.
