OE Quality
60-Day Returns

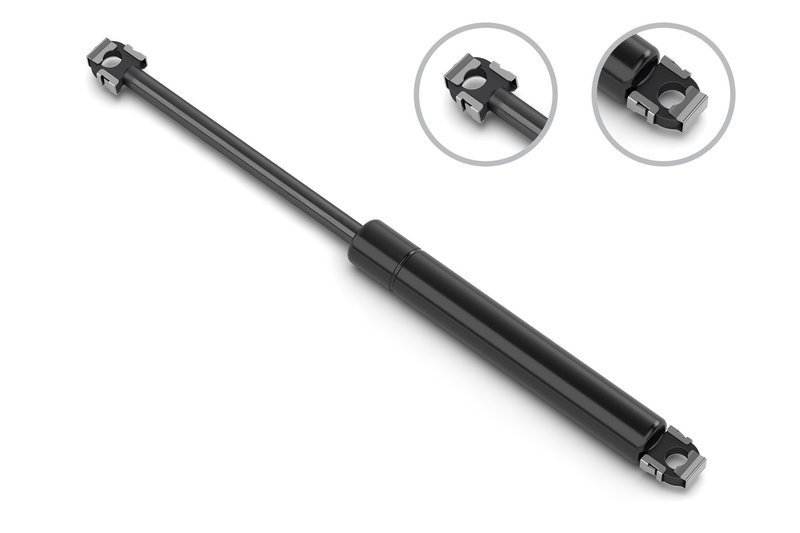

Stabilus 5B-174271 Hood Lift Support
Overview of Stabilus Hood Lift Support 5B-174271
The Stabilus Hood Lift Support part number 5B-174271 is designed specifically for Lincoln Continental and Town Car models. This hood lift support provides reliable assistance in lifting and holding the hood securely in place, ensuring safe and convenient engine access.
- Compatible with Lincoln Continental and Town Car
- Compressed length: 153.5 mm (6.043 inches)
- Extended length: 232.5 mm (9.154 inches)
- Rod diameter: 10 mm (0.394 inches)
- Tube diameter: 22 mm
- Force: 523 N (118 lbs)
- Rod connection: Metal blade with retaining clip
- No hardware kit included
Technical Details and Specifications
This hood lift support features a compressed length of 153.5 mm and an extended length of 232.5 mm, providing optimal range for hood operation on Lincoln Continental and Town Car vehicles. The rod diameter measures 10 mm, while the tube diameter is 22 mm, ensuring a sturdy and durable construction. The force rating of 523 Newtons (118 pounds) offers sufficient lifting power to hold the hood securely during maintenance or inspection. The rod end attachment uses a metal blade with a retaining clip for secure and reliable connection.
Application and Problem Solving
- Replaces worn or weak hood lift supports on Lincoln Continental and Town Car
- Prevents hood from unexpectedly closing during engine access
- Eliminates difficulty in lifting heavy hoods
- Restores smooth and controlled hood operation
- Improves safety during vehicle maintenance
Installation Notes and Tips
Installation of the Stabilus 5B-174271 hood lift support requires no additional hardware as it is designed to fit directly onto the existing mounting points of compatible Lincoln Continental and Town Car models. Ensure the retaining clip on the metal blade rod connection is securely fastened to prevent accidental detachment. It is recommended to replace lift supports in pairs to maintain balanced hood operation.
Quality Assurance and Warranty
Stabilus is a recognized manufacturer of automotive lift supports, known for precision engineering and durability. While this product does not include a hardware kit, it meets OEM specifications for fit and function. Please consult the manufacturer or distributor for warranty details specific to part number 5B-174271.
| Brand | Stabilus |
| Part Number | 5B-174271 |
| Y | |
| Y | |
| Body | 0.866 |
| Compressed Length | 6.043 |
| Compressed Length | 153.5 |
| Extended Length | 9.154 |
| Extended Length | 232.5 |
| Force (N) | 523 |
| Force Lbs | 118 |
| Hardware Kit | NO |
| Rod Connection | METAL BLADE WITH RETAINING CLIP |
| Rod Dia (IN) | 0.394 |
| Rod Diameter | 10 |
| Rod End Attachment Dia (IN) | 0.38 |
| Rod End Attachment Dia (MM) | 9.65 |
| Shaft | 0.394 |
| Shaft Connection | METAL BLADE WITH RETAINING CLIP |
| Tube Connection | METAL BLADE WITH RETAINING CLIP |
| Tube Dia (IN) | 0.866 |
| Tube Diameter | 22 |
| Tube End Attach Dia (IN) | 0.38 |
| Tube End Attach Dia (mm) | 9.65 |
This part fits 5 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1989 | Lincoln | Town Car | N/A | |
| 1988 | Lincoln | Town Car | N/A | |
| 1987 | Lincoln | Town Car | N/A | |
| 1986 | Lincoln | Town Car | N/A | w/ Aluminum Hood |
| 1980 | Lincoln | Continental | N/A | w/ Aluminum Hood |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
